Loewe Individual COMP 46 FHD+ 100 Serviceanleitung Seite 23

Steckerbelegung / Pin description Signalboard
W2060
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
W2061
1
2
3
W2400
USB
Downloaded from www.Manualslib.com
LVDS P2_TX3+
LVDS P2_TX3-
GND
LVDS P2_TXCLK+
LVDS P2_TXCLK-
GND
LVDS P2_TX2+
LVDS P2_TX2-
GND
LVDS P2_TX1+
LVDS P2_TX1-
GND
LVDS P2_TX0+
LVDS P2_TX0-
GND
GND
GND
GND
GND
GND
12V
12V
12V
12V
12V

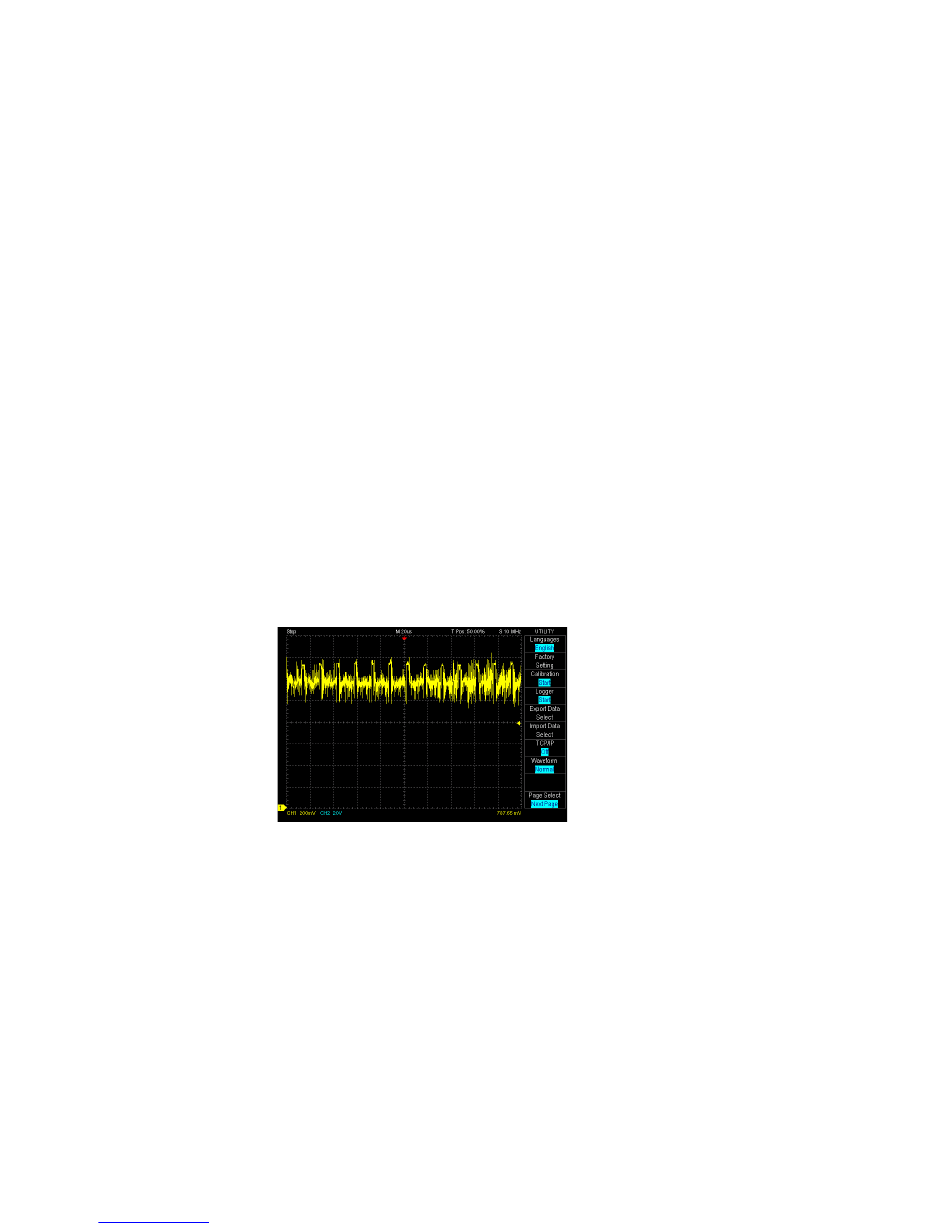

Beispiel für LVDS-Signal
Example for LVDS signal
LED weis / white -
aus / off 0V, an / on 5V
LED grün / green -
aus / off 0V, an / on 5V
LED rot / red -
aus / off 0V, an / on 5V
manuals search engine
26 n.c.
27 n.c.
28 n.c.
29 n.c.
30 n.c.
31 n.c.
32 n.c.
33 n.c.
34 n.c.
35 n.c.
36 n.c.
37 GND
38 LVDS P1_TX3+
39 LVDS P1_TX3-
40 GND
41 LVDS P1_TXCLK+
42 LVDS P1_TXCLK-
43 GND
44 LVDS P1_TX2+
45 LVDS P1_TX2-
46 GND
47 LVDS P1_TX1+
48 LVDS P1_TX1-
49 GND
50 LVDS P1_TX0+
51 LVDS P1_TX0-
23
