C-2
TLR6019 x 4
1.0mm
TLR6019 x 2
2.0mm
TLR6313 x 4
M3 x 0.5 x 5.5mm
TLR5096 x 2
3.5 x 1.0mm
TLR234053 x 2
3 x 40.3mm
TLR234053 x 2
3.5 x 42mm
C-3
Anti-Squat
Long Inserts
0°
0.5°
1.0°
1.5°
2.0°
2.5°
3.0°
Downloaded from
www.Manualslib.com

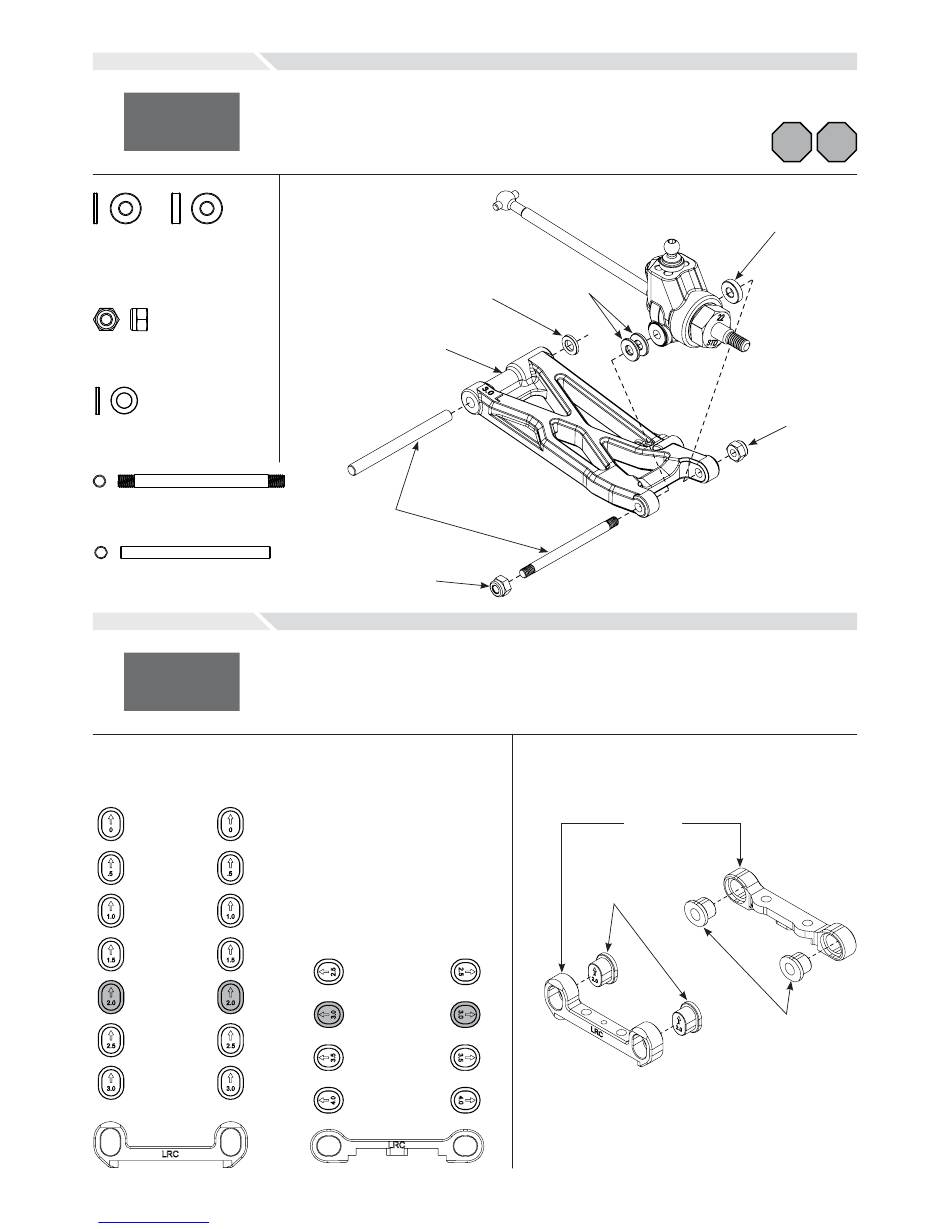

EN Rear Suspension Arm Assembly
DE Zusammenbau des hinteren Querlenkers
FR Assemblage bras de suspension arrière
IT
Assemblaggio braccio di sospensione posteriore
ES Montaje de los trapecios traseros
TLR234047
TLR234053
TLR6313
EN Rear Pivot Assembly
DE Montage Achsschenkelhalter
FR Assemblage fusées arrière
IT
Assemblaggio perno posteriore
ES Montaje del Pivote Trasero
Rear Toe
Short Inserts
2.5°
3.0°
3.5°
4.0°
manuals search engine
TLR6019
TLR5096
1mm
1mm
TLR234054
TLR234055
2.0°
L
L
L
R
R
TLR6019
2mm
TLR6313
TLR234055
3.0°
25
25
