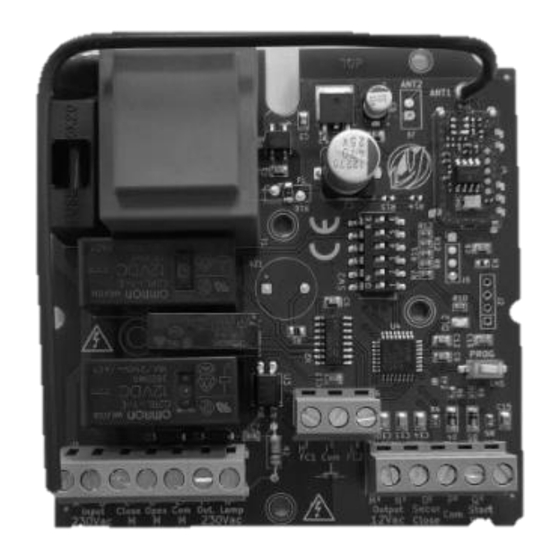

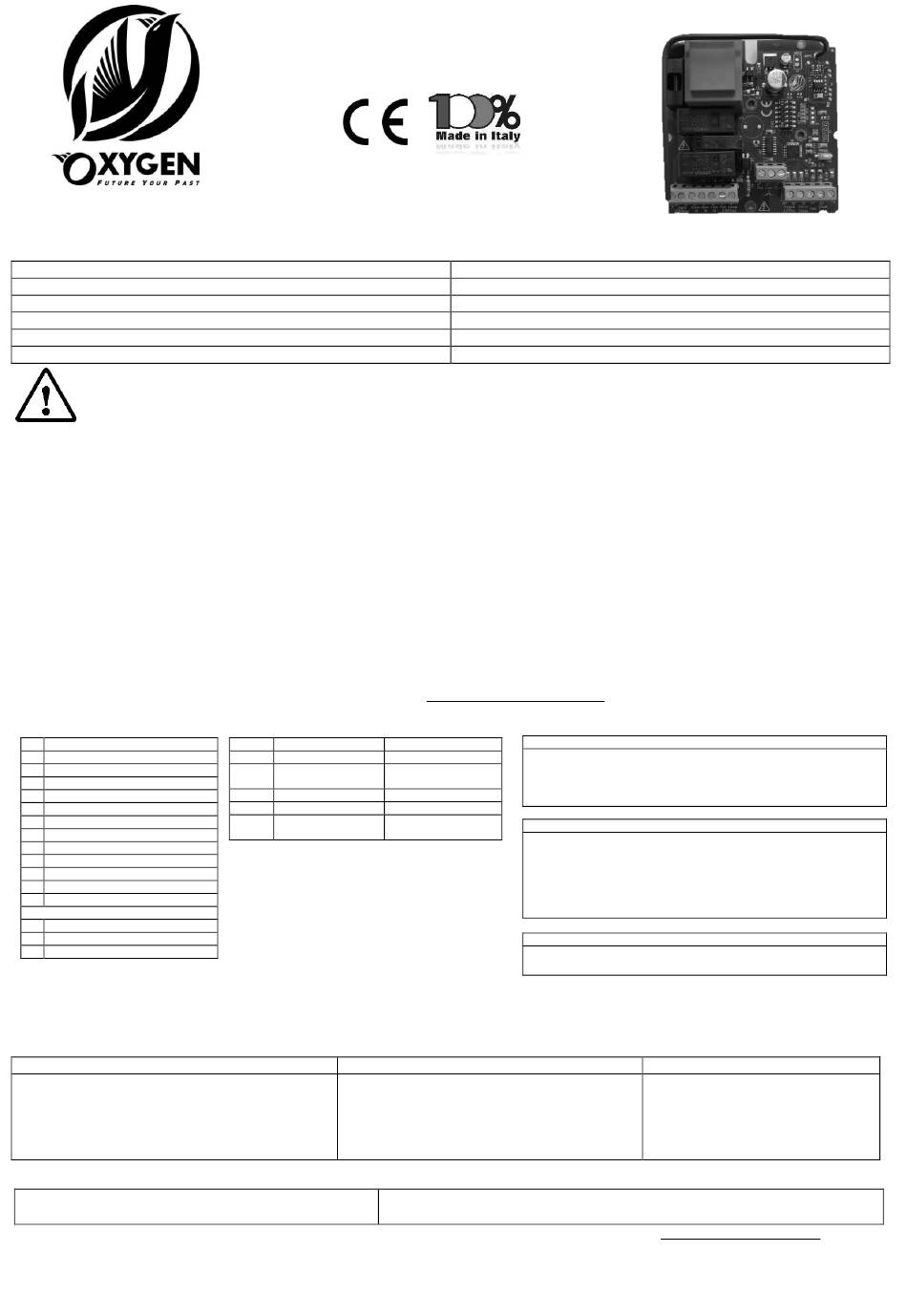

Oxygen URANIA 230V Montage

Control Unit for Sliding Gates and Rolling Shutters. Main Power Supply and Motor protection via fuse 230V~ 5A.
Grey or Blue motor cable = common (input E) – Black and Brown motor wires = opening and closing (inputs C-D)
Power Supply
Motor Power
Closing Time
Code Programming
Frequency
Antenna
This Control Unit is not provided with any kind of device of dissection that refers to the 230Vac Power Supply; please always foresee a suitable
disconnect switch. Before proceeding with product installation, please make sure to disconnect the Power Supply.
1) Do a wire link between O and P clamps in order to disable the photocells input
2) Connect the motor cables: Grey or Blue = common (input E), Brown and Black = opening and closing (inputs C-D). If the motor works backwards, the brown
and black wires must be switched one with the other) (Only Sliding Gates: Capacitor must be connected with the black and brown cables in parallel with the
motor cables)
3) Connect and Supply the 230V Main Power to Terminals A and B
4) Save the remote controls (one or two buttons depending on your needs) as per instructions below
5) Do a time factory reset: - SET DIP 2, 3, 4 to ON
- SET DIP 2, 3, 4 to OFF
6) Optional, Photocells: Place the two Photocells, about 50cm far from the ground, and connect them to: M,N = 12V power supply and O,P = N.C. Contact
Remove the wire link between O and P
7) Optional 230V Flashing or Courtesy light: Connect the light to terminals F and G and choose the desired function with dip switch number 1 (ON or OFF)
8) Optional opening devices (push button, key selector, etc): Connect the device to P and Q
9) Only Sliding gates: connect the Limit Switches to input H, I, L and set DIPs 5 and 6 to OFF.
10) Oxygen Automation's Technical Service is available in case of necessity: service@oxygenautomation.com
CONNECTIONS
N CLAMPS
A 230Vac POWER SUPPLY (PHASE)
B 230Vac POWER SUPPLY (NEUTRAL)
C MOTOR CLOSING
D MOTOR OPENING
E COMMON MOTOR OUTPUT
F 230V FLAHSING LIGHT
G 230V FLASHING LIGHT
M 12V POWER SUPPLY (12VAC)
N 12V POWER SUPPLY (GND)
O PHOTOCELLS INPUT (NC contact)
P COMMON GND
Q START INPUT (NO contact)
ONLY SLIDING GATES
H LIMIT SWITCH 1
I COMMON LIMIT SWITCHES
L LIMIT SWITCH 2
WORKING TIME ADJUSTMENT (DEFAULT 60 S.)
- Close the Gate Or Shutter
- Set Dip Switch N.3 to On
- Press Remote Control Button - Gate Or Shutter Opens
- Wait Until Fully Opened - Press Remote Control Button
- Gate Or Shutter Stops
- Set Dip Switch N.3 = Off
WARNINGS
The main power must be off during the wiring operation. Installation and maintenance must be carried out only by qualified
personnel, comply with the reference legislation.The manufacturer can't be responsible for any damage caused by improper
use. Incorrect installation or incorrect use may be dangerous.All the materials inside the package are dangerous for children.
Oxygen Automation srl, Via Gian Luca Lazzari 5, 40057 Granarolo (Bologna) ITALY +39 051 0402911. Website: www.oxygenautomation.com
URANIA 230V
TECHNICAL MANUAL
TECHNICAL DATA
- Press and hold button PROG for 6 seconds
- factory reset is complete
DIP SWITCHES SETTING
DIP ON
1 CURTESY LIGHT
2 AUTOMATIC CLOSING
(DEFAULT 60SEC.)
3 SETTING MODE
4 DEAD MAN MODE
5-6 ONLY SLIDING GATES:
DISABLE INPUTS (H,I,L)
DIP SWITCH 1 = select the light logic (terminals F and G)
- Courtesy Light = activated for 3 minutes after an opening
- Flashing Light = activated during the motor movement
DIP SWITCH 2 = activates the automatic closing(adjustable
with the "CLOSING DELAY ADJUSTMENT" procedure)
DIP SWITCH 3 = Must be always OFF, except during the
adjustments procedures
DIP SWITCH 4 = OFF = standard step by step mode
(every time you press the button = open-stop-close-stop)
DEAD MAN MODE (need to hold the button to move the
motor): DIP 4 = ON: only in closing (stepbystep in opening)
DIP 2 AND 4 = ON: DEAD MAN MODE active both in
opening and in closing
CLOSING DELAY ADJUSTMENT (DEFAULT 60S.)
- Close the Gate Or Shutter
- Set Dip Switch N.2 And 3 to On
- Press Remote Control Button – Led Turns On
- Wait For The Desired Time - Press Remote Control Button
- Set Dip Switch 3 to Off (Leave Dip Switch N.2 to On)
C E Declaration comply with: 2004/108/EC 2006/95/EC SFT: En 60950:2006 EMC: En301489-3 V1.4.1
INSTALLATION
Notice: device contacts must not be powered (clean contacts)
REMOTE CONTROLS STORE (UP AND DOWN WITH ONE BUTTON)
OFF
Press and release button PROG, LED automatically lights up
FLASHING LIGHT
- Press a button on the remote control, the LED flashes, Remote control
NO AUTOMATIC
CLOSING
is saved
STANDARD MODE
- Wait 10 seconds until the LED automatically turns off.
STANDARD MODE
ONLY SLIDING GATES:
REMOTE CONTROLS STORE (UP AND DOWN WITH TWO DIFFERENT BUTTONS)
ENABLE INPUTS (H,I,L)
Press and release button PROG, LED automatically lights up
- Press one button on the remote control, the LED flashes, Opening
button is saved
- Press a different button on the remote control, the LED flashes,
Closing button saved
- Wait 10 seconds until the LED automatically turns off.
REMOTE CONTROL MEMORY RESET
- Press and hold button PROG for 6 seconds, LED automatically lights up
- Release PROG, wait for 10 seconds, LED goes out and Memory is empty
FURTHER SETTINGS
AVVERTENZE
Durante il cablaggio l'apparecchiatura non deve essere alimentata. L'installazione e/o la manutenzione deve essere eseguita solo da personale qualificato nel rispetto delle
disposizioni legislative vigenti. Il costruttore non può essere considerato responsabile per eventuali danni causati da uso improprio. Un'errata installazione o un uso errato del
prodotto può compromettere la sicurezza dell'impianto. Tutti i materiali presenti nell'imballo non devono essere lasciati alla portata dei bambini in quanto fonti di pericolo.
230Vac
Max 1200W
Max 180s
Self-Learning
433.92 Mhz
integrated
- Release PROG button, than wait for 10 seconds
REMOTE CONTROLS (KEY FOBS)
FACTORY RESET
- Set Dip 2, 3, 4 to On
- Press And Hold Button PROG For 6 Seconds
- Release the button and Wait For 10 Seconds
- Set Dip 2, 3, 4 to Off
- Factory Reset Is Complete
