Roxxy
BL-Outrunner
®
New 14-pole ROXXY® BL D-series outrunner motor, with triple ball-
races. D-series motors feature a third bearing, known as a thin-ring
ballrace, for improved true-running and precision. This prevents the
motor bell distorting under load, and ensures smooth running. These
motors require no gearbox due to their construction. They are highly
efficient, high-torque motors with a wide power band, capable of
driving large propellers.
Typical application
For electric gliders up to about 8000 g
Scale and sport models up to about 4500 g
Aerobatic and 3-D models up to about 3000 g
Installation advice
- Select the fixing screws length so that no damage to the motor
occurs. Use (Loctite 648) thread-lock fluid so that the screws do
not loosen in use. The thread-lock fluid must not get into the ball
bearings.
- Ensure the outrunner bell runs freely.
- Do not use damaged propellers.
- Ensure that neither dirt, water nor metal particles can enter the
inner workings of the motor.
- If the motor runs in the wrong direction, swap two the three power
cables over.
Recommended LiPo batteries
ROXXY
®
Power LiPo-batteries
Specification
D42-65-06 430 Kv No. 31 4999
Voltage
Rotational speed
Load current
Max. load current
Dimensions
Weight approx.
Shaft diameter
1mm
60 mm
www.modellmarkt24.ch
www.modellmarkt24.ch

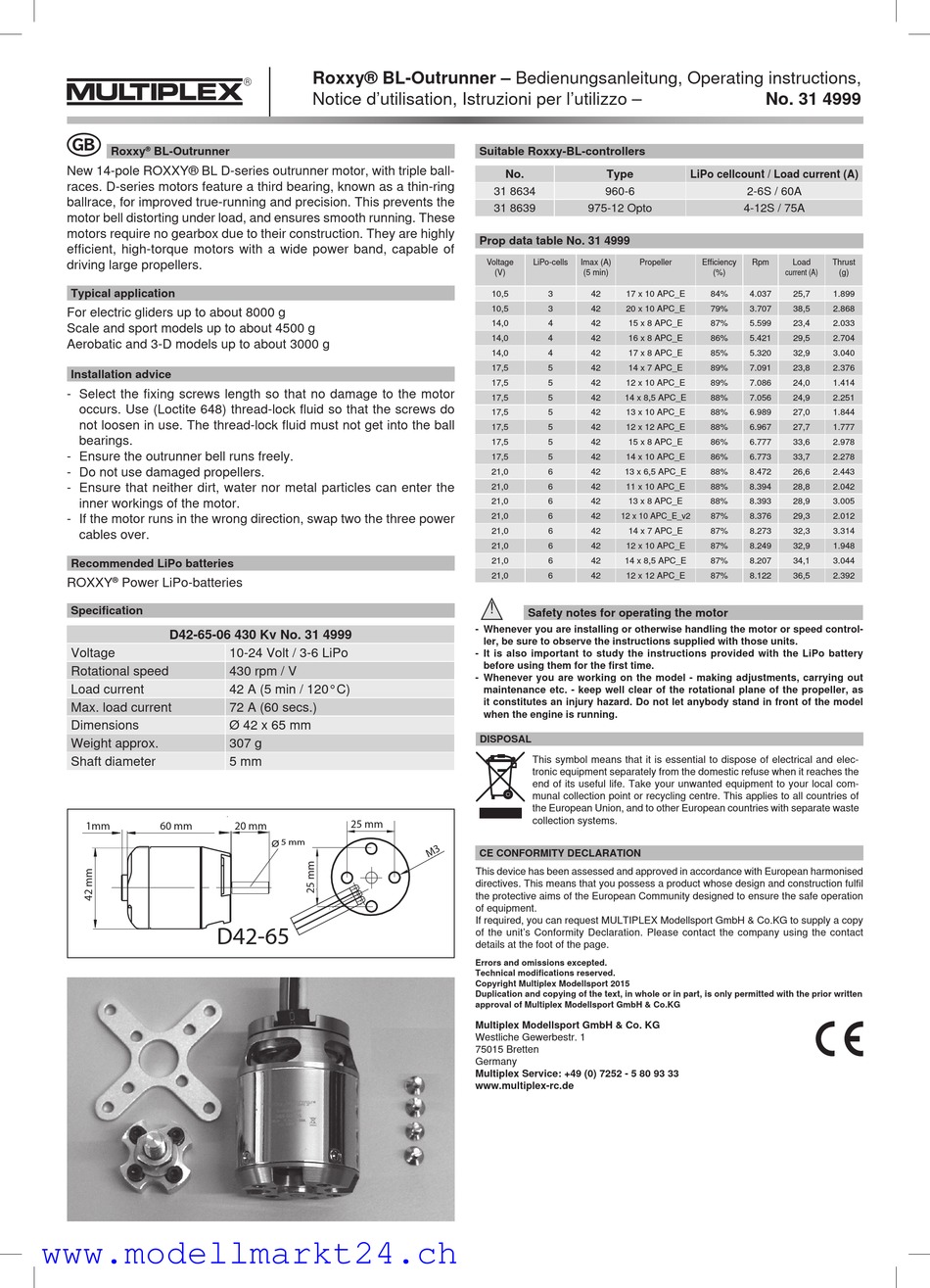

Roxxy® BL-Outrunner – Bedienungsanleitung, Operating instructions,
Notice d'utilisation, Istruzioni per l'utilizzo –
10-24 Volt / 3-6 LiPo
430 rpm / V
42 A (5 min / 120°C)
72 A (60 secs.)
Ø 42 x 65 mm
307 g
5 mm
25 mm
20 mm
5 mm
D42-65
Suitable Roxxy-BL-controllers
No.
Type
31 8634
960-6
31 8639
975-12 Opto
Prop data table No. 31 4999
Voltage
LiPo-cells
Imax (A)
Propeller
(V)
(5 min)
10,5
3
42
17 x 10 APC_E
10,5
3
42
20 x 10 APC_E
14,0
4
42
15 x 8 APC_E
14,0
4
42
16 x 8 APC_E
14,0
4
42
17 x 8 APC_E
17,5
5
42
14 x 7 APC_E
17,5
5
42
12 x 10 APC_E
17,5
5
42
14 x 8,5 APC_E
17,5
5
42
13 x 10 APC_E
17,5
5
42
12 x 12 APC_E
17,5
5
42
15 x 8 APC_E
17,5
5
42
14 x 10 APC_E
21,0
6
42
13 x 6,5 APC_E
21,0
6
42
11 x 10 APC_E
21,0
6
42
13 x 8 APC_E
21,0
6
42
12 x 10 APC_E_v2
21,0
6
42
14 x 7 APC_E
21,0
6
42
12 x 10 APC_E
21,0
6
42
14 x 8,5 APC_E
21,0
6
42
12 x 12 APC_E
!
Safety notes for operating the motor
- Whenever you are installing or otherwise handling the motor or speed control-
ler, be sure to observe the instructions supplied with those units.
- It is also important to study the instructions provided with the LiPo battery
before using them for the first time.
- Whenever you are working on the model - making adjustments, carrying out
maintenance etc. - keep well clear of the rotational plane of the propeller, as
it constitutes an injury hazard. Do not let anybody stand in front of the model
when the engine is running.
DISPOSAL
This symbol means that it is essential to dispose of electrical and elec-
tronic equipment separately from the domestic refuse when it reaches the
end of its useful life. Take your unwanted equipment to your local com-
munal collection point or recycling centre. This applies to all countries of
the European Union, and to other European countries with separate waste
collection systems.
CE CONFORMITY DECLARATION
This device has been assessed and approved in accordance with European harmonised
directives. This means that you possess a product whose design and construction fulfil
the protective aims of the European Community designed to ensure the safe operation
of equipment.
If required, you can request MULTIPLEX Modellsport GmbH & Co.KG to supply a copy
of the unit's Conformity Declaration. Please contact the company using the contact
details at the foot of the page.
Errors and omissions excepted.
Technical modifications reserved.
Copyright Multiplex Modellsport 2015
Duplication and copying of the text, in whole or in part, is only permitted with the prior written
approval of Multiplex Modellsport GmbH & Co.KG
Multiplex Modellsport GmbH & Co. KG
Westliche Gewerbestr. 1
75015 Bretten
Germany
Multiplex Service: +49 (0) 7252 - 5 80 93 33
www.multiplex-rc.de
No. 31 4999
LiPo cellcount / Load current (A)
2-6S / 60A
4-12S / 75A
Efficiency
Rpm
Load
Thrust
(%)
current (A)
(g)
84%
4.037
25,7
1.899
79%
3.707
38,5
2.868
87%
5.599
23,4
2.033
86%
5.421
29,5
2.704
85%
5.320
32,9
3.040
89%
7.091
23,8
2.376
89%
7.086
24,0
1.414
88%
7.056
24,9
2.251
88%
6.989
27,0
1.844
88%
6.967
27,7
1.777
86%
6.777
33,6
2.978
86%
6.773
33,7
2.278
88%
8.472
26,6
2.443
88%
8.394
28,8
2.042
88%
8.393
28,9
3.005
87%
8.376
29,3
2.012
87%
8.273
32,3
3.314
87%
8.249
32,9
1.948
87%
8.207
34,1
3.044
87%
8.122
36,5
2.392
