Quick Installation Instructions
1
Downloaded from www.Manualslib.com
Four quick steps to install and get maximum performance from the Polaris 360:
• Install the Universal Wall Fitting (UWF) with Quick Disconnect and Eyeball Regulators
• Test and adjust water pressure
• Adjust feed hose to fit pool length
• Check for proper wheel RPM (revolutions per minute)
Install the Universal Wall Fitting
Installs in minutes on pools with a dedicated cleaner return line and a threaded 1-1/2" female
pipe fitting.
1. Turn on the filtration pump and flush out the plumbing line.Turn pump off.
2. Remove the UWF from the Quick Disconnect and screw it into the return opening.
3. Turn the Quick Disconnect clockwise into the UWF and pull away to secure.

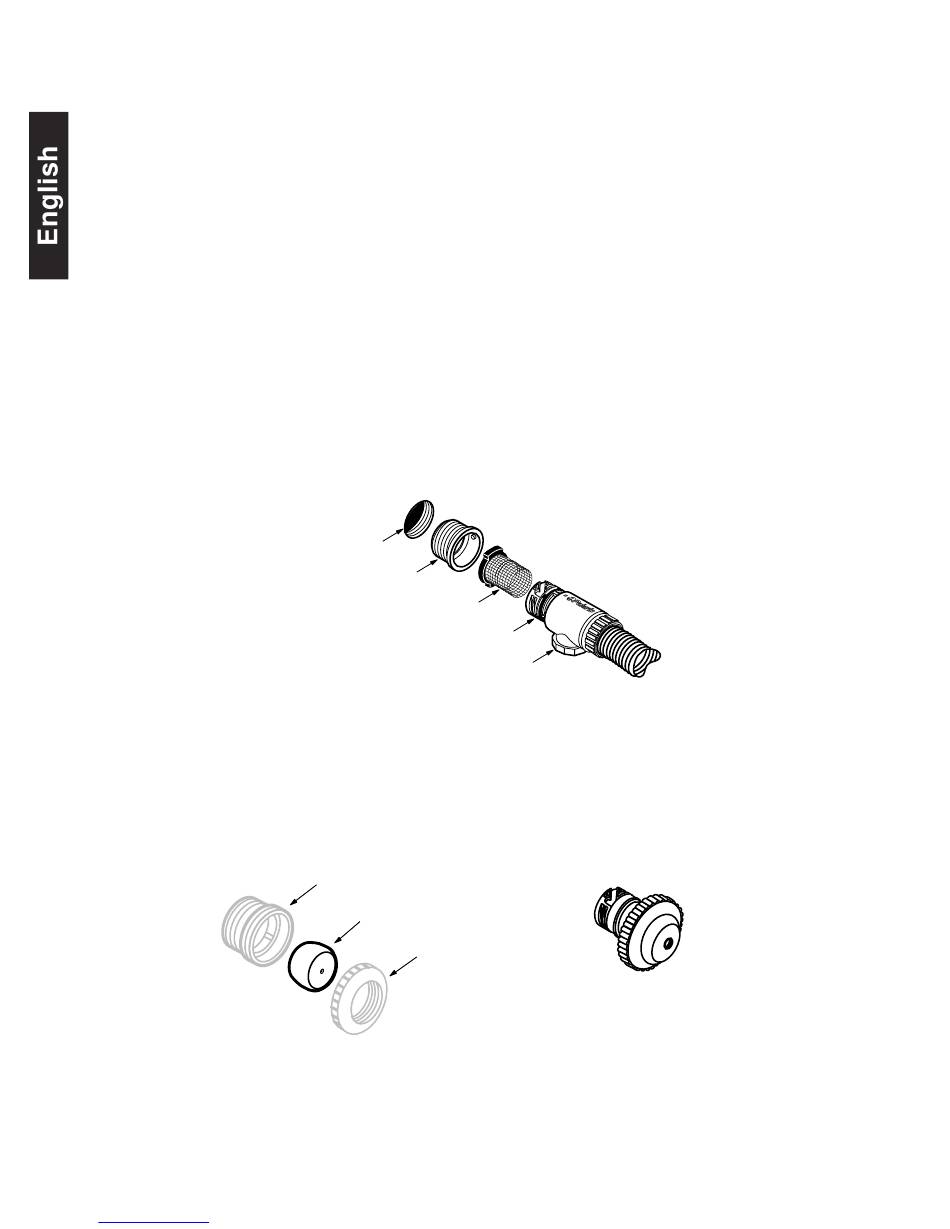

1-1/2" female pipe
fitting in pool wall
Universal Wall
Fitting (UWF)
Install Eyeball Regulators
If the pool has more than one return line,
install the Eyeball Regulators to ensure the
pool's water pressure is high enough to
operate the Polaris 360.
Existing
Eyeball Seat
Eyeball
Regulator
If the Universal Wall Fitting and Eyeball Regulators are successfully installed, SKIP to
Step 2. Otherwise, see Installing Other Pool Connections.
manuals search engine
Filter Screen
Quick
Disconnect
Pressure
Relief Valve
Use the Replacement Eyeball with a Quick
Disconnect fitting to restore proper water
circulation when the Polaris 360 is
removed from the pool.
Existing
Retainer Ring
www.polarispool.com
Replacement
Eyeball with
quick connect
fitting
