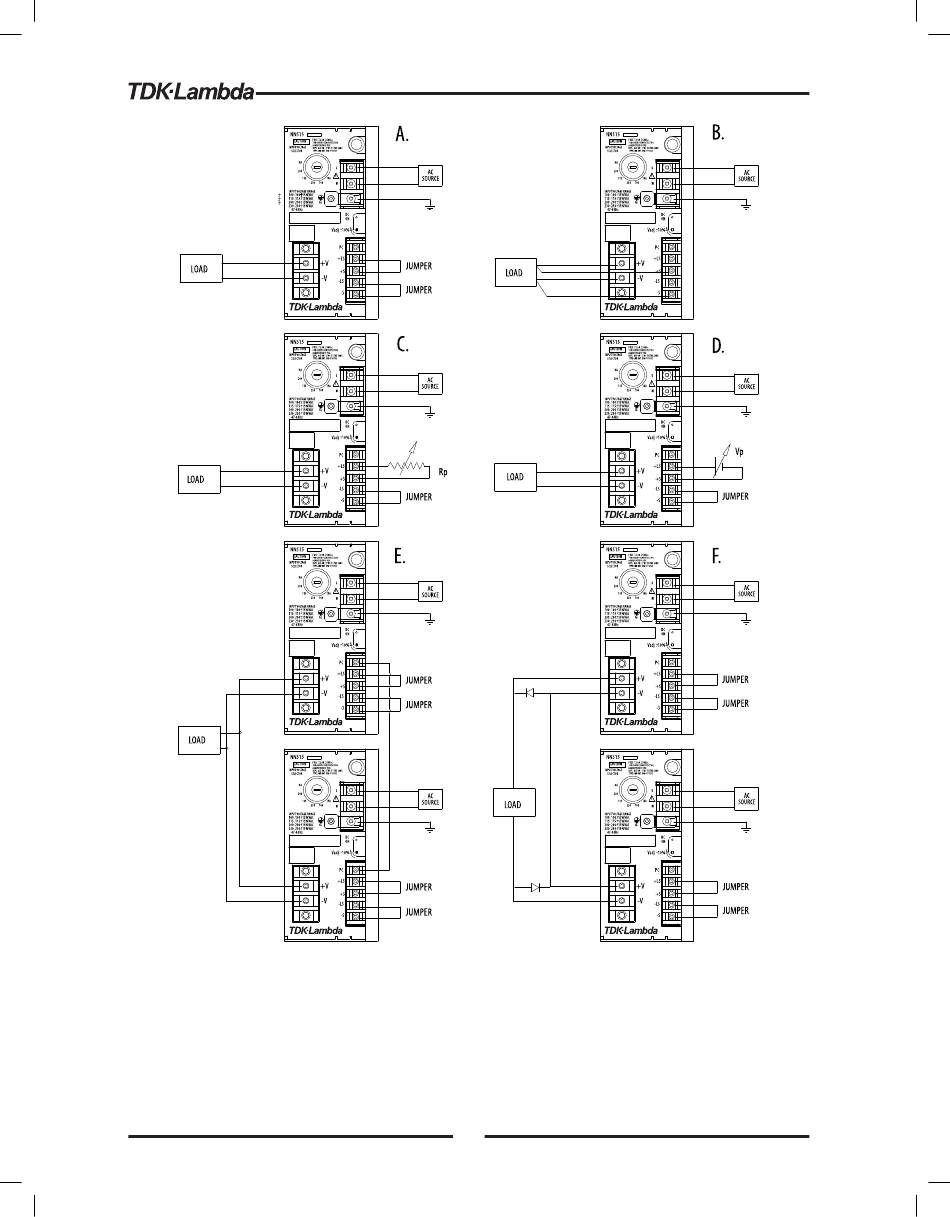

CONNECTIONS DIAGRAM
A. LOCAL SENSING.
B. REMOTE SENSING.
C. RESISTIVE PROGRAMMING (LOCAL SENSE).
D. VOLTAGE PROGRAMMING (LOCAL SENSE).
E. PARALLEL OPERATION WITH CURRENT SHARE (LOCAL SENSE).
F. SERIES OPERATION (LOCAL SENSE) EXTERNAL DIODES RATING: 3A, 50V.
NOTES:
1. NNS15 MODEL IS NOT RECOMMENDED FOR
CONSTANT CURRENT LOADS.
2. MAX. CAPACITIVE LOAD RECOMMENDED:
NNS15-5: 10,000uF NNS15-12: 8,200uF
NNS15-15: 8,200uF NNS15-24: 3,000uF
