ASROCK Z87M Pro4 Handbuch Seite 5

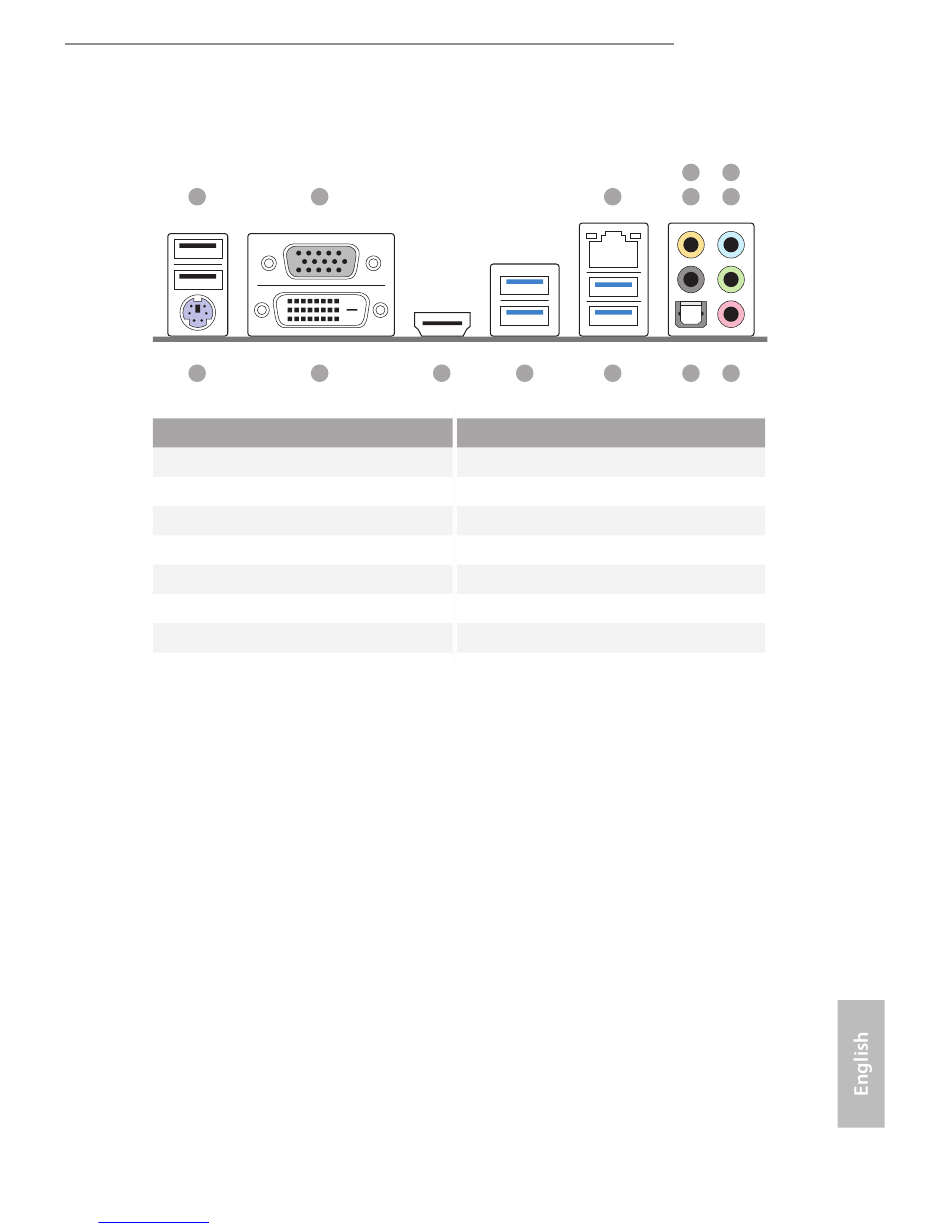

I/O Panel
No. Description
1
2
3
4
5
6
7
Downloaded from www.Manualslib.com
1 2
14 13
USB 2.0 Ports (USB01)
D-Sub Port
LAN RJ-45 Port*
Central / Bass (Orange)
Rear Speaker (Black)
Line In (Light Blue)
Front Speaker (Lime)**
manuals search engine
3
12 11 10
No. Description
8 Microphone (Pink)
9 Optical SPDIF Out Port
10 USB 3.0 Ports (USB_45)
11 USB 3.0 Ports (USB_23)
12 HDMI Port
13 DVI-D Port
14 PS/2 Keyboard Port
Z87M Pro4
4 6
5 7
9 8
3
