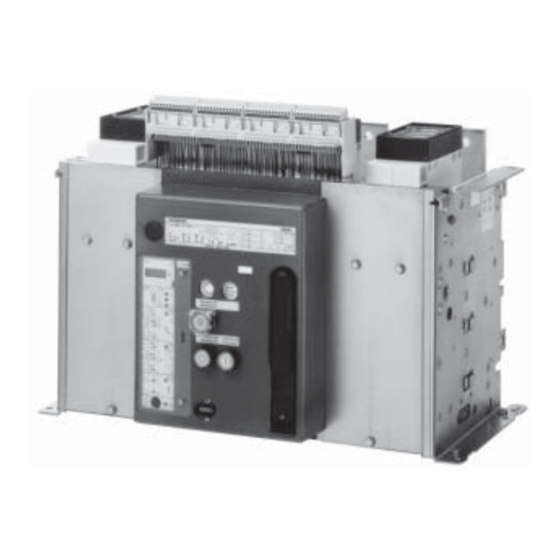

3WN1, 3WS1
BUS Anschlußleitung
BUS Connection Lead
Betriebsanleitung/Operating Instructions
Warnung!
Gefährliche Spannung!
Gefährlicher Federspeicher
Vor Beginn der Arbeiten Gerät spannungsfrei schalten
und gegen Wiedereinschalten sichern.
Nur bei ausgeschaltetem Schalter und entspanntem
Federspeicher arbeiten.
Bei Nichtbeachtung können Tod, schwere Körperver-
letzung oder erheblicher Sachschaden die Folge sein.
Einbau und Montage nur durch Fachpersonal!
Stromlaufplan / Circuit diagram:
SubD-Steckerver-
drahtung -X91 /
SubD plug con-
nector wiring -X91
X6.4
X6.10
-S20
Alle Rechte vorbehalten. All rights reserved.
© Siemens AG 1998
Bestell-Nr./ Order No.: 3ZX1812-3W31-5FN0 / 9239 9944 174
D a t e n v e r a r b e i -
tungskabel SubD9F-
SubD9F, 1 : 1 /
Data processing
c a b l e S u b D 9 F -
SubD9F, 1 : 1
X91.1
.2
.3
.4
.5
.6
.7
.8
.9
Warning!
Hazardous voltage!
Hazardous spring pressure
Before starting work, isolate device and secure against
reclosing! Ensure that the circuit breaker is opened
and the stored-energy mechanism is discharged before
starting work. Non-observance of the safety instructions
and warnings can result in death, severe personal
injury or property damage.
Only qualified personnel may perform installation and
assembly work.
SubD-Steckerverdrahtung / SubD plug connector wiring:
1) Leitung fortlaufend bedruckt mit 6.4 /
Lead continously marked with 6.4
2) Leitung fortlaufend bedruckt mit 6.10 /
Lead continously marked with 6.10
3WX3144-1JA00
2)
1)
