Rear carrier
KAWASAKI ER-6n/f
Item - No.:
4002.021.201 black

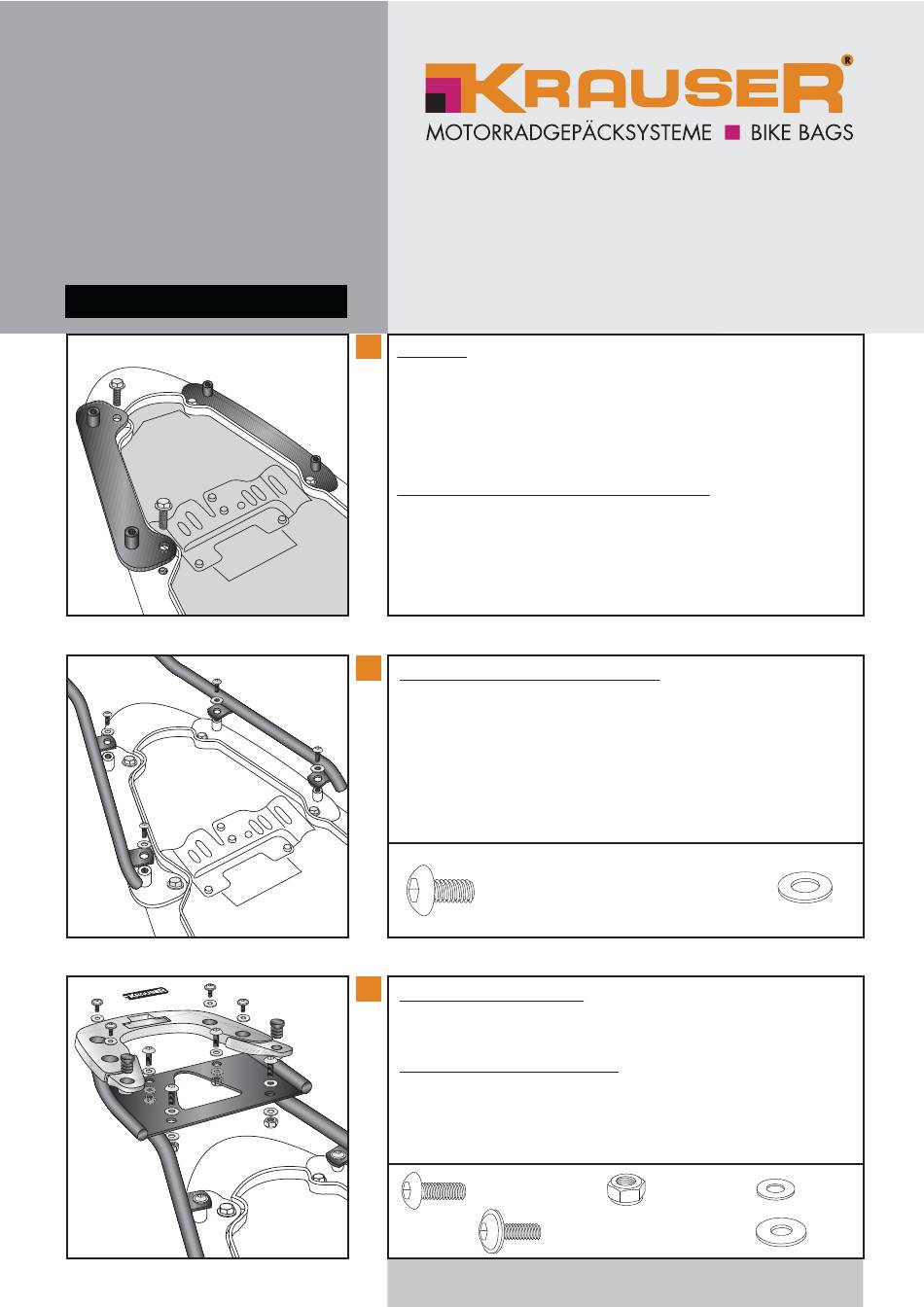

Assembling instructions
1
Preparing:
- Take off the seat and the handrails.
The handrails are not needed any more.
The rear winker remains in original position.
Fastening of the mounting adapter left + right:
Fix mounting adapter as shown in the picture (insert nut at the top)
with original screws.
2
Fastening of the pipe strut left + right:
Fix the pipe struts in the insert nuts of the mounting adapter with
filister head screws M 8 x 16 and washers ø8,4.
(If a side carrier is mounted too, use filister head screws M 8 x 20).
3
Fastening of the rear rack:
on the pipe struts with filister head screws M 6 x 20, washers ø6,4
and self-lock nut M 6.
Fastening of the carrier K-Wing:
Fix the carrier with flange screws M 6 x 20 and body washers
ø6,4 x ø18 mm.
Position the plastik plugs ø16mm in the borings.
each 4x
Ride the future
each 4x
8x
4x 4x
