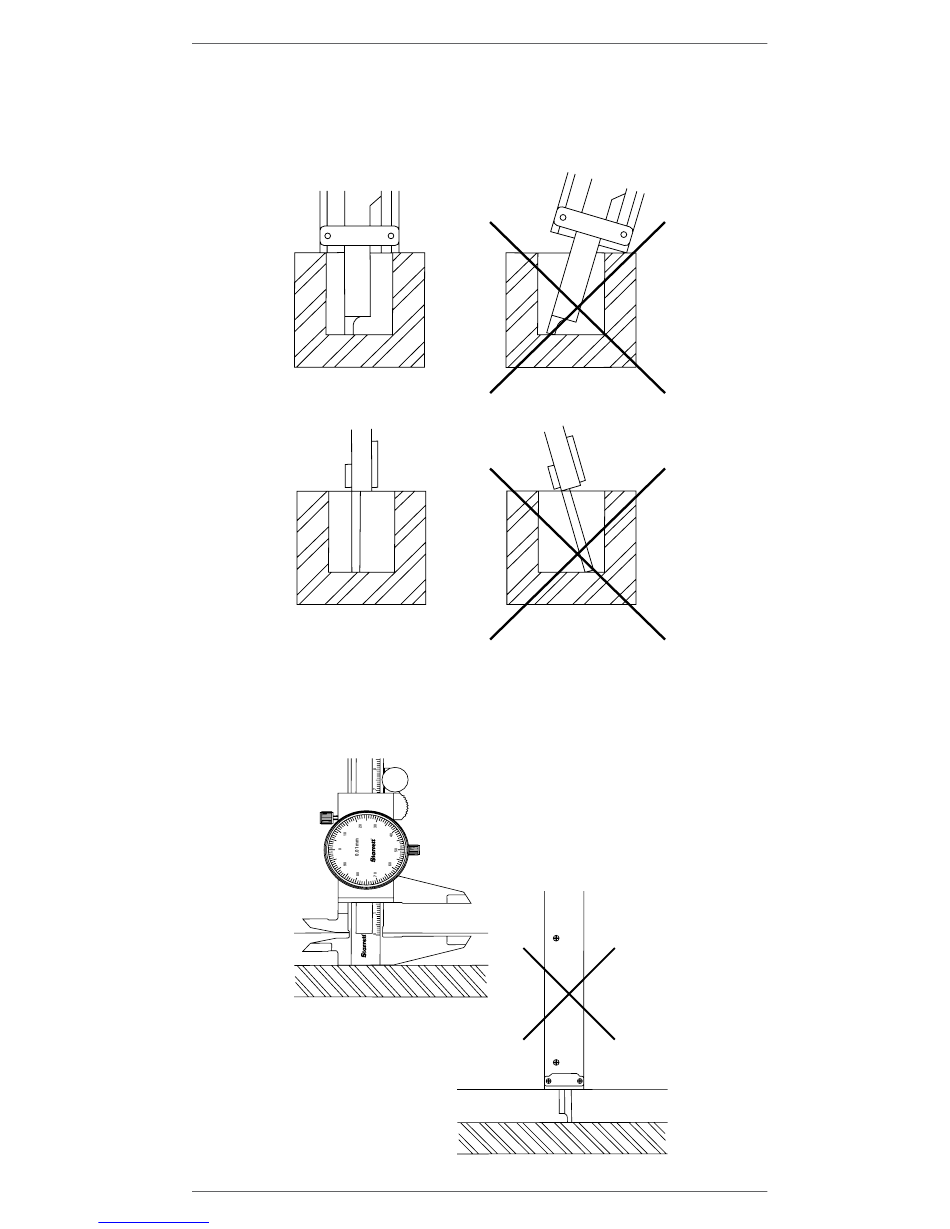

• Depth Measurement: place the depth-measuring rod (3) perpendicular to
the part bottom to be measured (fig. 5).
Fig. 5
• Cam Measurement: open the jaws slightly larger than the width of
the cam, place the scribing face against the bottom of the cam. Move
the scribing reference (11) face to the part surface (fig. 6)
Fig. 6
