GB

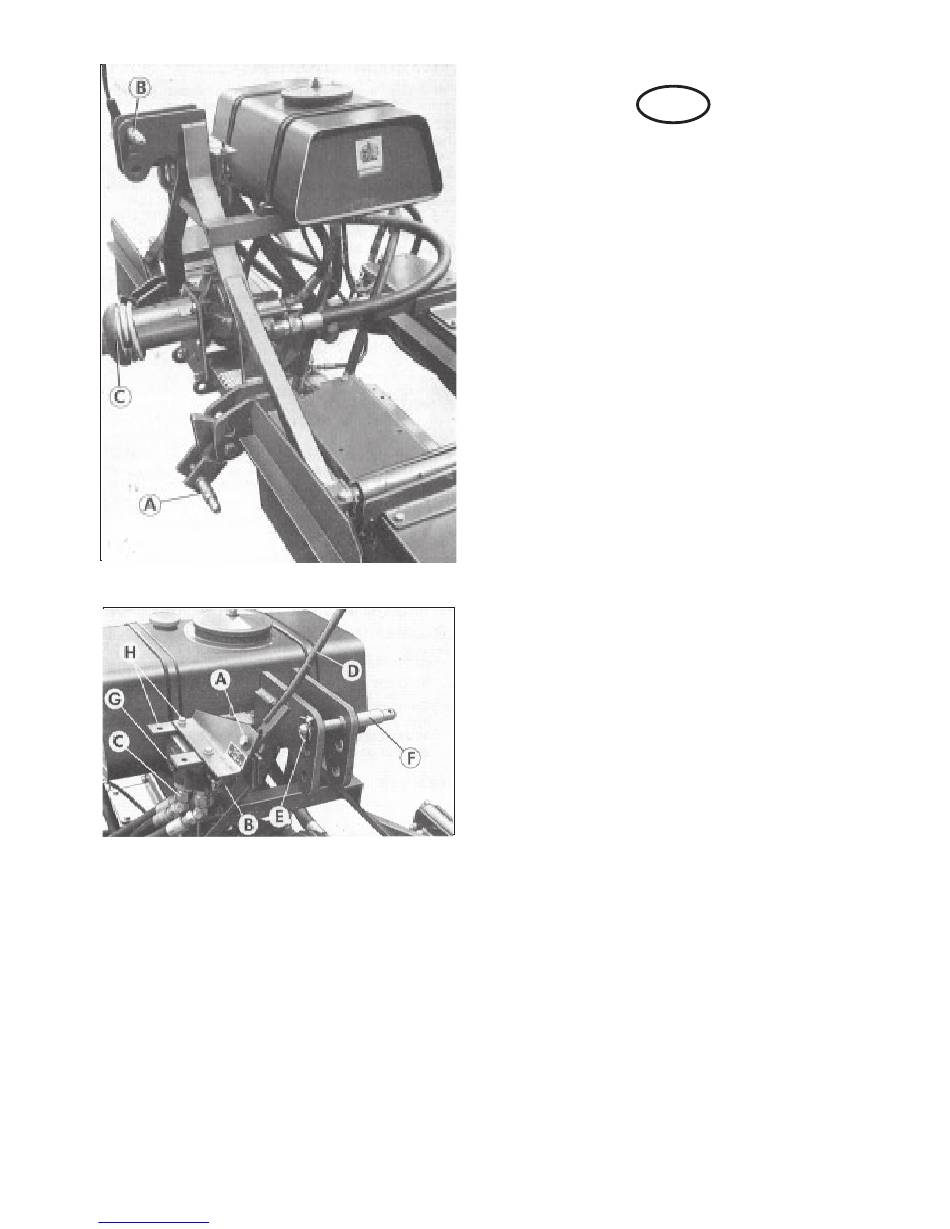

FITTING THE MACHINE TO THE
TRACTOR
(Fig 3)
Lower links
1.
Back the tractor up to the machine.
2.
Stop the tractor engine.
3.
Connect the tractor lower lift arms to the 2-hitch
points (A) on the main crossbeam, using the
lower hole in the hitch plates to fit the
connecting pins and spring clips.
Top link
1.
Connect the tractor top link (B) to the machine.
IMPORTANT: Select the pair of holes in the 'A' frame
which allows the top link to take up as near a
horizontal position as possible.
2.
Fit pin (B) and secure with pin and spring ring.
3.
Extend the top link and remove the stabiliser
pin from the rear of the unit pivot support
plates. Stow this pin in the holes in the lugs at
the front of the main crossbeam and secure
with spring pins.
4.
Shorten the top link until the 'A' frame becomes
vertical. Attach the jubilee clip (supplied) to the
top link up against the end of the turn buckle
and tighten securely in this position.
5.
Connect up P.T.O. shaft (C) to the machine
and tractor.
VALVE MOUNTING POSITION
(Fig. 4)
The valve assembly (G) can be fitted in two positions
(H) to suit various types of tractor.
The position for the valve (G) must always be chosen
to ensure that there is no strain on the hydraulic hoses
and that the hoses do not chafe.
With the machine in both the lift and lowered positions,
check the hose routing to ensure that no chafing
occurs.
Any small adjustments should be carried out by
resetting the hoses at the motors, either at the elbows
or the hose end fittings.
For some tractors, adjustment at the control valve
elbow fittings may also be necessary to prevent
chafing.
