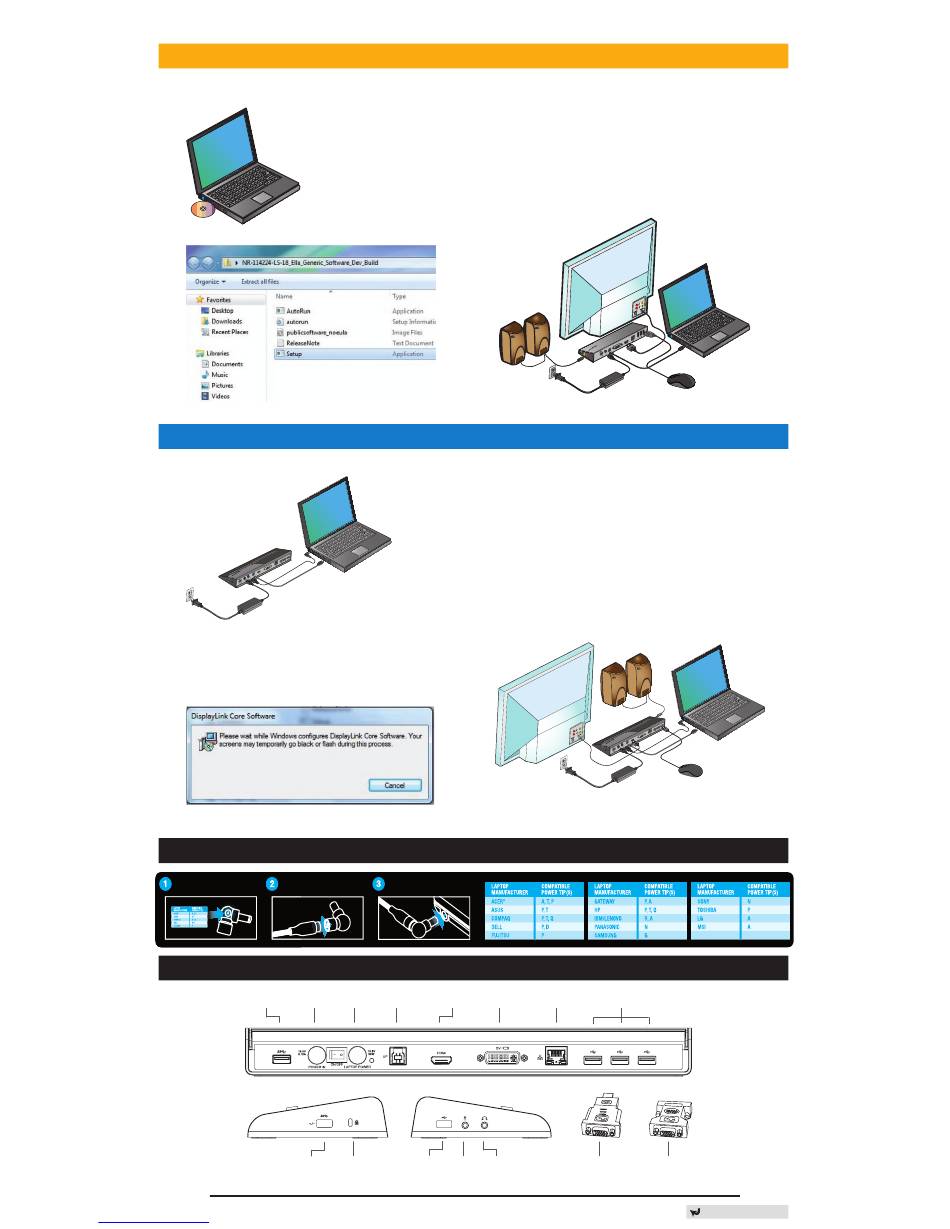

Targus USB 3.0 SUPERSPEED Schnellstartanleitung Seite 4

Locate the correct power tip
(Test fit inlaptop if needed)
Downloaded from www.Manualslib.com
Windows XP/Vista
®
NOTE: DO NOT CONNECT THE DOCKING STATION PRIOR TO INSTALLING THE DISPLAYLINK DRIVER.
1) Install the included Driver CD.
2) Double click on Setup.exe.
Windows 7 / Windows
®
1) Connect the Docking Station to your laptop.
2) Windows will start installing the DisplayLink Driver
automatically.
NOTE: If the driver installation does not automatically
start, disconnect the docking station from your laptop,
insert the Driver CD, and click on the Setup.exe file.
Power Setup
Connect to the power cord
Docking Station Diagram
DC Power
USB 3.0 Port DC Power IN
Out
USB 3.0 Port Lock
w/BC 1.2 (1.5A) Slot
manuals search engine
Setup
®
3) Follow the on-screen instructions until the installation
is complete.
4) Connect the Docking Station and peripherals.
8 Setup
®
3) Follow the on-screen instructions until the installation
is complete.
4) Connect all peripheral devices.
Connect to your laptop
USB to Laptop Gigabit
Port HDMI DVI-I Ethernet
USB 2.0 Port Audio Audio
In Out
4
USB 2.0 Ports
HDMI to DVI-D DVI to VGA
Adapter Adapter
