Tru Vue TVALU Montageanleitung Seite 5

2-2

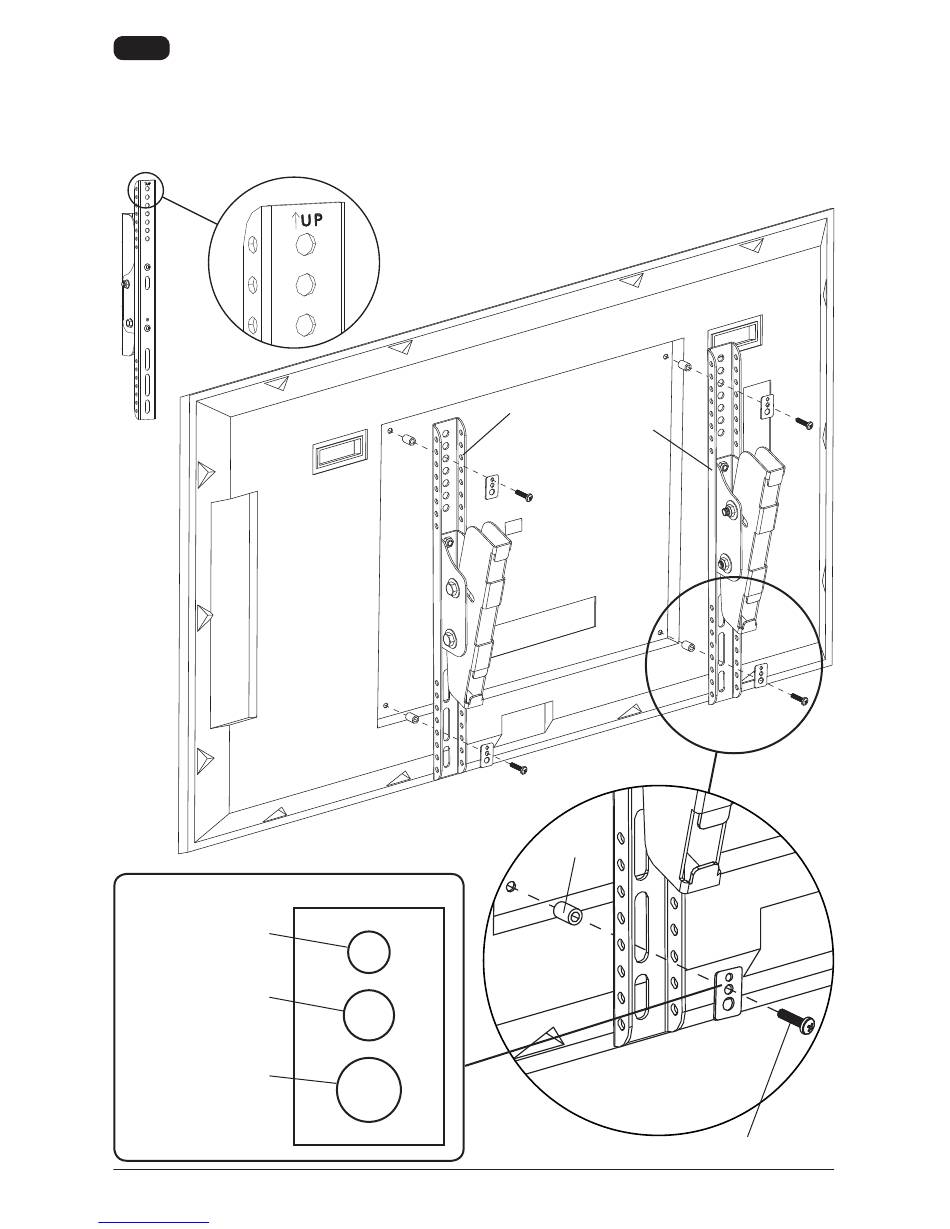

Center brackets (O) vertically on back of screen. Select the, medium (F), large (G) or extra large
(H) screws. Attach brackets to screen using four selected screws, four square washers (I) and four
spacers (M) at the top and bottom of each bracket. Screw must make at least three full turns into the
mounting hole and fi t snug into place. Tighten screws fi rmly. Do not overtighten.
Small hole for
Medium hole for
M5 and M6 screws
Large hole for
Downloaded from www.Manualslib.com
Attaching to screen with recessed back
SQUARE WASHER (I)
M4 screws
M8 screws
manuals search engine
O
M
5 of 28
ISSUED: 09-11-09 SHEET #: 202-9376-8 01-27-11
P
SCREW
