Tru Vue TVALU Montageanleitung Seite 3

1

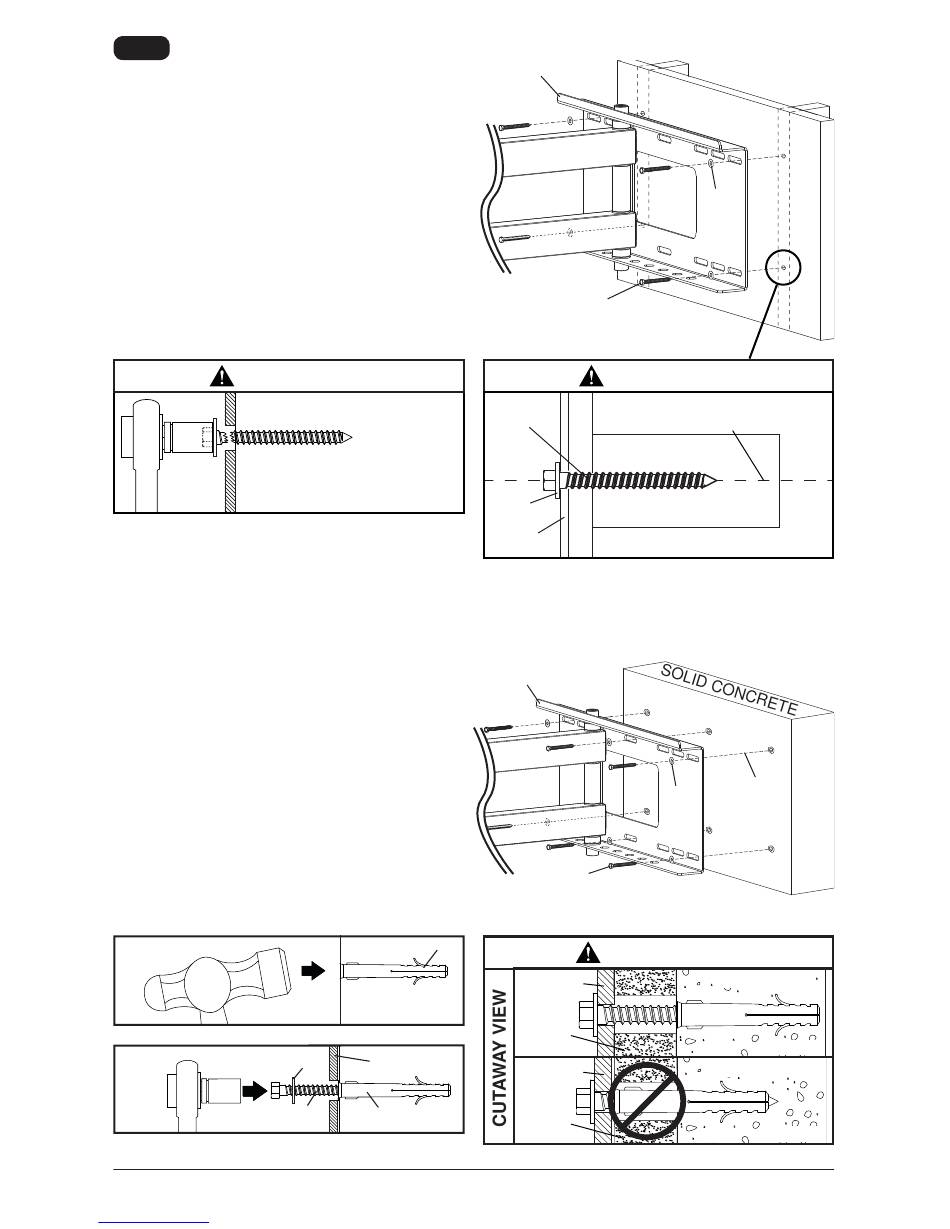

Wood Stud Wall
Use wall plate (N) as a template, make sure it is
level, and mark four mounting holes along the
center lines of the wood studs. Drill four
3/16" (5 mm) dia. holes 3-1/4" (83 mm) deep.
Level wall plate (N) and attach to wall with four
long bolts (J) and four washers (L). Tighten
screws fi rmly. Do not overtighten.
Concrete Wall
Level wall plate (N) and use as a template to
mark six mounting holes. Drill six 3/8" (10 mm)
dia. holes to a minimum depth of 3-1/4" (83 mm).
Insert six anchors (K) into holes and secure
wall plate (N) to wall with six long bolts (J) and
six washers (L). Tighten screws fi rmly. Do not
overtighten.
1
Drill holes and insert anchors (K).
2
Place plate (N) over anchors (K). Secure with long bolts (J)
and washers (L).
Downloaded from www.Manualslib.com
Installing to Wall
WARNING
Do not over tighten screws, or
damage may occur.
concrete
surface
L
J
manuals search engine
N
J
L
N
N
K
wall plate
plaster/
dry wall
N
wall plate
K
plaster/
dry wall
3 of 28
L
J
WARNING
Long bolts in
center of stud.
STUD
TOP CUTAWAY VIEW
L
J
WARNING
CORRECT
INCORRECT
ISSUED: 09-11-09 SHEET #: 202-9376-8 01-27-11
K
concrete
concrete
