Prolux Rolling Code K1940-s01 Originalbetriebsanleitung Seite 8

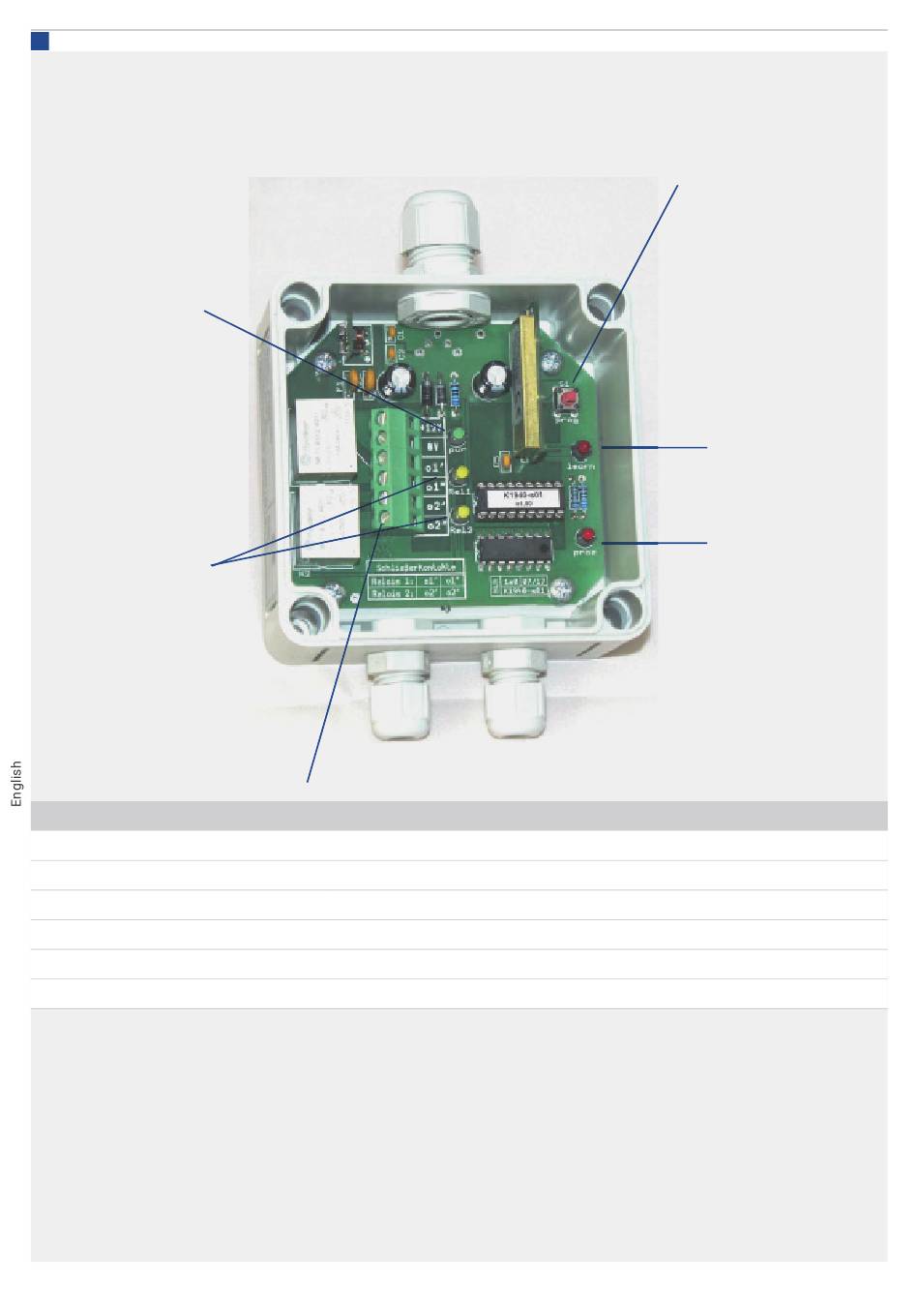

8. Features
LED supply (glows
when power
supply on)
LEDs switching
state (glows when
relay contact is
closed)
Connector block
+ 12V
0V
o1'
o1''
o2'
o2''
The green „pwr-LED" glows permanentally when the device is supplied with voltage.
The red „proz-LED" indicates available radio reception with a short fl ash.
8
Function
positive power supply voltage 12VDC
negative power supply voltage
make contact relay 1
make contact relay 1
make contact relay 2
make contact relay 2
Original instructions - Rolling Code relay receiver
Programming button;
starts teach-in mode
LED teach-in
control
LED radio
reception
