6. Preparation for operation

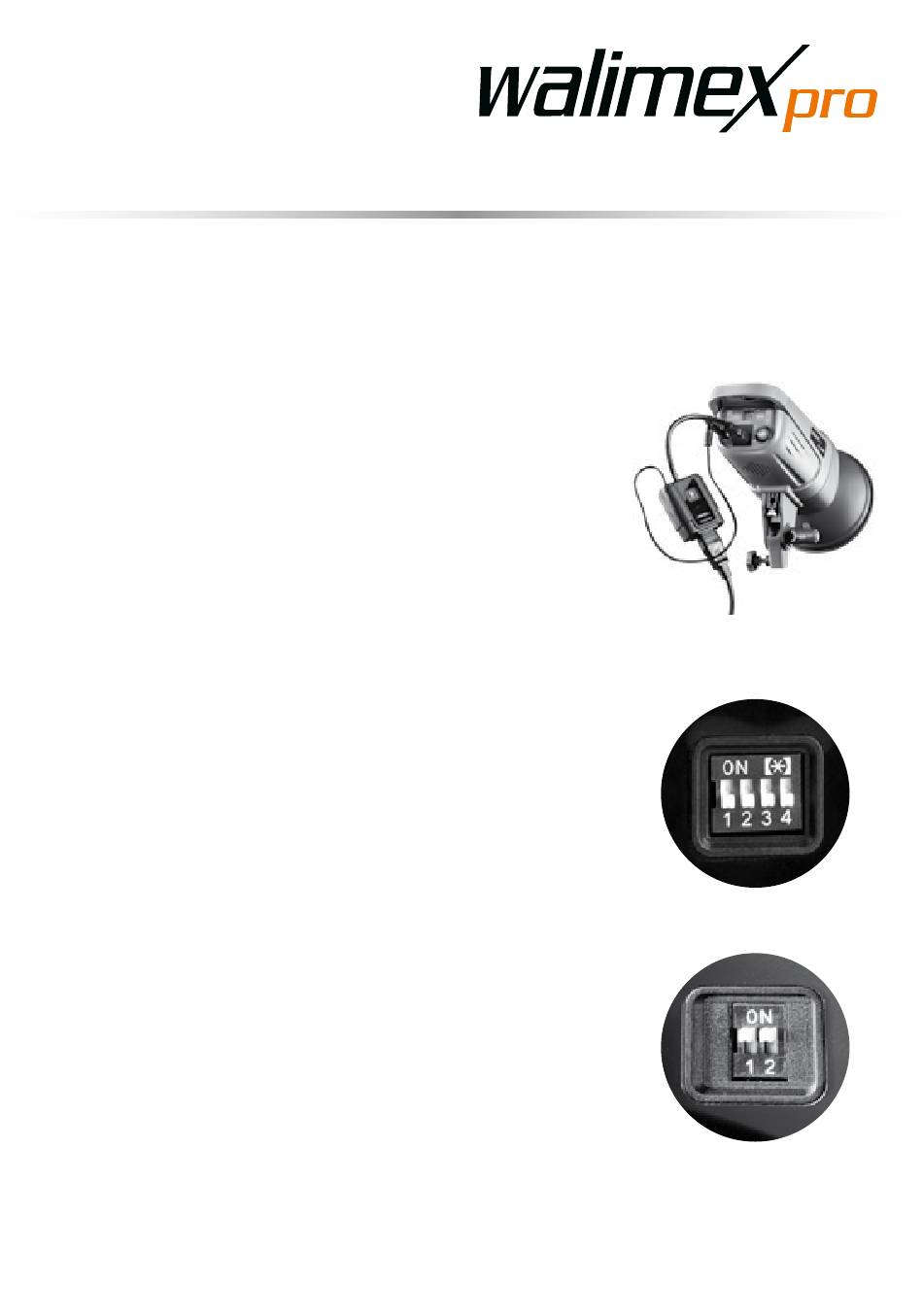

6.1 Connect the receiver with the studio flash and power supply
1. Switch off studio flash device.
2. Insert the sync cord in the jack of the studio flash.
3. Plug the power cord of the receiver in the jack of
the studio flash.
4. Compare the local power supply with the
connected load of the remote trigger.
See Technical Specifications.
If the values should differ, please contact
info@walser.de.
5. Connect the power cord with the socket on the
device and with the power socket.

6.2 Adjust frequency

Depending on the model you purchased, you have
the opportunity to operate the remote trigger with 4 or
16 different channels. It is important that you set the
same switch combination for transmitter and receiver
as in the following example.
1. Adjust the channels on the back of the
transmitter. Set the switches for position 1&2 or
1-4 in any combination between „on" and „off" (up
or down) .
2. Adjust the channels on the back of the receiver.
Set the switches to the same combination, so that
both devices use the same channel.
16-channel model
4-channel model
