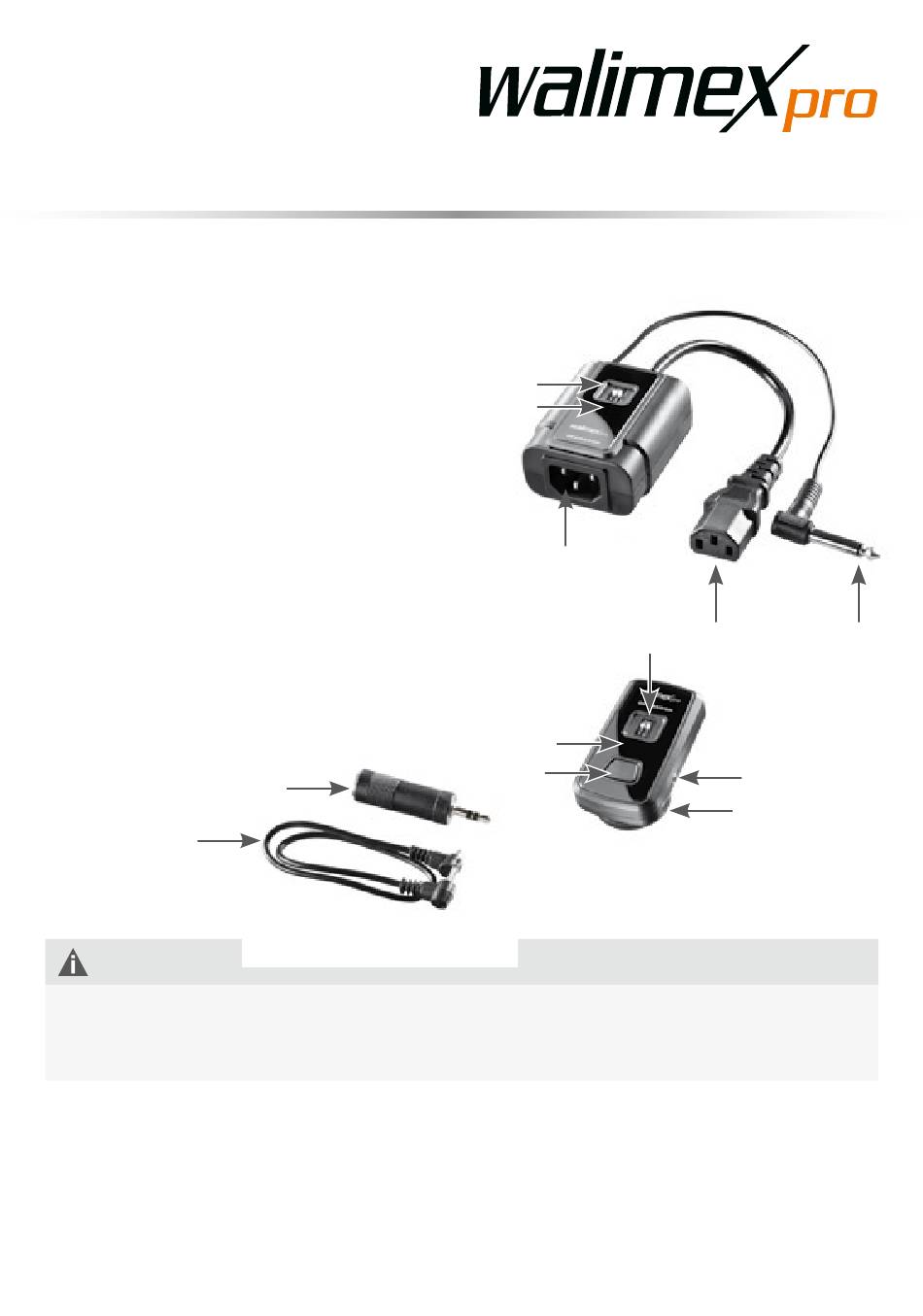

4. Overview about the parts

1 AC output plug
2 AC input socket
3 Trigger plug
4 Channel selection switch
receiver
5 Signal reception LED
indicator (blue)
6 Power indicator LED (red)
7 Flash mount
8 Connecting socket for sync cord
9 Transmitter signal LED indicator
10 Test button
11 Channel selection switch
transmitter
12 Audio jack adapter 6,35mm to 3,5mm
13 Sync cord
13

5. Quick-start guide

ADVICE
The detailed instruction for the following operations can be found in the respective chapters in this instruction
manual.
Keep the sequences of the following operation steps when using the device for the first time to avoid damages
on the device.
1. Connect the receiver with the studio flash and power supply.
2. Adjust the channel on both devices.
3. Mount the transmitter on the camera.
Trigger the test button.
18
12
4
5/6
2
11
9
10
image shows the 4-channel version
1 3
8
7
