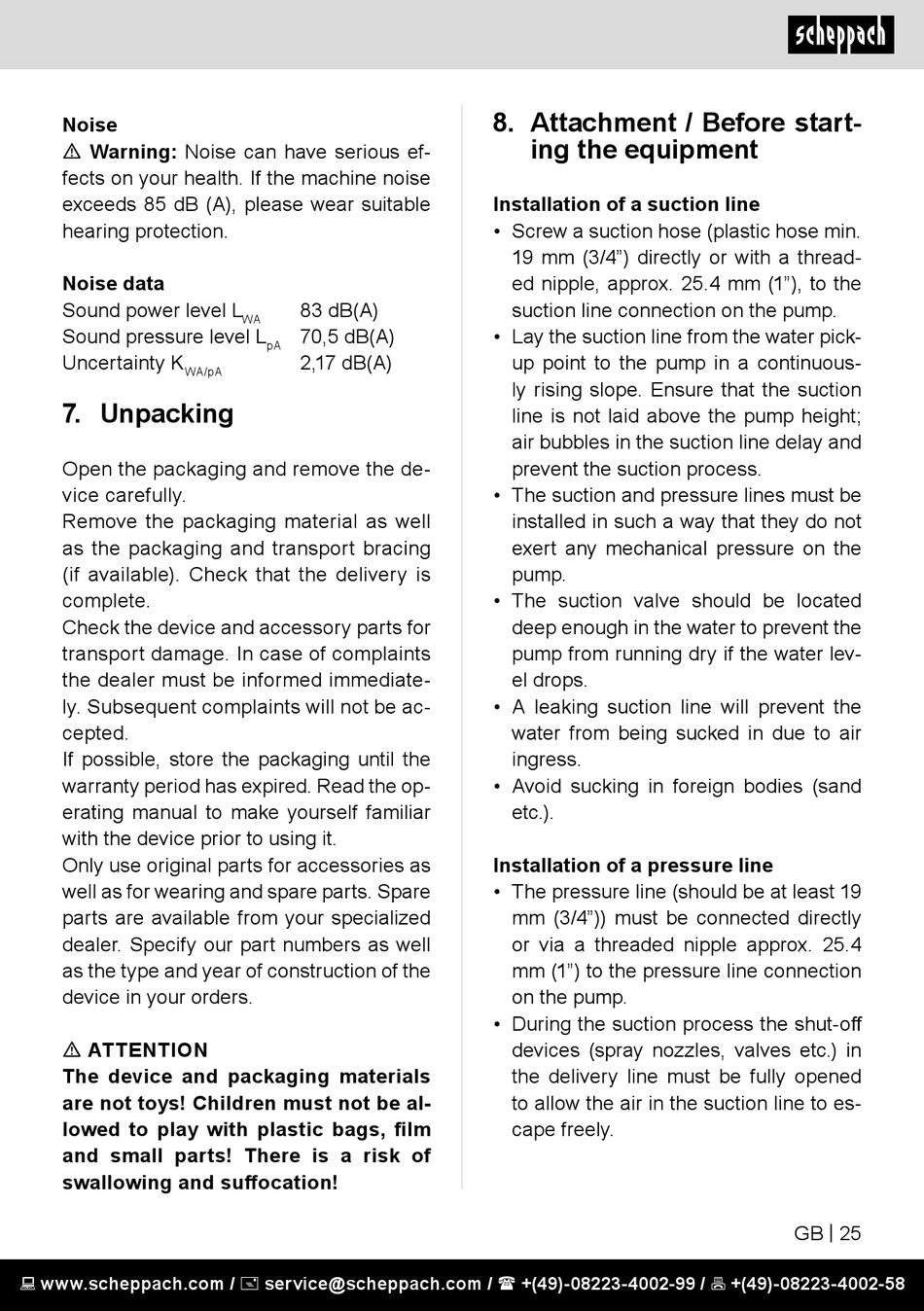

Unpacking; Attachment / Before Starting The Equipment - Scheppach HWW1300 Original Bedienungsanleitung

Noise
m Warning: Noise can have serious ef-
fects on your health. If the machine noise
exceeds 85 dB (A), please wear suitable
hearing protection.
Noise data
Sound power level L
Sound pressure level L
Uncertainty K
WA/pA

7. Unpacking

Open the packaging and remove the de-
vice carefully.
Remove the packaging material as well
as the packaging and transport bracing
(if available). Check that the delivery is
complete.
Check the device and accessory parts for
transport damage. In case of complaints
the dealer must be informed immediate-
ly. Subsequent complaints will not be ac-
cepted.
If possible, store the packaging until the
warranty period has expired. Read the op-
erating manual to make yourself familiar
with the device prior to using it.
Only use original parts for accessories as
well as for wearing and spare parts. Spare
parts are available from your specialized
dealer. Specify our part numbers as well
as the type and year of construction of the
device in your orders.
m ATTENTION
The device and packaging materials
are not toys! Children must not be al-
lowed to play with plastic bags, film
and small parts! There is a risk of
swallowing and suffocation!
