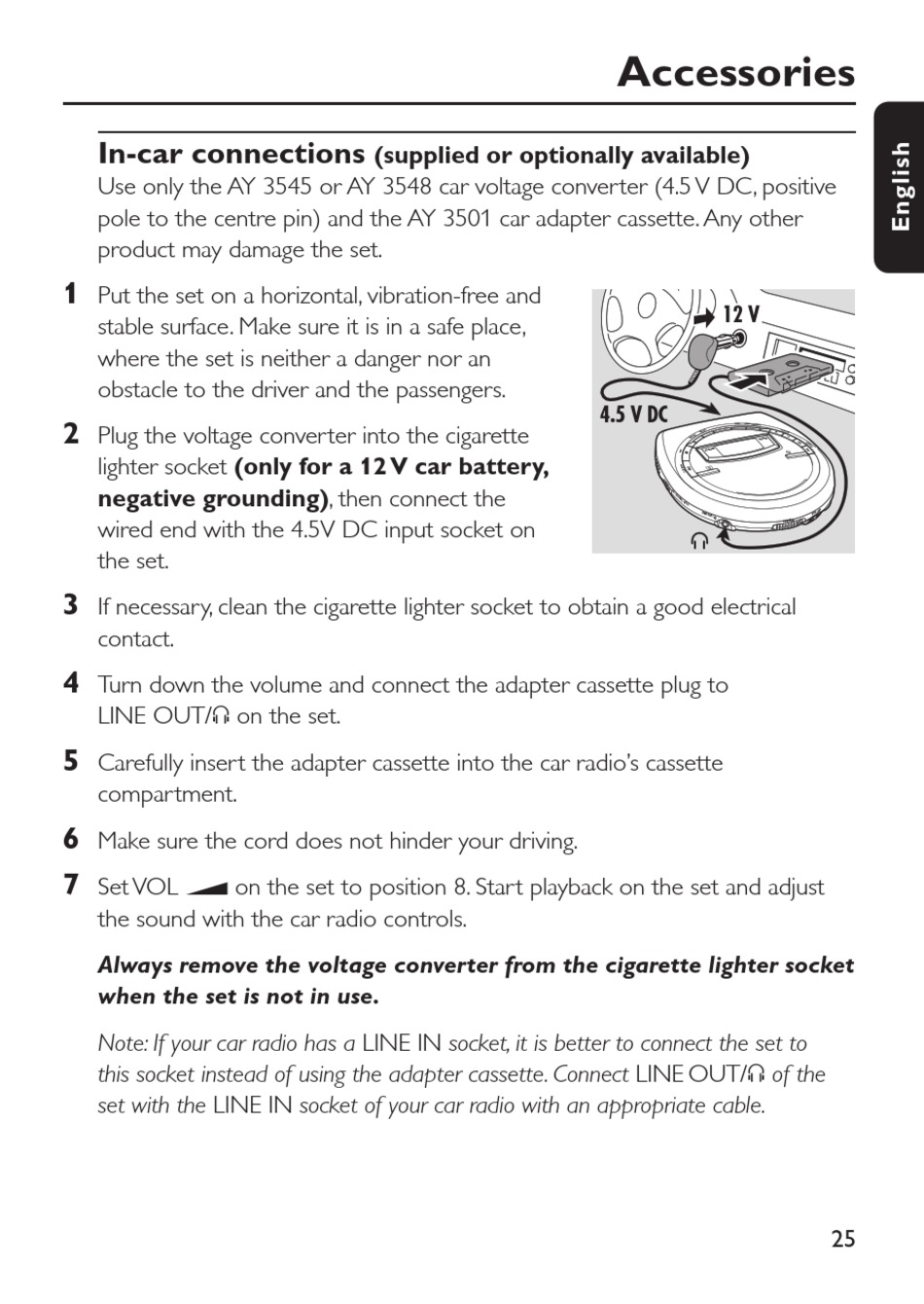

In-car connections
Use only the AY 3545 or AY 3548 car voltage converter (4.5 V DC, positive
pole to the centre pin) and the AY 3501 car adapter cassette. Any other
product may damage the set.
1
Put the set on a horizontal, vibration-free and
stable surface. Make sure it is in a safe place,
where the set is neither a danger nor an
obstacle to the driver and the passengers.
2
Plug the voltage converter into the cigarette
lighter socket (only for a 12 V car battery,
negative grounding), then connect the
wired end with the 4.5V DC input socket on
the set.
3
If necessary, clean the cigarette lighter socket to obtain a good electrical
contact.
4
Turn down the volume and connect the adapter cassette plug to
LINE OUT/p on the set.
5
Carefully insert the adapter cassette into the car radio's cassette
compartment.
6
Make sure the cord does not hinder your driving.
Set VOL E on the set to position 8. Start playback on the set and adjust
7
the sound with the car radio controls.
Always remove the voltage converter from the cigarette lighter socket
when the set is not in use.
Note: If your car radio has a LINE IN socket, it is better to connect the set to
this socket instead of using the adapter cassette. Connect LINE OUT/p of the
set with the LINE IN socket of your car radio with an appropriate cable.
(supplied or optionally available)

Accessories

12 V
4.5 V DC
O
F F
• R
E S
U
M
E •
H O
L D
L I N
E O
U T
/
L .
V O
OP EN
25
