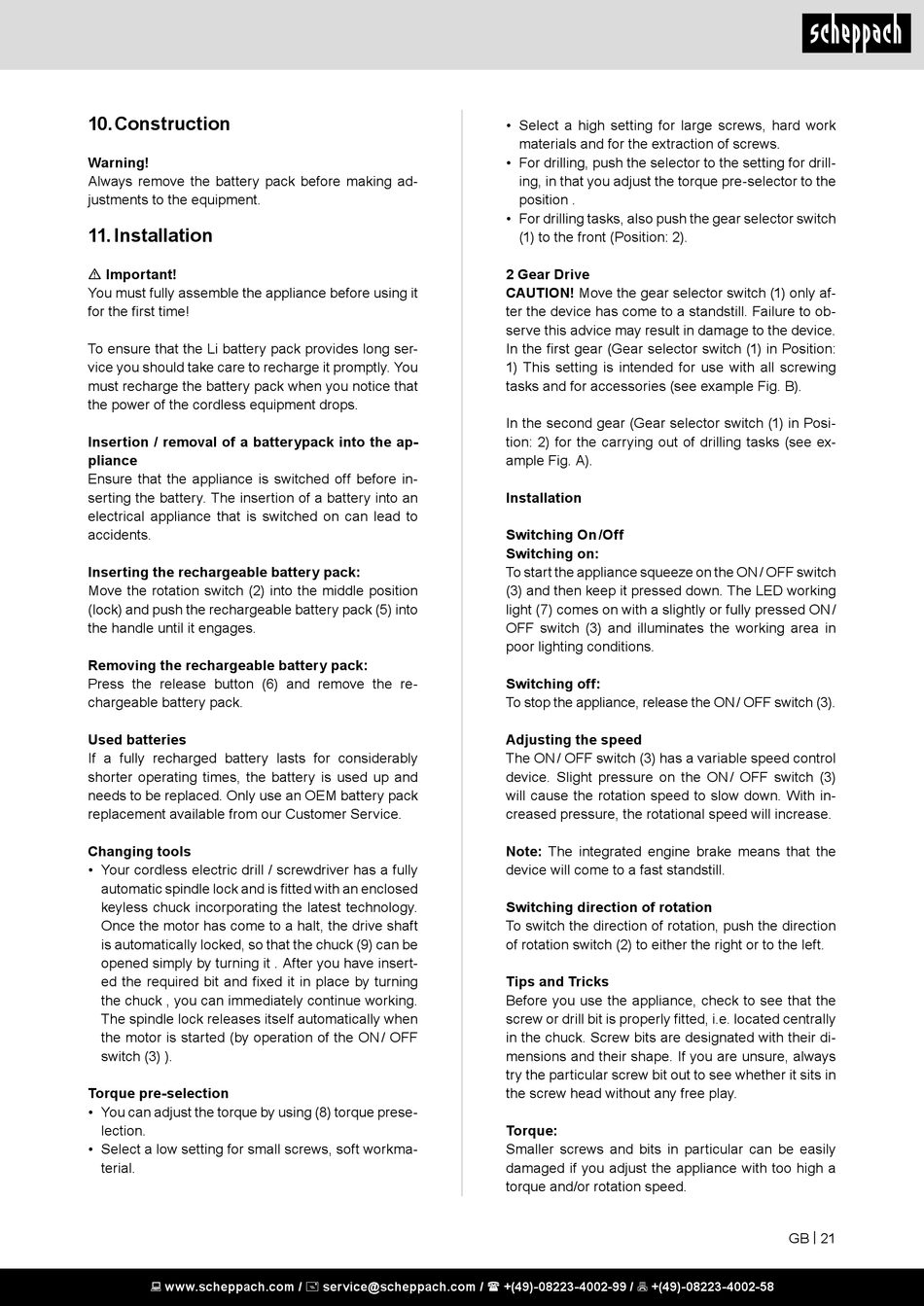

10. Construction

Warning!
Always remove the battery pack before making ad-
justments to the equipment.

11. Installation

m Important!
You must fully assemble the appliance before using it
for the first time!
To ensure that the Li battery pack provides long ser-
vice you should take care to recharge it promptly. You
must recharge the battery pack when you notice that
the power of the cordless equipment drops.
Insertion / removal of a batterypack into the ap-
pliance
Ensure that the appliance is switched off before in-
serting the battery. The insertion of a battery into an
electrical appliance that is switched on can lead to
accidents.
Inserting the rechargeable battery pack:
Move the rotation switch (2) into the middle position
(lock) and push the rechargeable battery pack (5) into
the handle until it engages.
Removing the rechargeable battery pack:
Press the release button (6) and remove the re-
chargeable battery pack.
Used batteries
If a fully recharged battery lasts for considerably
shorter operating times, the battery is used up and
needs to be replaced. Only use an OEM battery pack
replacement available from our Customer Service.
Changing tools
• Your cordless electric drill / screwdriver has a fully
automatic spindle lock and is fitted with an enclosed
keyless chuck incorporating the latest technology.
Once the motor has come to a halt, the drive shaft
is automatically locked, so that the chuck (9) can be
opened simply by turning it . After you have insert-
ed the required bit and fixed it in place by turning
the chuck , you can immediately continue working.
The spindle lock releases itself automatically when
the motor is started (by operation of the ON / OFF
switch (3) ).
Torque pre-selection
• You can adjust the torque by using (8) torque prese-
lection.
• Select a low setting for small screws, soft workma-
terial.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Select a high setting for large screws, hard work
materials and for the extraction of screws.
• For drilling, push the selector to the setting for drill-
ing, in that you adjust the torque pre-selector to the
position .
• For drilling tasks, also push the gear selector switch
(1) to the front (Position: 2).
2 Gear Drive
CAUTION! Move the gear selector switch (1) only af-
ter the device has come to a standstill. Failure to ob-
serve this advice may result in damage to the device.
In the first gear (Gear selector switch (1) in Position:
1) This setting is intended for use with all screwing
tasks and for accessories (see example Fig. B).
In the second gear (Gear selector switch (1) in Posi-
tion: 2) for the carrying out of drilling tasks (see ex-
ample Fig. A).
Installation
Switching On /Off
Switching on:
To start the appliance squeeze on the ON / OFF switch
(3) and then keep it pressed down. The LED working
light (7) comes on with a slightly or fully pressed ON /
OFF switch (3) and illuminates the working area in
poor lighting conditions.
Switching off:
To stop the appliance, release the ON / OFF switch (3).
Adjusting the speed
The ON / OFF switch (3) has a variable speed control
device. Slight pressure on the ON / OFF switch (3)
will cause the rotation speed to slow down. With in-
creased pressure, the rotational speed will increase.
Note: The integrated engine brake means that the
device will come to a fast standstill.
Switching direction of rotation
To switch the direction of rotation, push the direction
of rotation switch (2) to either the right or to the left.
Tips and Tricks
Before you use the appliance, check to see that the
screw or drill bit is properly fitted, i.e. located centrally
in the chuck. Screw bits are designated with their di-
mensions and their shape. If you are unsure, always
try the particular screw bit out to see whether it sits in
the screw head without any free play.
Torque:
Smaller screws and bits in particular can be easily
damaged if you adjust the appliance with too high a
torque and/or rotation speed.
