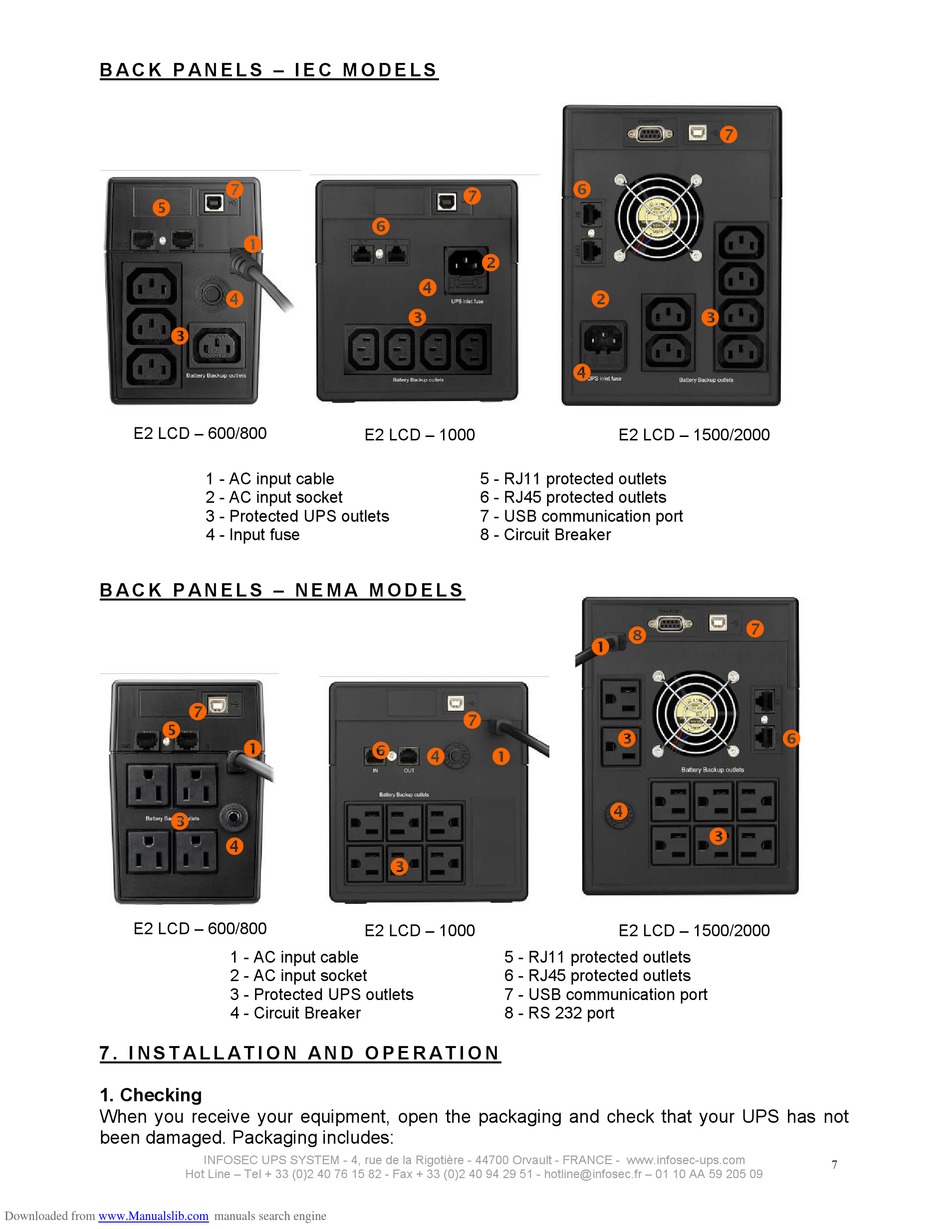

B A C K P A N E L S – I E C M O D E L S


E2 LCD – 600/800
B A C K P A N E L S – N E M A M O D E L S


E2 LCD – 600/800
7 . I N S T A L L A T I O N A N D O P E R A T I O N
1. Checking
When you receive your equipment, open the packaging and check that your UPS has not
been damaged. Packaging includes:
Downloaded from www.Manualslib.com



E2 LCD – 1000
1 - AC input cable
2 - AC input socket
3 - Protected UPS outlets
4 - Input fuse



E2 LCD – 1000
1 - AC input cable
2 - AC input socket
3 - Protected UPS outlets
4 - Circuit Breaker
