LED 100
2 Adjust the distance/alignment to the lens by screwing the
3 After adjustment, tighten the 3 fixing screws in the housing
The adjustment of the distance or alignment of the LED module
to the lens is now complete. The LED 100 can be mounted
again in switched-off state.
3 adjustment screws in/out (Allen key 2) in order to obtain a
sharper image.

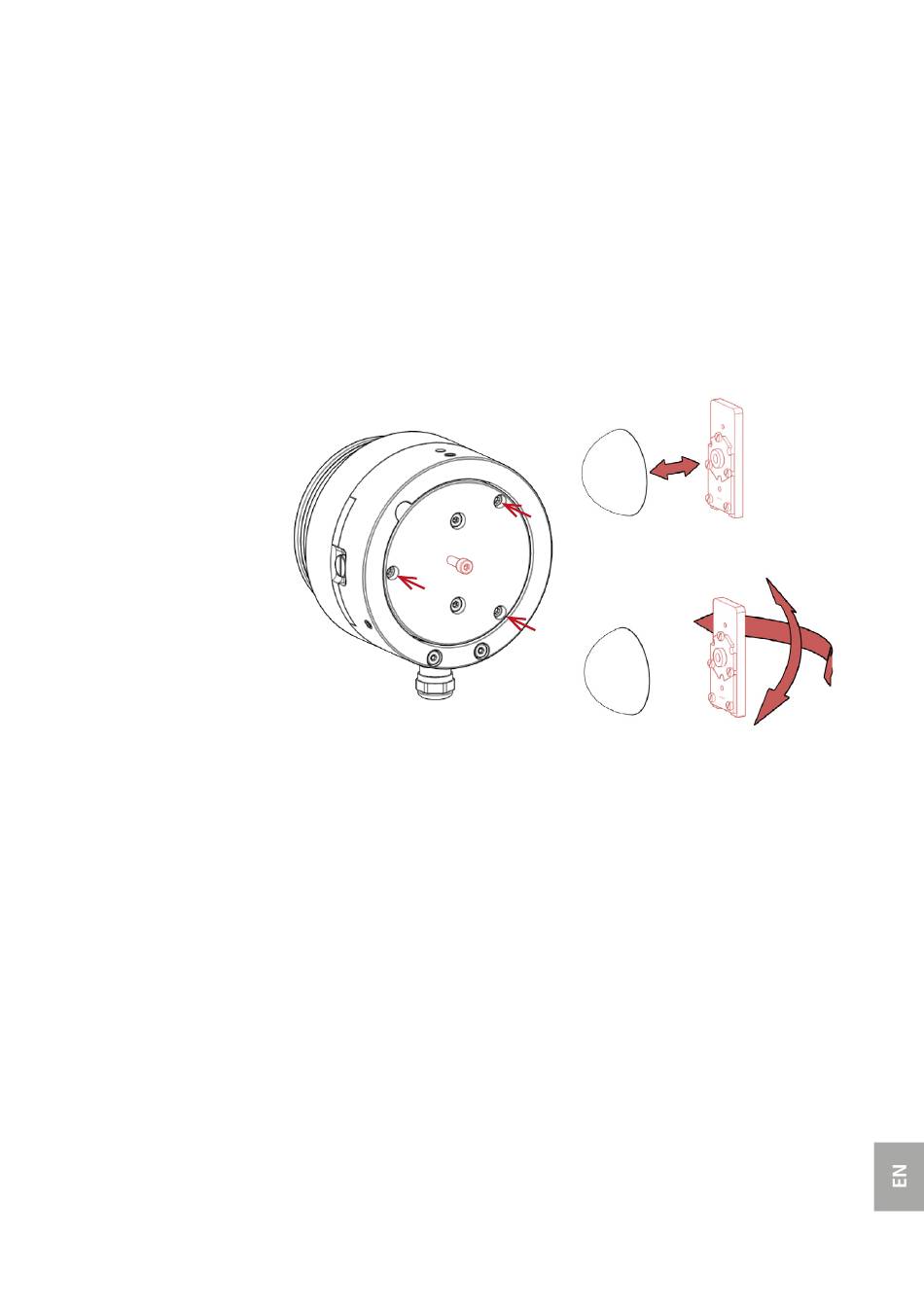

A Screwing the adjustment screws in/out evenly:
Decreasing/increasing the distance between the
LED module and the lens.
B Screwing the adjusting screws in/out unevenly:
Tilting of the LED module to the lens axis.
(Allen key 2).
Troubleshooting
A
B
