Hardware Overview

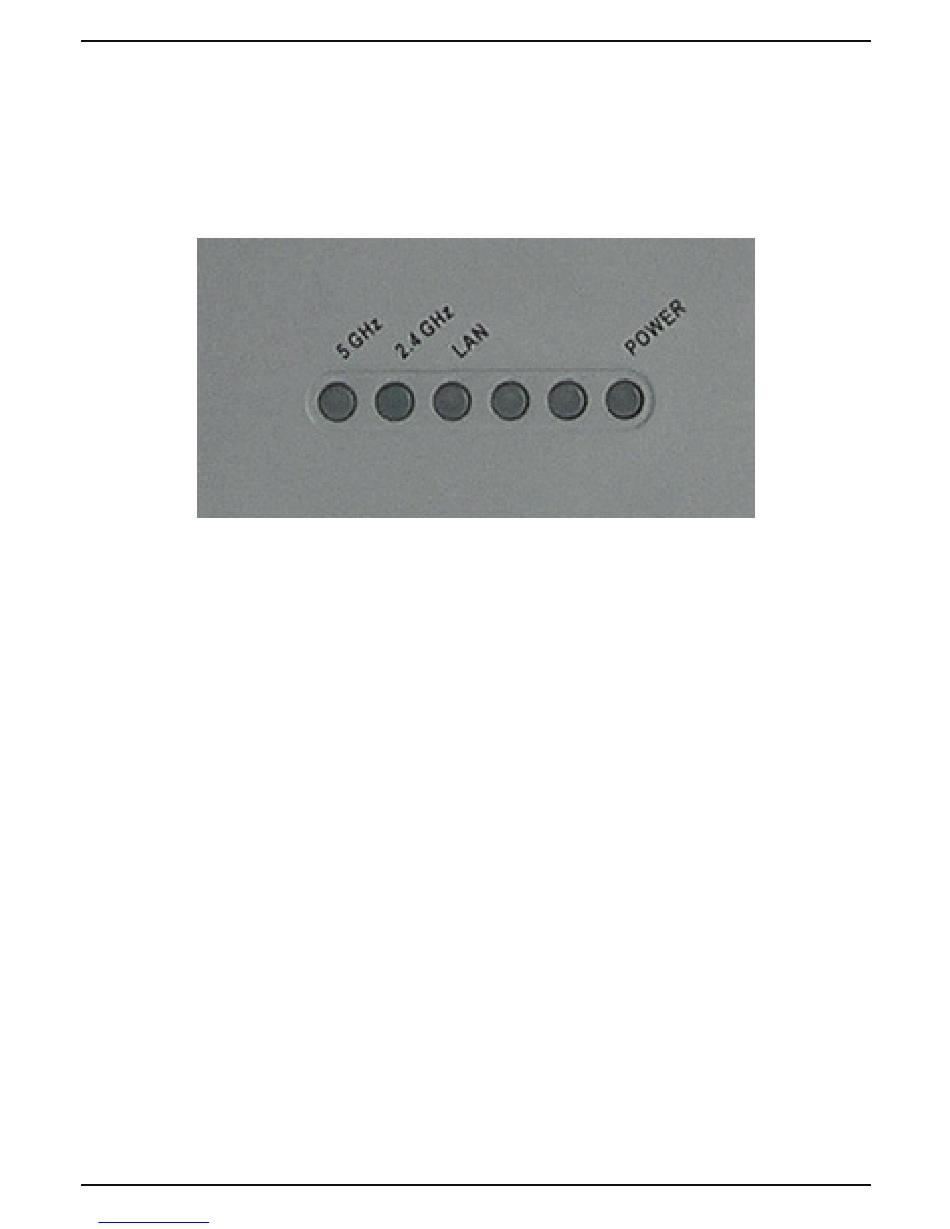

LEDs
5 GHz - When lit, the access point is operating at 5GHz.
This light will blink when there is wireless traffic.
2.4 GHz - When lit, the access point is operating at 2.4GHz.
This light will blink when there is wireless traffic.
LAN - Solid light when the Ethernet port is connected to a
working port, such as a router or switch. The light will blink
when there is traffic through LAN port.
POWER - The light will blink during boot up. Once solid, the
access point is ready.
DAP-2690 Install Guide 3
