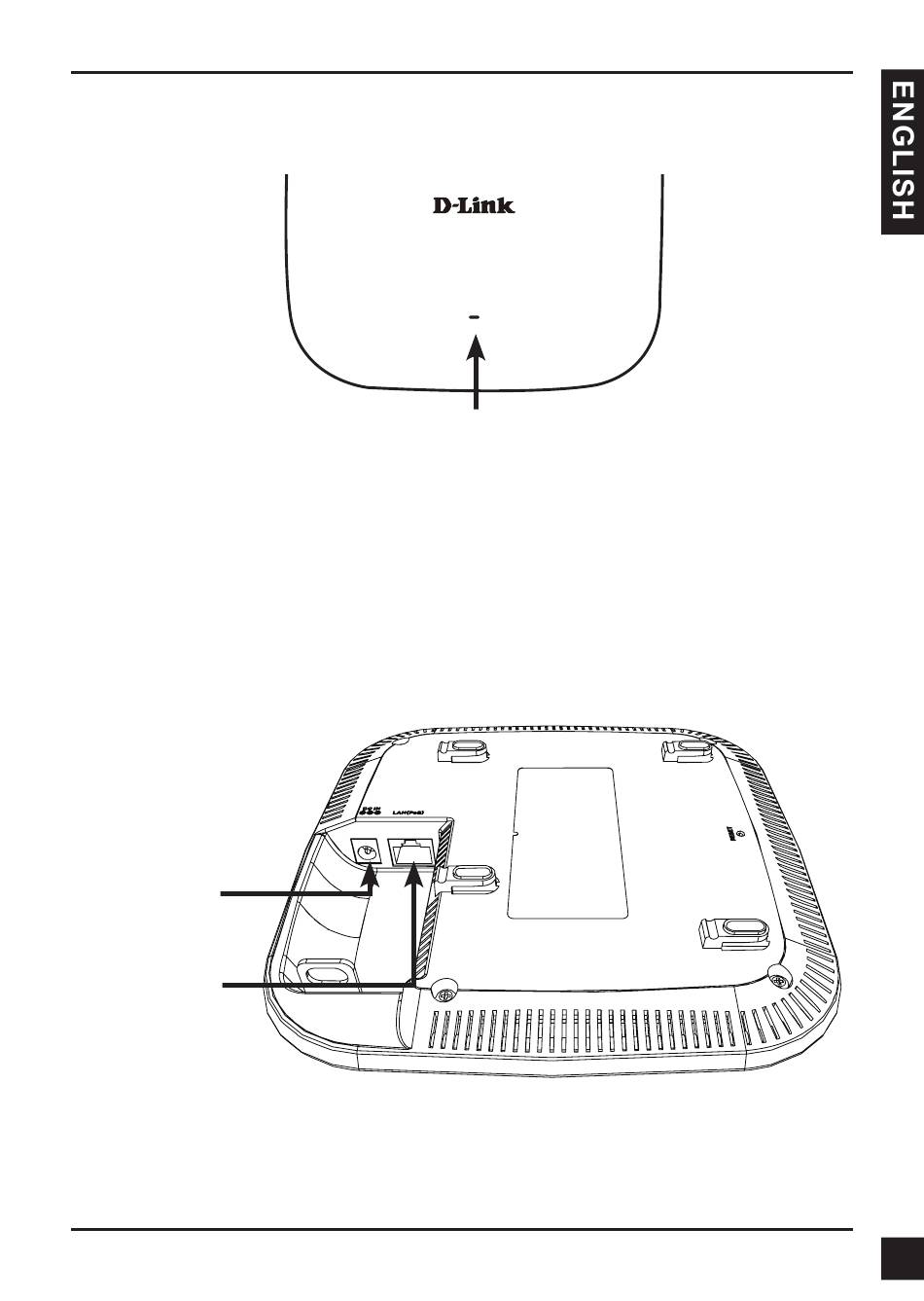

LED
Power/Status LED - Dual color (Red/green)
. Flash Red during booting up or malfunction
. Static Green while it's ready/working
. Solid Red while boot up fail
Interfaces
Power Receptor
(*Note no longer used,
replaced by PoE)
LAN Port (PoE)
* PoE kit (injector and adapter) is NOT include in the package and it can be purchased
with the model name "DPE-101GI".
D-Link DAP-2610 Quick Install Guide

2. Hardware Overview

3
