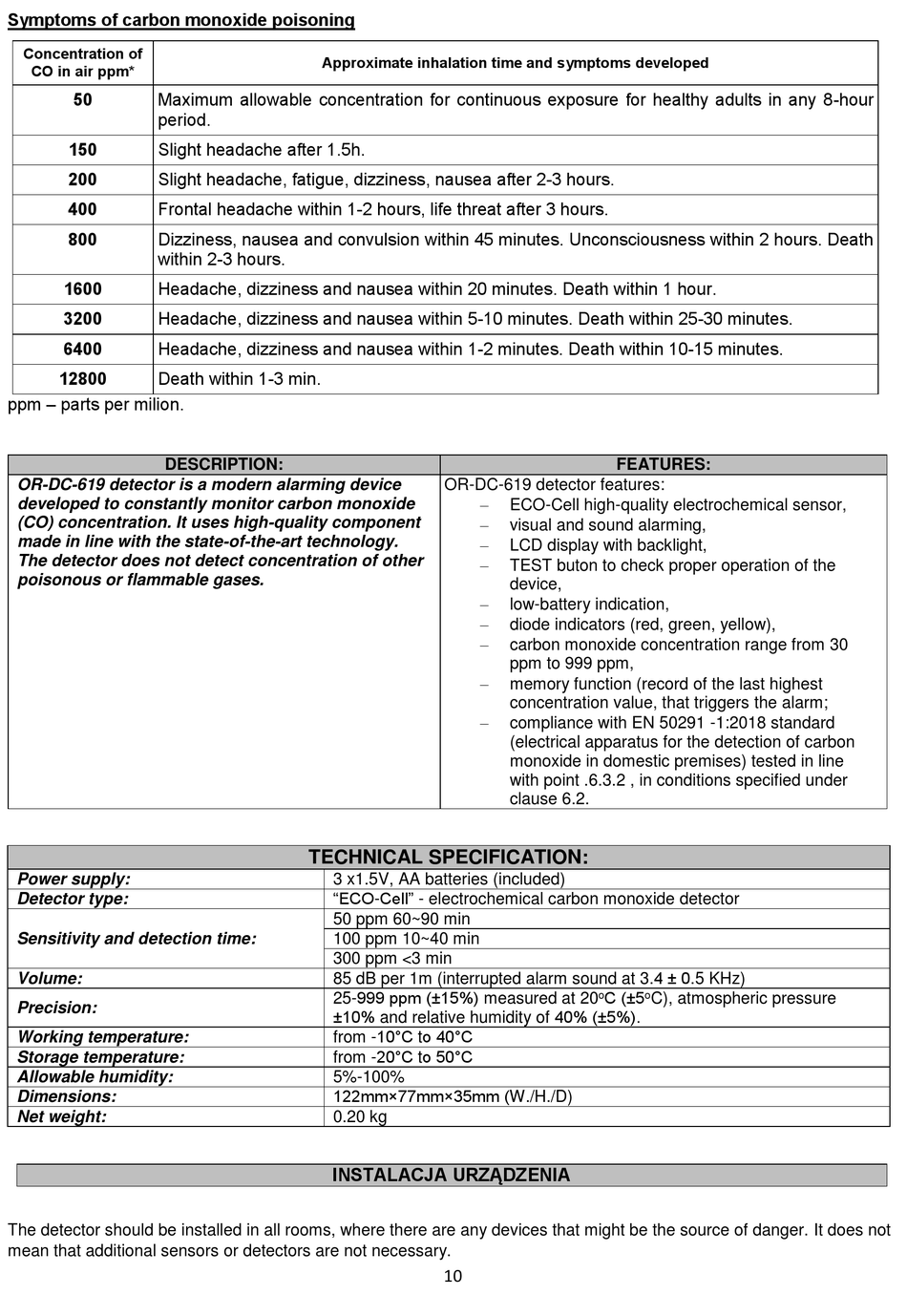

Technical Specification - Orno OR-DC-619 Bedienungsanleitung

Kohlenmonoxid-(co)-melder
Vorschau ausblenden Andere Handbücher für OR-DC-619:
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Symptoms of carbon monoxide poisoning
Concentration of
CO in air ppm*
50
Maximum allowable concentration for continuous exposure for healthy adults in any 8-hour
period.
150
Slight headache after 1.5h.
200
Slight headache, fatigue, dizziness, nausea after 2-3 hours.
400
Frontal headache within 1-2 hours, life threat after 3 hours.
800
Dizziness, nausea and convulsion within 45 minutes. Unconsciousness within 2 hours. Death
within 2-3 hours.
1600
Headache, dizziness and nausea within 20 minutes. Death within 1 hour.
3200
Headache, dizziness and nausea within 5-10 minutes. Death within 25-30 minutes.
6400
Headache, dizziness and nausea within 1-2 minutes. Death within 10-15 minutes.
12800
Death within 1-3 min.
ppm – parts per milion.
DESCRIPTION:
OR-DC-619 detector is a modern alarming device
developed to constantly monitor carbon monoxide
(CO) concentration. It uses high-quality component
made in line with the state-of-the-art technology.
The detector does not detect concentration of other
poisonous or flammable gases.
Power supply:
Detector type:
Sensitivity and detection time:
Volume:
Precision:
Working temperature:
Storage temperature:
Allowable humidity:
Dimensions:
Net weight:
The detector should be installed in all rooms, where there are any devices that might be the source of danger. It does not
mean that additional sensors or detectors are not necessary.
Approximate inhalation time and symptoms developed
OR-DC-619 detector features:

TECHNICAL SPECIFICATION:

3 x1.5V, AA batteries (included)
"ECO-Cell" - electrochemical carbon monoxide detector
50 ppm 60~90 min
100 ppm 10~40 min
300 ppm <3 min
85 dB per 1m (interrupted alarm sound at 3.4 ± 0.5 KHz)
25-999 ppm (±15%) measured at 20
±10% and relative humidity of 40% (±5%).
from -10°C to 40°C
from -20°C to 50°C
5%-100%
122mm×77mm×35mm (W./H./D)
0.20 kg
INSTALACJA URZĄDZENIA
10
FEATURES:
ECO-Cell high-quality electrochemical sensor,
visual and sound alarming,
LCD display with backlight,
TEST buton to check proper operation of the
device,
low-battery indication,
diode indicators (red, green, yellow),
carbon monoxide concentration range from 30
ppm to 999 ppm,
memory function (record of the last highest
concentration value, that triggers the alarm;
compliance with EN 50291 -1:2018 standard
(electrical apparatus for the detection of carbon
monoxide in domestic premises) tested in line
with point .6.3.2 , in conditions specified under
clause 6.2.
C (±5
o
o
C), atmospheric pressure
