6. Installation
A
All connections are polarity dependent.

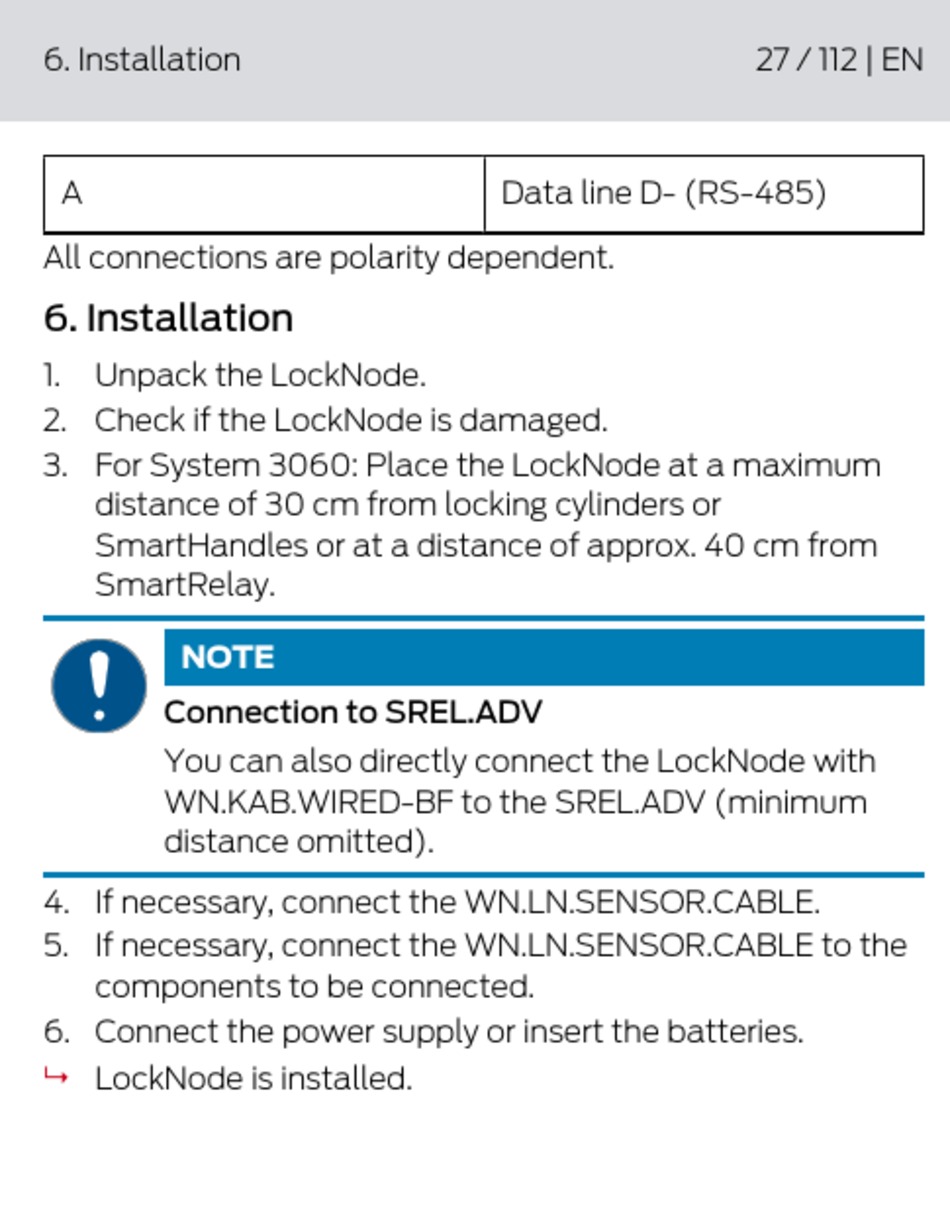

6. Installation
1.
Unpack the LockNode.
2. Check if the LockNode is damaged.
3. For System 3060: Place the LockNode at a maximum
distance of 30 cm from locking cylinders or
SmartHandles or at a distance of approx. 40 cm from
SmartRelay.
NOTE
Connection to SREL.ADV
You can also directly connect the LockNode with
WN.KAB.WIRED-BF to the SREL.ADV (minimum
distance omitted).
4. If necessary, connect the WN.LN.SENSOR.CABLE.
5. If necessary, connect the WN.LN.SENSOR.CABLE to the
components to be connected.
6. Connect the power supply or insert the batteries.
LockNode is installed.
9
Data line D- (RS-485)
27 / 112 | EN
