position. On the other hand you adjust with the lateral chest belts the most comfortable seating position. During the
adjustment pay attention to the fact that the body load is distributed equal on shoulder belt and lateral chest belt.
Adjustment of lordosis belt:
By lengthing or shortening of belt h) the pressure on the lower back can be varied.
Attaching the speed bar:
You can see in the schematic description how the speedbar rope is running. The rope of the speedbar runs down from the
risers to the pulley above the seatboard. Then through the guiding tube. The rope will leave the harness through the
frontal edge. The rope is guided through the small lateral D-ring at the frontal edge of the seatboard. Here the line gets
connected to the speedbar.
The length of the speedbar's line must be adjusted in a simulator before flight!
2. Mounting the rescue parachute
The Looping serie has got a deployment bag with integrated release handle. Out of this reason you have to find out the
right size of the deployment bag before mounting the rescue parachute.
Therefore you need to know the volume of the rescue parachute. If it is not shown in the parachute manual, you can
alternatively determine the volume of the rescue parachute by checking it's weight.
As a rule of thumb multiply the weight by 3. For example: 1500 gr x 3 = 4500 ccm Volumen
You have the choice of two deployment bag sizes. Only an original deployment bag is allowed to be used.
Container size small: 2300 ccm to 3500 ccm; Container size medium: 3200 ccm to 6500 ccm
Volumes of Independence rescue parachutes which are compatible with the Looping serie (selection only):
Annular 20 EVO:
4500 ccm
Annular 22 EVO:
5000 ccm
Annular 24 EVO:
5500 ccm
Smart L:
5000 ccm
Cornetto 100:
4510 ccm
Cornetto 140:
5000 ccm
2.1. Placing the rescue parachute into the innercontainer:
Caution: The mounting and installation of a rescue system requires expert knowledge and should be
carried out only by qualified persons!
After you have choosen the right innercontainer size the rescue parachute is to be placed into the deployment bag. The
steps of packing until you have reached the shown status below, has to be done according the rescue parachute manual!
The following guide shows the assembling of an Evo Cross. Other systems have to be build in the same way
analogously. Please check if there are special remarks in your parachute manual!
Steerable systems (example Rogallo systems) can be installed in the Looping serie only with explicit approval of the
rescue parachute manufacturer!

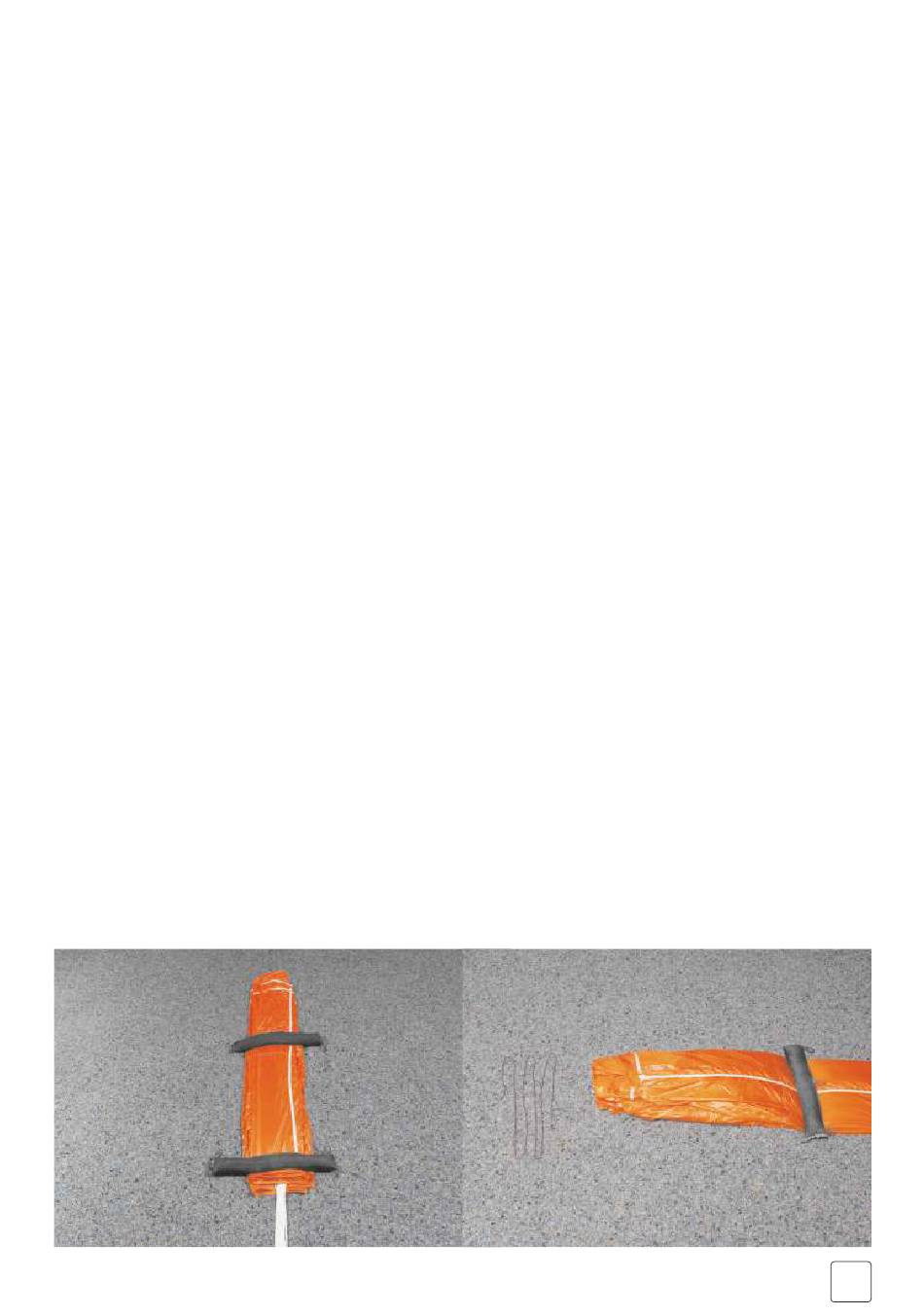

1. Fold the parachute like a "S" on the width of the
deployment bag.
Evo Cross 100:
4500 ccm
Evo Cross 120:
5200 ccm
Evo Cross 160:
5700 ccm
Ultra Cross 100:
2980 ccm
Ultra Cross 125:
5000 ccm
Ultra Cross 150:
5400 ccm
2. Remove the packing cord!
11
