Installation

Selection of installation equipment

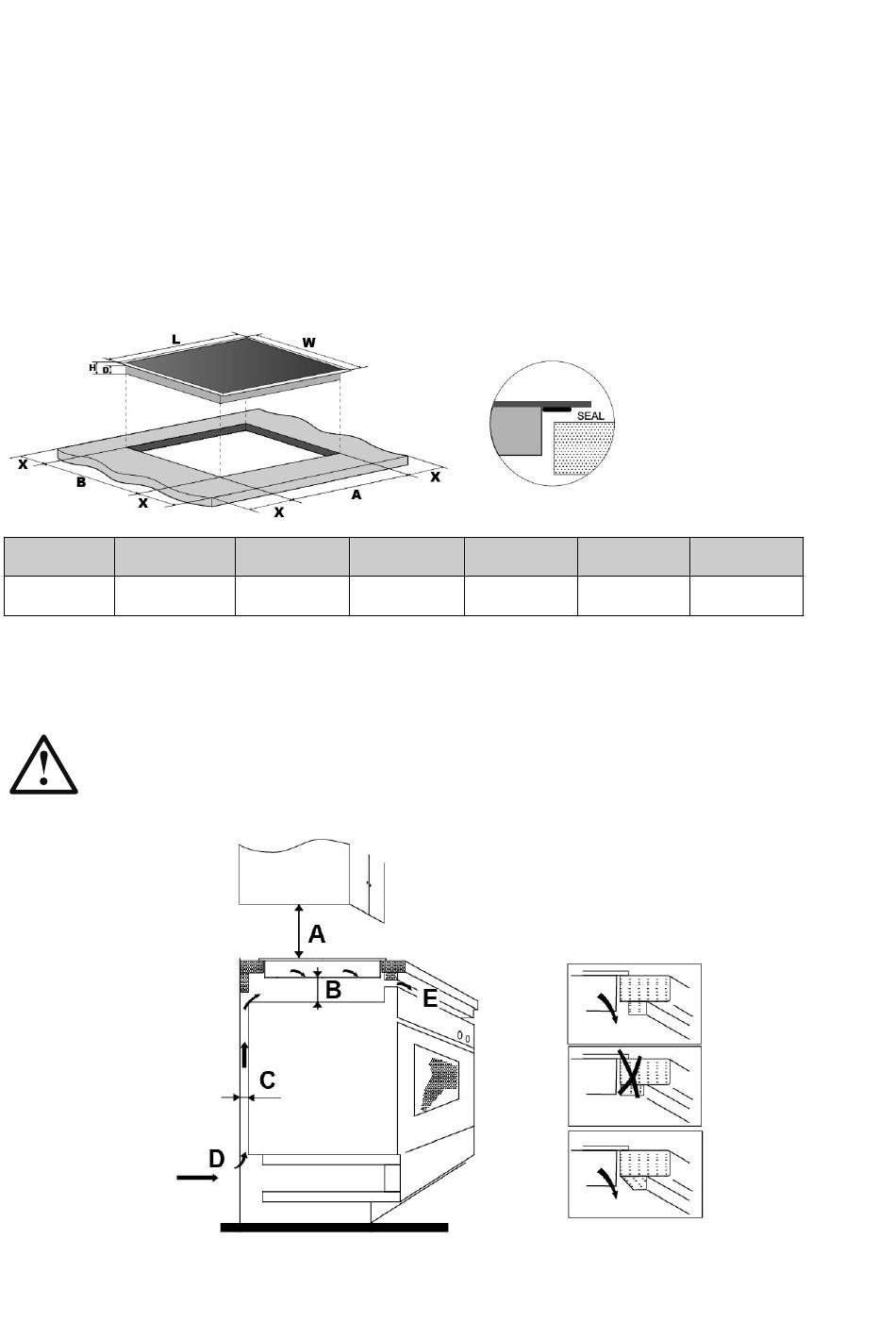

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use,a minimum of 5 cm space shall be
preserved around the hole.Be sure the thickness of the work surface is at least
30 mm.Please select heat-resistant work surface material to avoid larger
deformation caused by the heat radiation from the hotplate. As shown below:
L(mm) W(mm)
290 520
Under any circumstances,make sure the Induction cooker hob is well ventilated
and the air inlet and outlet are not blocked.Ensure the induction cooker hob is in
good work state.As shown below
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760 mm.
H(mm) D(mm)
70 65
A(mm) B(mm)
265 495
16
X(mm)
50 mini
