Installation; Connecting Equipment - LevelOne FSW-1650 Schnellinstallationsanleitung

ENGLISH

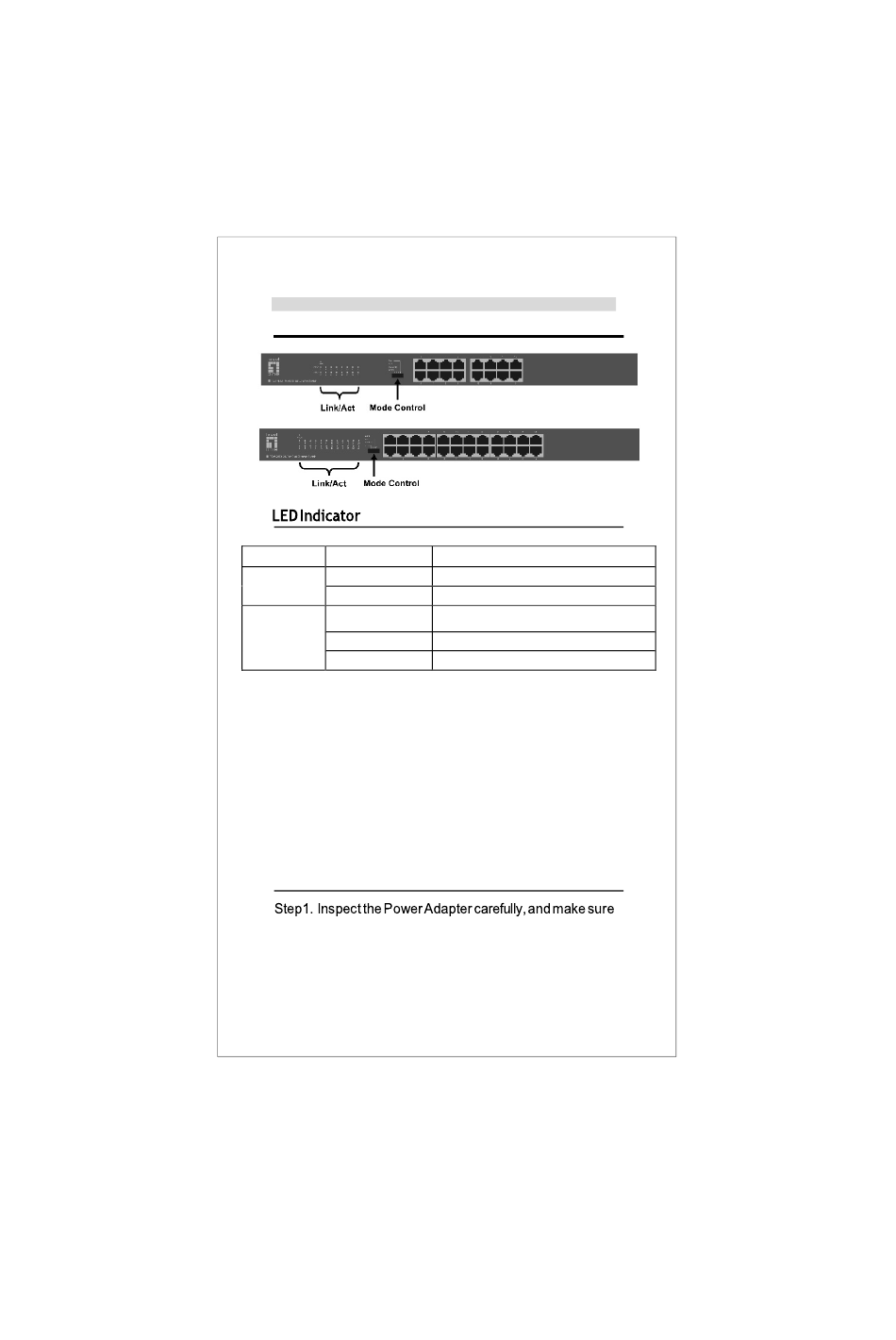

Installation

Status
LED Indicator
Solid green
Power
Off
Solid green
Link/up
Blinking
Off
Mode Control:
You can select the switch mode.
Ÿ Normal mode: All ports can communicate with each other.
Ÿ Flow control mode: Flow control function disabled, all ports can
communicate with each other.
Ÿ VLAN mode(for FSW-1650): 1~14 ports can not communicate with
each other, but can communicate with 15~16 ports.
Ÿ VLAN mode(for FSW-2450): 1~22 ports can not communicate with
each other, but can communicate with 23~24 ports.
Ÿ Extend mode: Speed of 1~8 ports is reduced to 10 Mbps, transmission
distance can reach 250m.

Connecting Equipment

that it is properly connected to a power source.
Step2. Plug-in the Power Adapter to the Switch.
Step3. Connect your network devices with the switch by
using Ethernet cable. (e.g. Cat-5e)
Meaning
Power is on.
Power is off.
The port is connected, but no data is
transmitting or receiving.
The port is transmitting or receiving data.
The port is NOT connected.
3
