SOUNDMATE1MKII
DESCRIPTION
Compact, active 2.1 PA system with a 15" subwoofer and a pair of 2-way 8" satellite speakers with 1" driver.
Built-in 3-channel class D amplifier and active crossover.
• 15mm MDF black painted cabinets with steel grille
• 15" high power bass reflex subwoofer with wheels
8" mid-high range satellite with 1" high frequency driver
•
• Class D amplifier 500W + 2x150W
Two 3m cables for satellite connection and two stands 1.6m
•
• Limiter, ground lift switch and subwoofer phase reverse

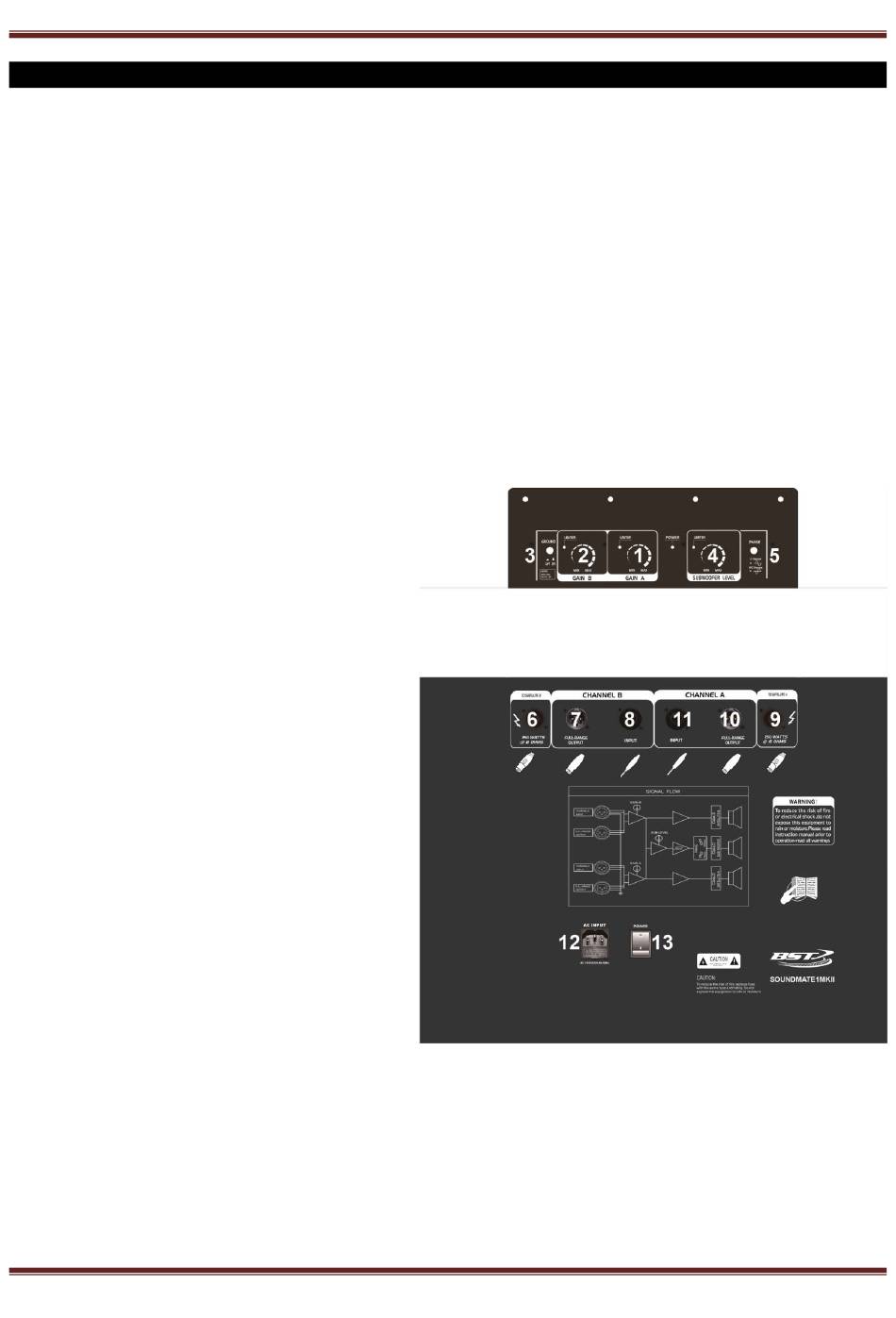

1. CHANNEL A volume control
Use this button to adjust the signal level of satellite A.
2. Channel B volume control
Use this button to adjust the signal level of satellite B.

3. GROUND SWITCH

In the upper position the input signal and
housing are grounded, in the lower position
they are not.
4. SUB VOLUME
Use this button to adjust the signal level of the
Subwoofer.
5. PHASE REVERSE
Use this switch to reverse the phase of the
subwoofer.

6. SIGNAL OUTPUT

Connect to left satellite speaker.
7. SIGNAL LINK OUTPUT
8. CHANNEL B SIGNAL INPUT
9. SIGNAL OUTPUT
Connect to right satellite speaker.
10. SIGNAL LINK OUTPUT
11. CHANNEL A Signal input
12. POWER SOCKET
Used to connect the main power cable.
13. POWER SWITCH
This button is used to switch on/off the unit.
ASSEMBLY
Make sure the unit is switched off. Open 2 legs of the stand so that the three legs of the stand are spread as wide
as possible. Lift the speaker up to the top of the stand and insert the stand into the hole on the speaker. Proceed
the same way for the other satellite speaker.
Place the subwoofer in the middle of the two satellite speakers and connect them to the satellite outputs (6 & 9).
© Copyright LOTRONIC 2017
www.bstdj.com
Page 3
