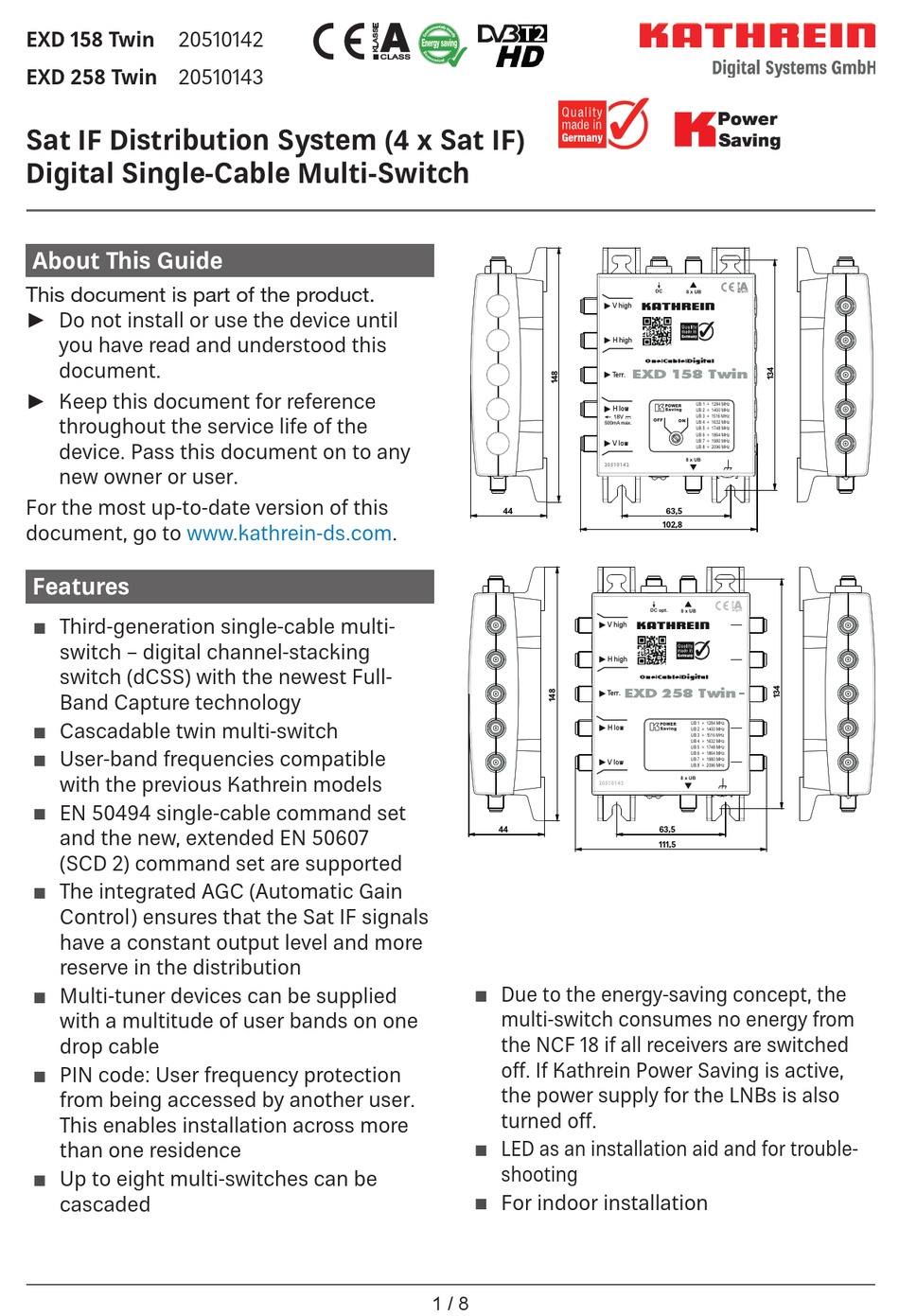

Kathrein EXD 158 Twin Anleitung Seite 9

EXD 158 Twin 20510142
EXD 258 Twin 20510143
Sat IF Distribution System (4 x Sat IF)
Digital Single-Cable Multi-Switch
About This Guide
This document is part of the product.
► Do not install or use the device until
you have read and understood this
document.
► Keep this document for reference
throughout the service life of the
device. Pass this document on to any
new owner or user.
For the most up-to-date version of this
document, go to www.kathrein-ds.com.
Features
Third-generation single-cable multi-

switch – digital channel-stacking
switch (dCSS) with the newest Full-
Band Capture technology
Cascadable twin multi-switch

User-band frequencies compatible

with the previous Kathrein models
EN 50494 single-cable command set

and the new, extended EN 50607
(SCD 2) command set are supported
The integrated AGC (Automatic Gain

Control) ensures that the Sat IF signals
have a constant output level and more
reserve in the distribution
Multi-tuner devices can be supplied

with a multitude of user bands on one
drop cable
PIN code: User frequency protection

from being accessed by another user.
This enables installation across more
than one residence
Up to eight multi-switches can be

cascaded
44
20510143
44
Due to the energy-saving concept, the

multi-switch consumes no energy from
the NCF 18 if all receivers are switched
o . If Kathrein Power Saving is active,
the power supply for the LNBs is also
turned o .
LED as an installation aid and for trouble-

shooting
For indoor installation

1 / 8
DC 8 x UB
V high
H high
OneICableIDigital
EXD 158 Twin
Terr.
UB 1 = 1284 MHz
POWER
H low
Saving UB 2 = 1400 MHz
UB 3 = 1 516 MHz
OFF
ON
UB 4 = 1632 MHz
UB 5 = 1748 MHz
UB 6 = 1864 MHz
UB 7 = 1980 MHz
V low
UB 8 = 2096 MHz
8 x UB
20510142
63,5
102,8
DC opt.
8 x UB
V high
H high
OneICableIDigital
EXD 258 Twin
Terr.
UB 1 = 1284 MHz
POWER
H low
Saving UB 2 = 1400 MHz
UB 3 = 1 516 MHz
UB 4 = 1632 MHz
UB 5 = 1748 MHz
UB 6 = 1864 MHz
UB 7 = 1980 MHz
V low
UB 8 = 2096 MHz
8 x UB
63,5
111,5
