System connections
DK-AP2
DK-AP2(BK)
ENGLISH
Make sure to unplug the AC power lead before any connections.

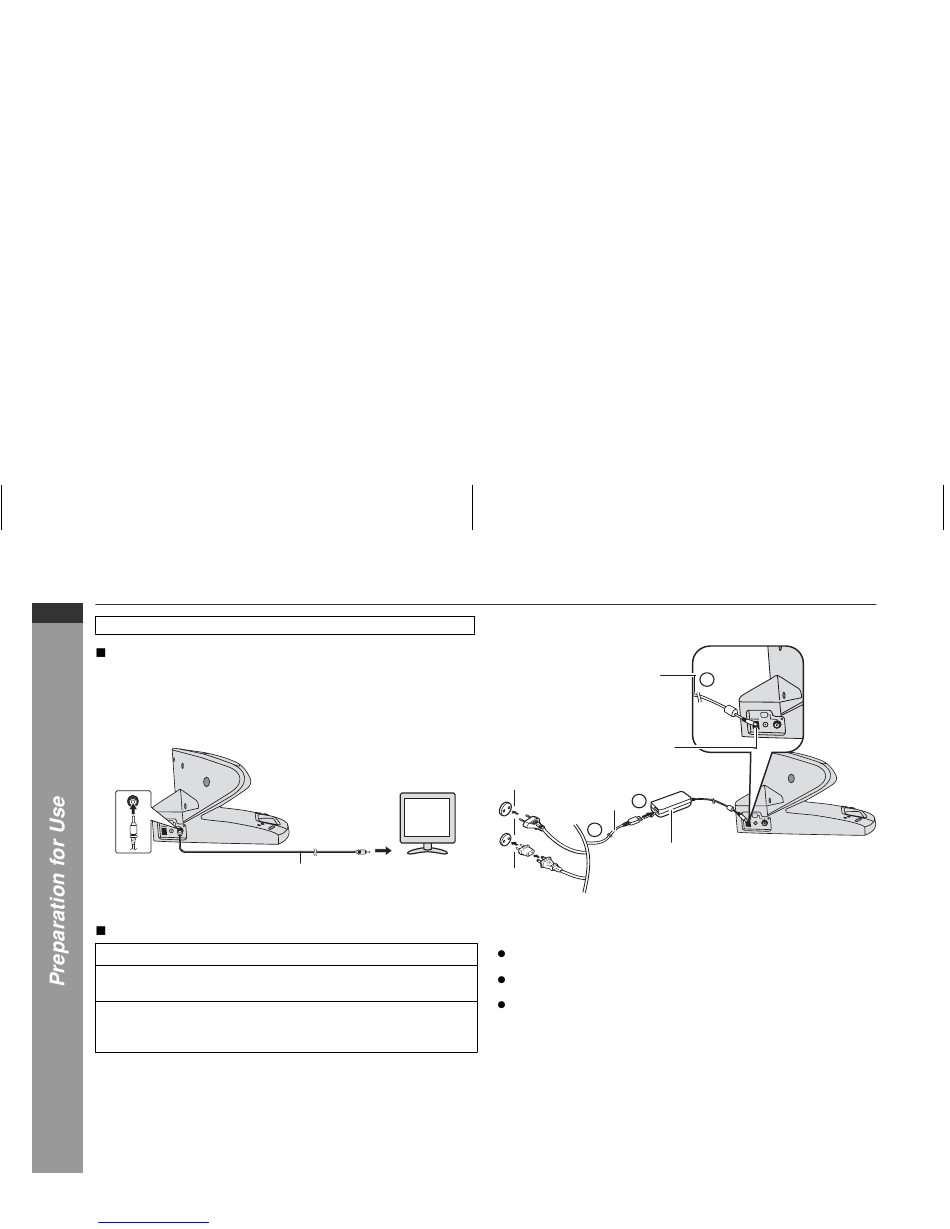

Connecting iPod to TV
iPod photo and 5th Generation iPod with photo and video can be
viewed by connecting to TV/monitor.
If the TV/monitor has a video input, connect it to the VIDEO OUT
socket at the side of the unit and set the TV Out on the iPod unit to
"On" position.
VIDEO
OUT
DC IN 6V
AUX IN
Using with the AC/DC adaptor
1
Plug the AC power lead into the AC/DC adaptor.
2
Plug the AC/DC adaptor cable into the DC INPUT socket on
the unit.
3
Plug the AC power lead into a wall socket and switch on the
power supply. The STAND-BY indicator turns red and when
the power is on, the POWER indicator turns blue.
E-5
Downloaded from
www.Manualslib.com
To video
input socket
Video cable
(not supplied)
manuals search engine
AC/DC Adaptor Cable
DC INPUT Socket
TV
AC Power Lead
3
(AC 110 - 240 V, 50/60 Hz)
Notes:
Unplug the AC/DC adaptor from the wall socket if the unit will not
be used for a prolonged period of time.
Connecting the AC/DC adaptor to the unit disconnects the
batteries.
Use only the supplied AC/DC adaptor. Using other AC/DC
adaptor may cause an electric shock or fire.
2
VIDEO
DC IN 6V
OUT
AUX IN
(DC 6V)
1
VIDEO
OUT
DC IN 6V
AUX IN
AC/DC Adaptor
Wall Socket
