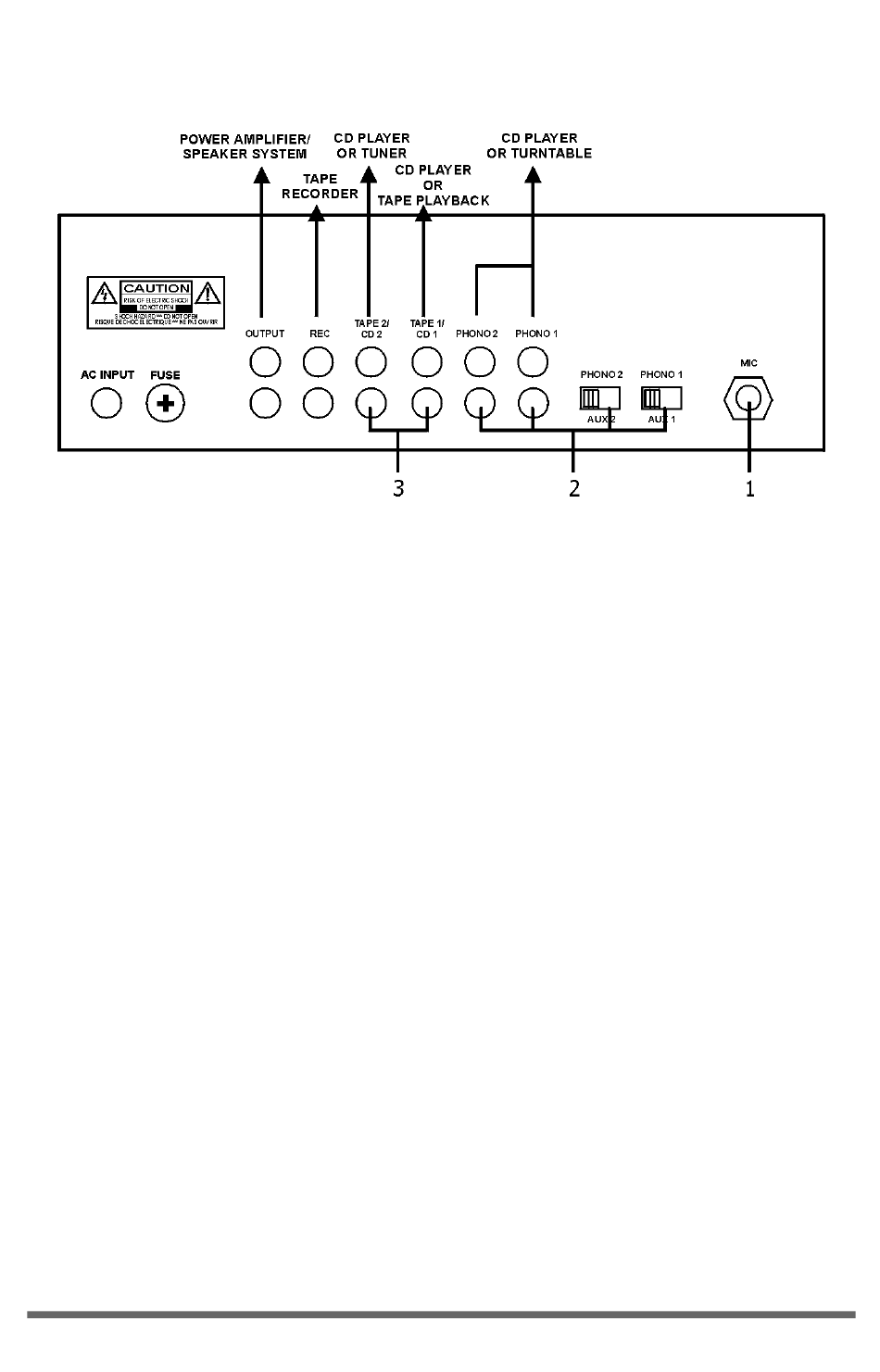

REAR PANEL

This stereo mixer is composed of high quality pre-amplifiers. It is
designed for applications such as club mixing or recording.
FUNCTIONS
1. Micro
Asymmetric microphone connector (CH1).
2. Phono/Aux
2 phono or line inputs, selectable on the rear panel of the
mixer (CH2 and CH3).
3. CD/Tape
2 line inputs (CH4 and CH5).
4. Crossfader
When you put the fader from channel 2 and 3 wide open, you
can mix both channels with the crossfader.
5. Phones
Allows you to select the signal that you want to hear in your
headphones.
6. VU meters
They show you the output level of the mixer. Try to respect the
'0 dB' level by adjusting the faders.
