1.

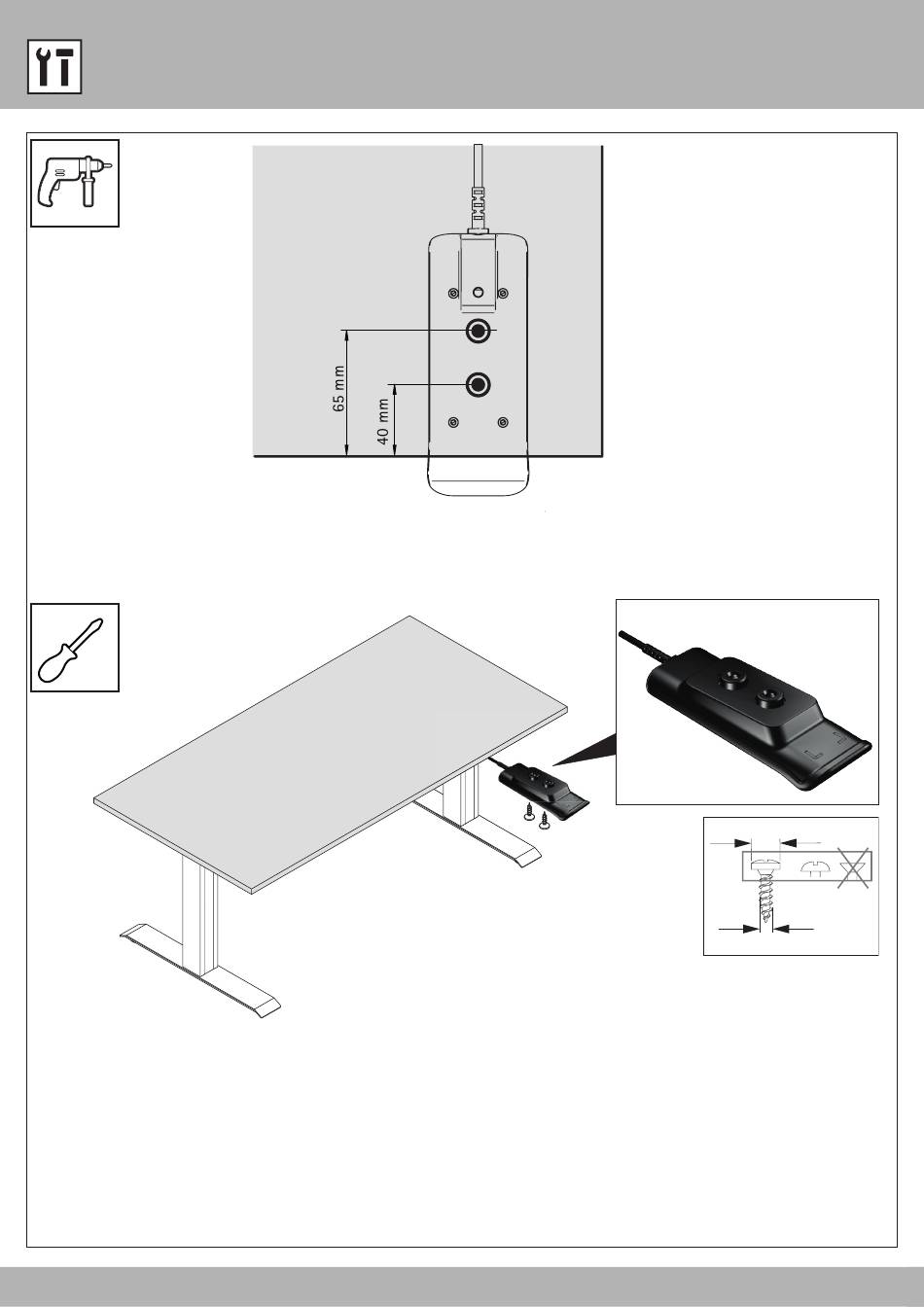

Position the handset under the table top and mark the position of the mounting points.
2.
Drill the holes into the table top.
3.
Use the screwdriver and mounting screws to attach the handset to the table top at the drilled holes.
Tightening torque depends on the material of the table top. Do not exceed 2 Nm.
4.
After the Easy2Move handset is attached to the table top, you must connect the cable to the control box. Refer to the manual for your chosen
control box for instructions.
8
Hettich Marketing- und Vertriebs GmbH & Co. KG · Gerhard-Lüking-Straße 10 · 32602 Vlotho · Telefon +49 5733 798-0 · www.hettich.com
Löcher vorbohren /
pre-drill the holes
Vorderkante /
Front edge
ø 8,5mm - ø 10,6mm
6,55
2x
3
max. ø 5mm
