Operation manual

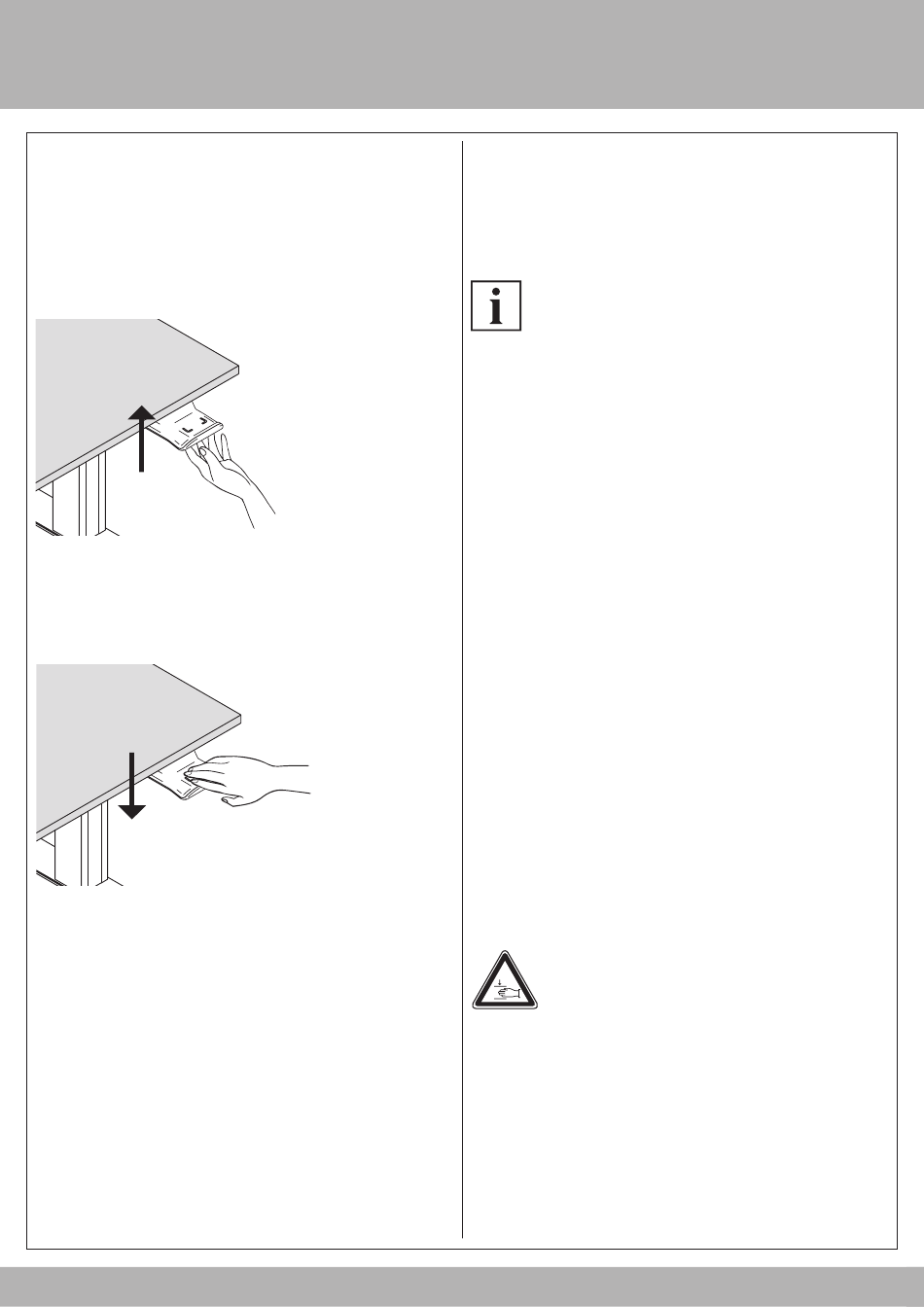

1. Adjusting the table top heigt
The table top will move up or down until the paddle is released, or if
a pre-defined stopping point has been reached.
1.1 Moving the table top up
Gently lift and hold the paddle until the desired height has been
reached
1.2 Moving the table top down
Gently push and hold down the paddle until the desired height has
been reached.
10
Hettich Marketing- und Vertriebs GmbH & Co. KG · Gerhard-Lüking-Straße 10 · 32602 Vlotho · Telefon +49 5733 798-0 · www.hettich.com
2. Shelf-Stop and Container-Stop Positions
These features can limit the movement area of the Table Top (if e.g.
a container is below the table or a shelf is above it). Container Stop
Positions become the new lowest end position, Shelf Stop Positions
the highest.
Container Stop Positions can only be saved only in the
lower half of the movement area, Shelf Stop Positions in
the upper half. You must set each position separately
2.1 Save a Shelf-Stop / Container-Stop Position
1. Use the Paddle to move the table top to the desired height.
2. Press and hold the SAVE Key for 10 seconds. The control unit
clicks twice when the position has been set.
→ The Container Stop / Shelf Stop Position is saved (Container
Stop if you are in the bottom half of the movement area,
Shelf Stop if you are in the top half).
2.2 Delete a Shelf-Stop / Container-Stop Position
1. Use the Paddle to move the table top to the position you wish to
delete.
2. Press and hold the SAVE Key for 10 seconds. The control unit
clicks once when the position has been deactivated
→ The Container Stop / Shelf Stop Position is deleted (Container
Stop if you are in the bottom half of the movement area,
Shelf Stop if you are in the top half).
3. Reset on first start-up / Manual reset
DANGER Risk of minor or moderate injury through
crushing
Collision Detection (ISP) is inactive during start-up and reset pro-
cesses. This may lead to minor or moderate injury through crushing.
• Ensure that no persons or objects are in the table's range of
motion
