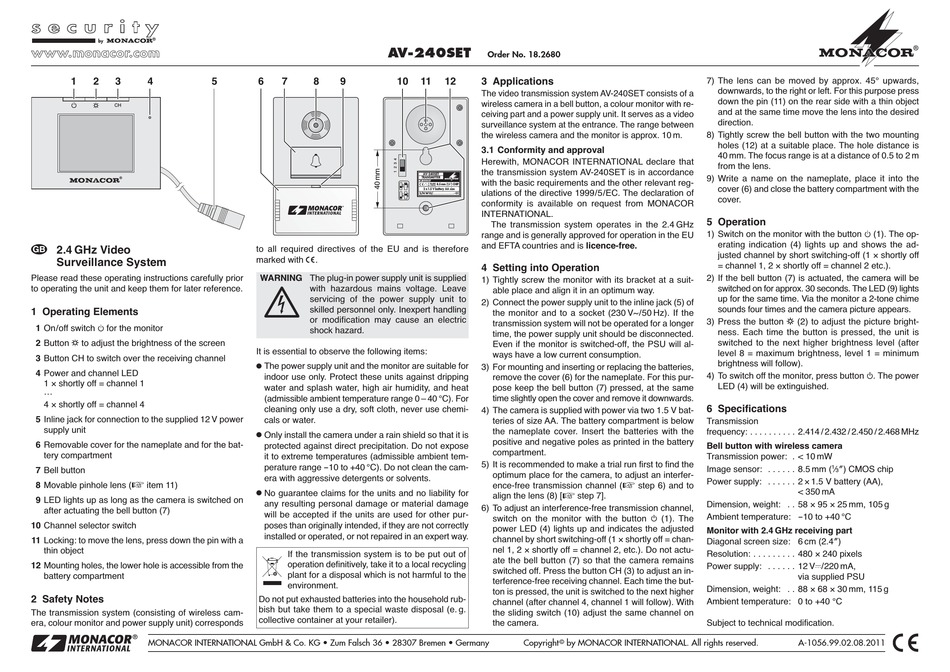

2.4 GHz Video
Surveillance System
Please read these operating instructions carefully prior
to operating the unit and keep them for later reference.
1 Operating Elements
1 On / off switch
for the monitor
2 Button
to adjust the brightness of the screen
3 Button CH to switch over the receiving channel
4 Power and channel LED
1 × shortly off = channel 1
...
4 × shortly off = channel 4
5 Inline jack for connection to the supplied 12 V power
supply unit
6 Removable cover for the nameplate and for the bat-
tery compartment
7 Bell button
8 Movable pinhole lens (
item 11)
9 LED lights up as long as the camera is switched on
after actuating the bell button (7)
10 Channel selector switch
11 Locking: to move the lens, press down the pin with a
thin object
12 Mounting holes, the lower hole is accessible from the
battery compartment
2 Safety Notes
The transmission system (consisting of wireless cam-
era, colour monitor and power supply unit) corresponds
®
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
AV-240SET
5
6
7
8
9
to all required directives of the EU and is therefore
marked with
.
WARNING The plug-in power supply unit is supplied
with hazardous mains voltage. Leave
servicing of the power supply unit to
skilled personnel only. Inexpert handling
or modification may cause an electric
shock hazard.
It is essential to observe the following items:
G
The power supply unit and the monitor are suitable for
indoor use only. Protect these units against dripping
water and splash water, high air humidity, and heat
(admissible ambient temperature range 0 – 40 °C). For
cleaning only use a dry, soft cloth, never use chemi-
cals or water.
G
Only install the camera under a rain shield so that it is
protected against direct precipitation. Do not expose
it to extreme temperatures (admissible ambient tem-
perature range -10 to +40 °C). Do not clean the cam-
era with aggressive detergents or solvents.
G
No guarantee claims for the units and no liability for
any resulting personal damage or material damage
will be accepted if the units are used for other pur-
poses than originally intended, if they are not correctly
installed or operated, or not repaired in an expert way.
If the transmission system is to be put out of
operation definitively, take it to a local recycling
plant for a disposal which is not harmful to the
environment.
Do not put exhausted batteries into the household rub-
bish but take them to a special waste disposal (e. g.
collective container at your retailer).
Order No. 18.2680
10
11
12
3 Applications
The video transmission system AV-240SET consists of a
wireless camera in a bell button, a colour monitor with re-
ceiving part and a power supply unit. It serves as a video
surveillance system at the entrance. The range between
the wireless camera and the monitor is approx. 10 m.
3.1 Conformity and approval
Herewith, MONACOR INTERNATIONAL declare that
the transmission system AV-240SET is in accordance
AV-240SET
TRANSMITTER
with the basic requirements and the other relevant reg-
8.5 mm (
/
1
3 "
) CHIP
2 x 1.5 V battery AA size
ulations of the directive 1999 / 5 / EC. The declaration of
S/N W10/ . . . . . . . . . . . . . .- 01
conformity is available on request from MONACOR
INTERNATIONAL.
The transmission system operates in the 2.4 GHz
range and is generally approved for operation in the EU
and EFTA countries and is licence-free.
4 Setting into Operation
1) Tightly screw the monitor with its bracket at a suit-
able place and align it in an optimum way.
2) Connect the power supply unit to the inline jack (5) of
the monitor and to a socket (230 V~ / 50 Hz). If the
transmission system will not be operated for a longer
time, the power supply unit should be disconnected.
Even if the monitor is switched-off, the PSU will al-
ways have a low current consumption.
3) For mounting and inserting or replacing the batteries,
remove the cover (6) for the nameplate. For this pur-
pose keep the bell button (7) pressed, at the same
time slightly open the cover and remove it downwards.
4) The camera is supplied with power via two 1.5 V bat-
teries of size AA. The battery compartment is below
the nameplate cover. Insert the batteries with the
positive and negative poles as printed in the battery
compartment.
5) It is recommended to make a trial run first to find the
optimum place for the camera, to adjust an interfer-
ence-free transmission channel (
align the lens (8) [
6) To adjust an interference-free transmission channel,
switch on the monitor with the button
power LED (4) lights up and indicates the adjusted
channel by short switching-off (1 × shortly off = chan-
nel 1, 2 × shortly off = channel 2, etc.). Do not actu-
ate the bell button (7) so that the camera remains
switched off. Press the button CH (3) to adjust an in-
terference-free receiving channel. Each time the but-
ton is pressed, the unit is switched to the next higher
channel (after channel 4, channel 1 will follow). With
the sliding switch (10) adjust the same channel on
the camera.
Copyright
©
by MONACOR INTERNATIONAL. All rights reserved.
7) The lens can be moved by approx. 45° upwards,
downwards, to the right or left. For this purpose press
down the pin (11) on the rear side with a thin object
and at the same time move the lens into the desired
direction.
8) Tightly screw the bell button with the two mounting
holes (12) at a suitable place. The hole distance is
40 mm. The focus range is at a distance of 0.5 to 2 m
from the lens.
9) Write a name on the nameplate, place it into the
cover (6) and close the battery compartment with the
cover.
5 Operation
1) Switch on the monitor with the button
erating indication (4) lights up and shows the ad-
justed channel by short switching-off (1 × shortly off
= channel 1, 2 × shortly off = channel 2 etc.).
2) If the bell button (7) is actuated, the camera will be
switched on for approx. 30 seconds. The LED (9) lights
up for the same time. Via the monitor a 2-tone chime
sounds four times and the camera picture appears.
3) Press the button
ness. Each time the button is pressed, the unit is
switched to the next higher brightness level (after
level 8 = maximum brightness, level 1 = minimum
brightness will follow).
4) To switch off the monitor, press button . The power
LED (4) will be extinguished.
6 Specifications
Transmission
frequency: . . . . . . . . . . 2.414 / 2.432 / 2.450 / 2.468 MHz
Bell button with wireless camera
Transmission power: . < 10 mW
Image sensor: . . . . . . 8.5 mm (
Power supply: . . . . . . 2 × 1.5 V battery (AA),
step 6) and to
step 7].
Dimension, weight: . . 58 × 95 × 25 mm, 105 g
Ambient temperature: -10 to +40 °C
(1). The
Monitor with 2.4 GHz receiving part
Diagonal screen size: 6 cm (2.4")
Resolution: . . . . . . . . . 480 × 240 pixels
Power supply: . . . . . . 12 V / 220 mA,
Dimension, weight: . . 88 × 68 × 30 mm, 115 g
Ambient temperature: 0 to +40 °C
Subject to technical modification.
(1). The op-
(2) to adjust the picture bright-
1
⁄
") CMOS chip
3
< 350 mA
via supplied PSU
