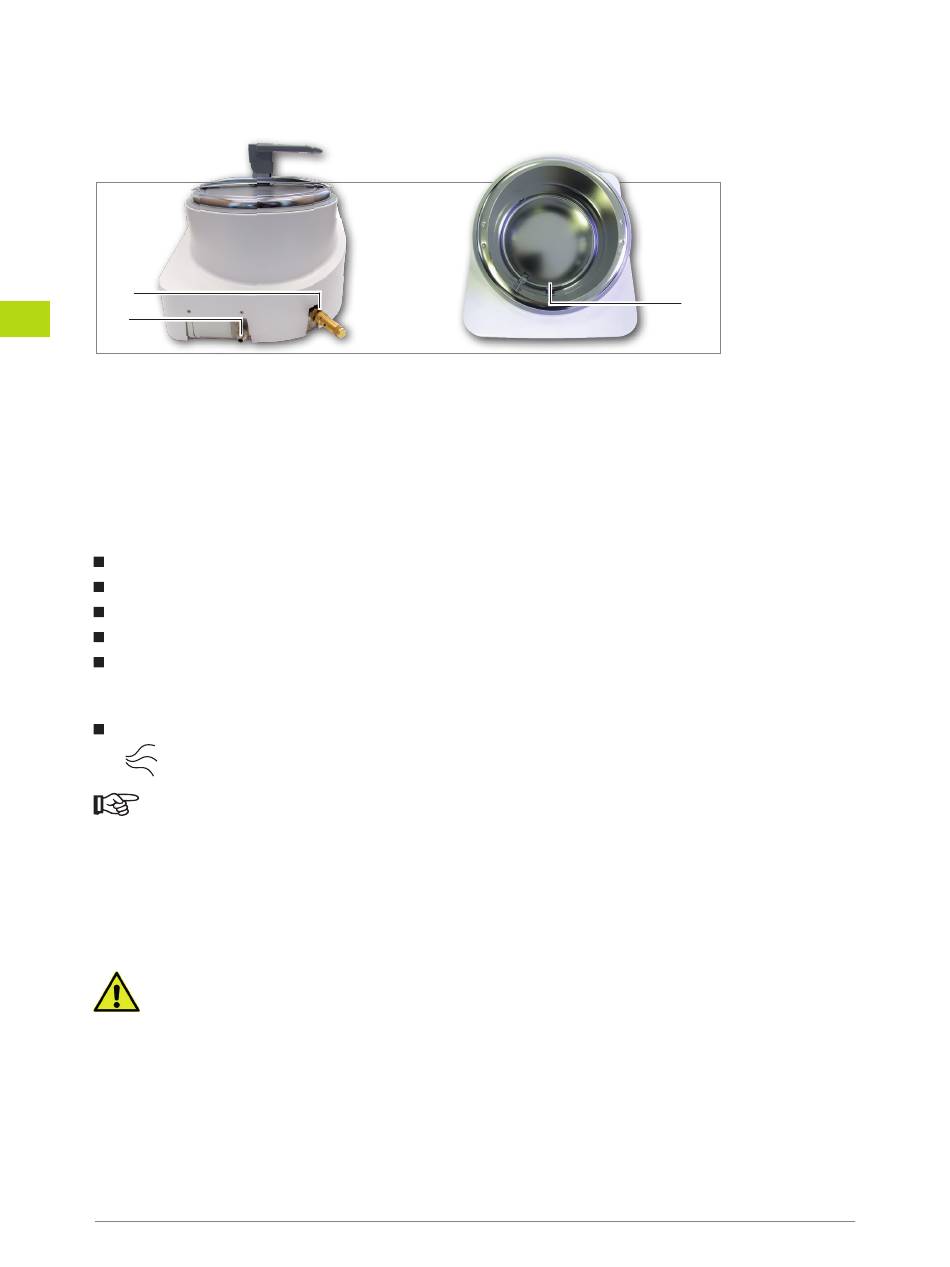

Rear view
7
GB
6
- 4 -
6)
Compressed air connection
7)
Safety valve
6
Setting up, installation and putting into operation
The device is to be mounted on a solid, non combustible surface e.g. laboratory bench (H x W x D): 450 x 315 x 550 mm
in such a manner as to achieve a secure horizontal position.
Ambient conditions:
Temperature range 0 °C (32 °F) to 40 °C (104 °F)
Relative humidity between 30 % and 75 %
Use only indoors
No direct exposure to UV light
Max. 2.000 m above sea level
Compressed air connection:
Connect to compressed air supply using the connection at the rear of the device (6).
Connection to pressure system with: 3 to 10 bar.
Maximum pressure: 10 bar.
Note!
The compressed air must be clean and dry!
Any guarantee claims shall be excluded in case of malfunctions or damage resulting from inadequate
compressed air supply! If a corresponding compressed air quality cannot be guaranteed, a cleaning filter
(e.g. compressed air cleaning filter for metallography devices, Kulzer item no. 66069985) must be connected
upstream of the Technomat.
7
Working with the Technomat
Attention!
Check the content of the shipping carton and compare with the scope of delivery described in the operating
manual (see chapter 4 scope of delivery).
Prior to operation it must be verified whether the information provided on the type plate correspond with the local
pressure supply data.
7.1
Pressure pot
After completing the polymerization process, the handle must be in a perpendicular position to open the lid. The lid can only
be removed if it has been lowered into the pot after release of pressure. To open the lid (1), locking lever must be in upright
position. Turn the lid by 90°, tilt it and remove it from the pressure pot. The lid is inserted and closed in reverse order. It must
ensured that the supporting strut of the lid fits into the grooves on the pressure pot rim.
Pressure pot (inner view)
8)
Air inlet
8
