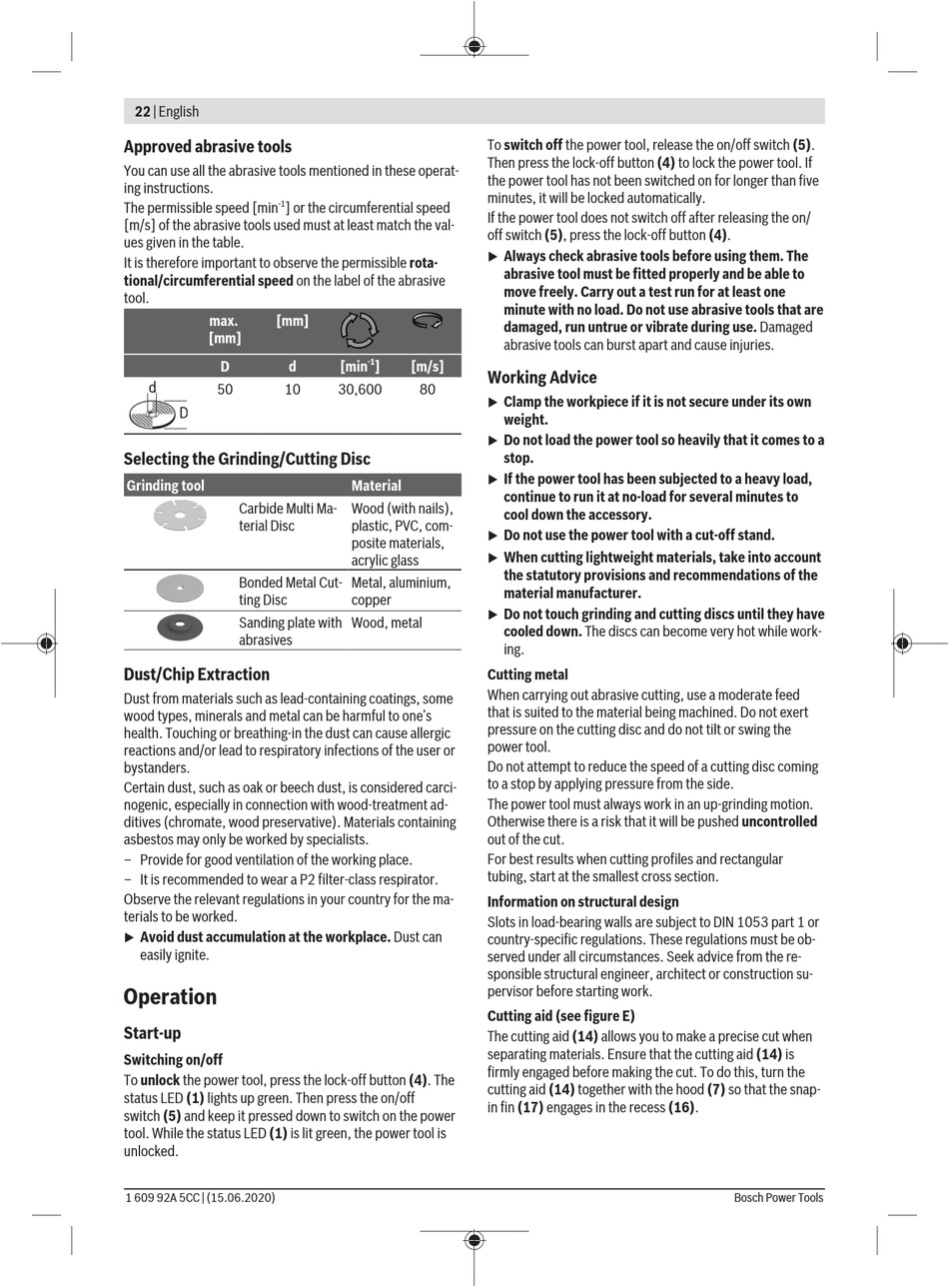

22 | English
Approved abrasive tools
You can use all the abrasive tools mentioned in these operat-
ing instructions.
-1
The permissible speed [min ] or the circumferential speed
[m/s] of the abrasive tools used must at least match the val-
ues given in the table.
It is therefore important to observe the permissible rota-
tional/circumferential speed on the label of the abrasive
tool.
max. [mm]
[mm]
D d
50 10
Selecting the Grinding/Cutting Disc
Grinding tool
Carbide Multi Ma-
terial Disc
Bonded Metal Cut-
ting Disc
Sanding plate with
abrasives

Dust/Chip Extraction

Dust from materials such as lead-containing coatings, some
wood types, minerals and metal can be harmful to one's
health. Touching or breathing-in the dust can cause allergic
reactions and/or lead to respiratory infections of the user or
bystanders.
Certain dust, such as oak or beech dust, is considered carci-
nogenic, especially in connection with wood-treatment ad-
ditives (chromate, wood preservative). Materials containing
asbestos may only be worked by specialists.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the ma-
terials to be worked.
Avoid dust accumulation at the workplace. Dust can
u
easily ignite.
Operation
Start-up
Switching on/off
To unlock the power tool, press the lock-off button (4). The
status LED (1) lights up green. Then press the on/off
switch (5) and keep it pressed down to switch on the power
tool. While the status LED (1) is lit green, the power tool is
unlocked.
1 609 92A 5CC | (15.06.2020)
To switch off the power tool, release the on/off switch (5).
Then press the lock-off button (4) to lock the power tool. If
the power tool has not been switched on for longer than five
minutes, it will be locked automatically.
If the power tool does not switch off after releasing the on/
off switch (5), press the lock-off button (4).
Always check abrasive tools before using them. The
u
abrasive tool must be fitted properly and be able to
move freely. Carry out a test run for at least one
minute with no load. Do not use abrasive tools that are
damaged, run untrue or vibrate during use. Damaged
abrasive tools can burst apart and cause injuries.
-1
[min ] [m/s]

Working Advice

30,600 80
Clamp the workpiece if it is not secure under its own
u
weight.
Do not load the power tool so heavily that it comes to a
u
stop.
If the power tool has been subjected to a heavy load,
u
Material
continue to run it at no-load for several minutes to
Wood (with nails),
cool down the accessory.
plastic, PVC, com-
Do not use the power tool with a cut-off stand.
u
posite materials,
When cutting lightweight materials, take into account
u
acrylic glass
the statutory provisions and recommendations of the
Metal, aluminium,
material manufacturer.
copper
Do not touch grinding and cutting discs until they have
u
Wood, metal
cooled down. The discs can become very hot while work-
ing.
Cutting metal
When carrying out abrasive cutting, use a moderate feed
that is suited to the material being machined. Do not exert
pressure on the cutting disc and do not tilt or swing the
power tool.
Do not attempt to reduce the speed of a cutting disc coming
to a stop by applying pressure from the side.
The power tool must always work in an up-grinding motion.
Otherwise there is a risk that it will be pushed uncontrolled
out of the cut.
For best results when cutting profiles and rectangular
tubing, start at the smallest cross section.
Information on structural design
Slots in load-bearing walls are subject to DIN 1053 part 1 or
country-specific regulations. These regulations must be ob-
served under all circumstances. Seek advice from the re-
sponsible structural engineer, architect or construction su-
pervisor before starting work.
Cutting aid (see figure E)
The cutting aid (14) allows you to make a precise cut when
separating materials. Ensure that the cutting aid (14) is
firmly engaged before making the cut. To do this, turn the
cutting aid (14) together with the hood (7) so that the snap-
in fin (17) engages in the recess (16).
