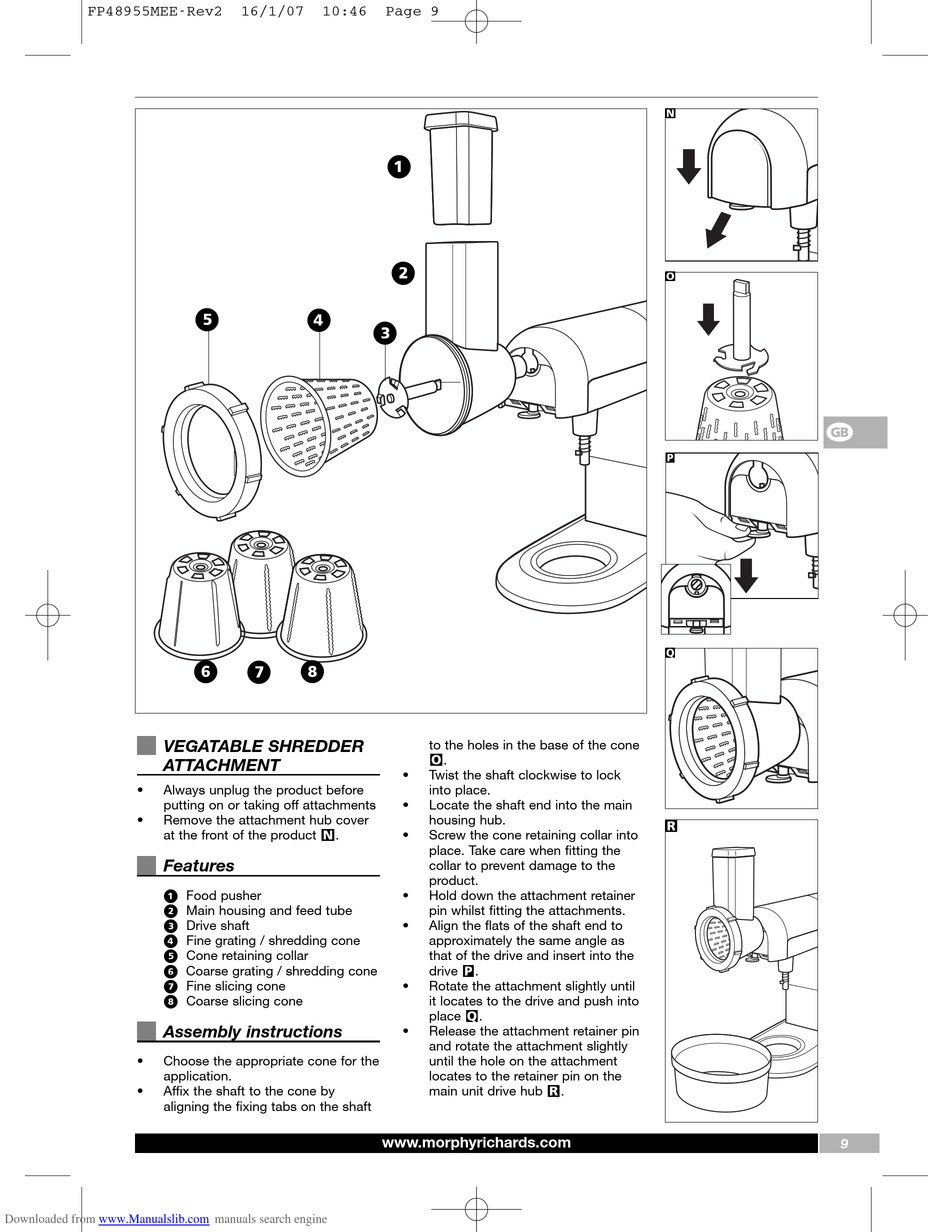

VEGATABLE SHREDDER
ATTACHMENT
• Always unplug the product before
putting on or taking off attachments
• Remove the attachment hub cover
at the front of the product N.
Features
⁄ Food pusher
¤ Main housing and feed tube
‹ Drive shaft
› Fine grating / shredding cone
fi Cone retaining collar
fl Coarse grating / shredding cone
‡ Fine slicing cone
· Coarse slicing cone
Assembly instructions
• Choose the appropriate cone for the
application.
• Affix the shaft to the cone by
aligning the fixing tabs on the shaft
Downloaded from www.Manualslib.com
16/1/07 10:46
fi
›
‹
·
fl ‡
manuals search engine
Page 9
⁄
¤
to the holes in the base of the cone
O.
• Twist the shaft clockwise to lock
into place.
• Locate the shaft end into the main
housing hub.
• Screw the cone retaining collar into
place. Take care when fitting the
collar to prevent damage to the
product.
• Hold down the attachment retainer
pin whilst fitting the attachments.
• Align the flats of the shaft end to
approximately the same angle as
that of the drive and insert into the
drive P.
• Rotate the attachment slightly until
it locates to the drive and push into
place Q.
• Release the attachment retainer pin
and rotate the attachment slightly
until the hole on the attachment
locates to the retainer pin on the
main unit drive hub R.
www.morphyrichards.com
N
O
g
P
Q
R
