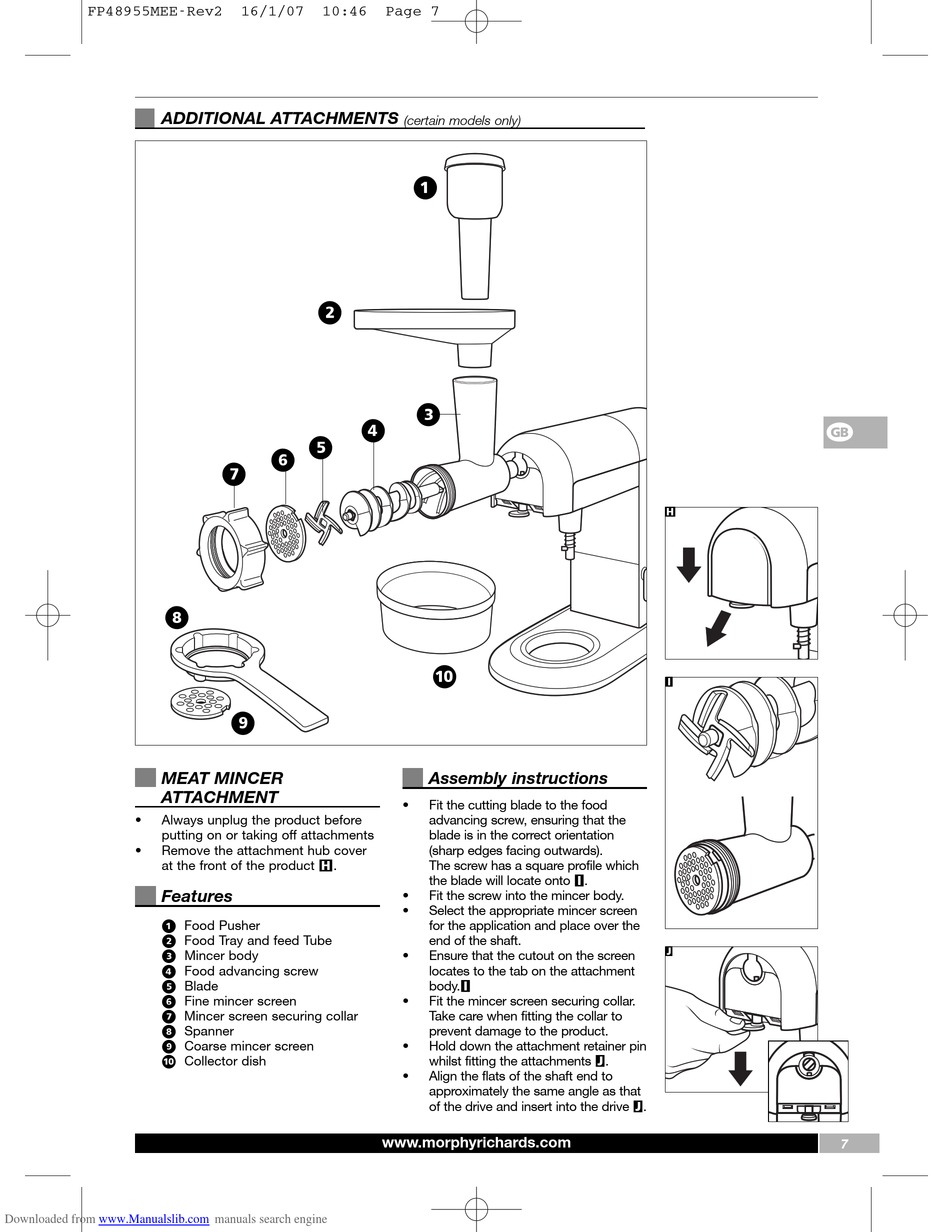

ADDITIONAL ATTACHMENTS
·
MEAT MINCER
ATTACHMENT
• Always unplug the product before
putting on or taking off attachments
• Remove the attachment hub cover
at the front of the product H.
Features
⁄ Food Pusher
¤ Food Tray and feed Tube
‹ Mincer body
› Food advancing screw
fi Blade
fl Fine mincer screen
‡ Mincer screen securing collar
· Spanner
‚ Coarse mincer screen
„ Collector dish
