CONNECTIONS, CONTROLS AND INDICATORS

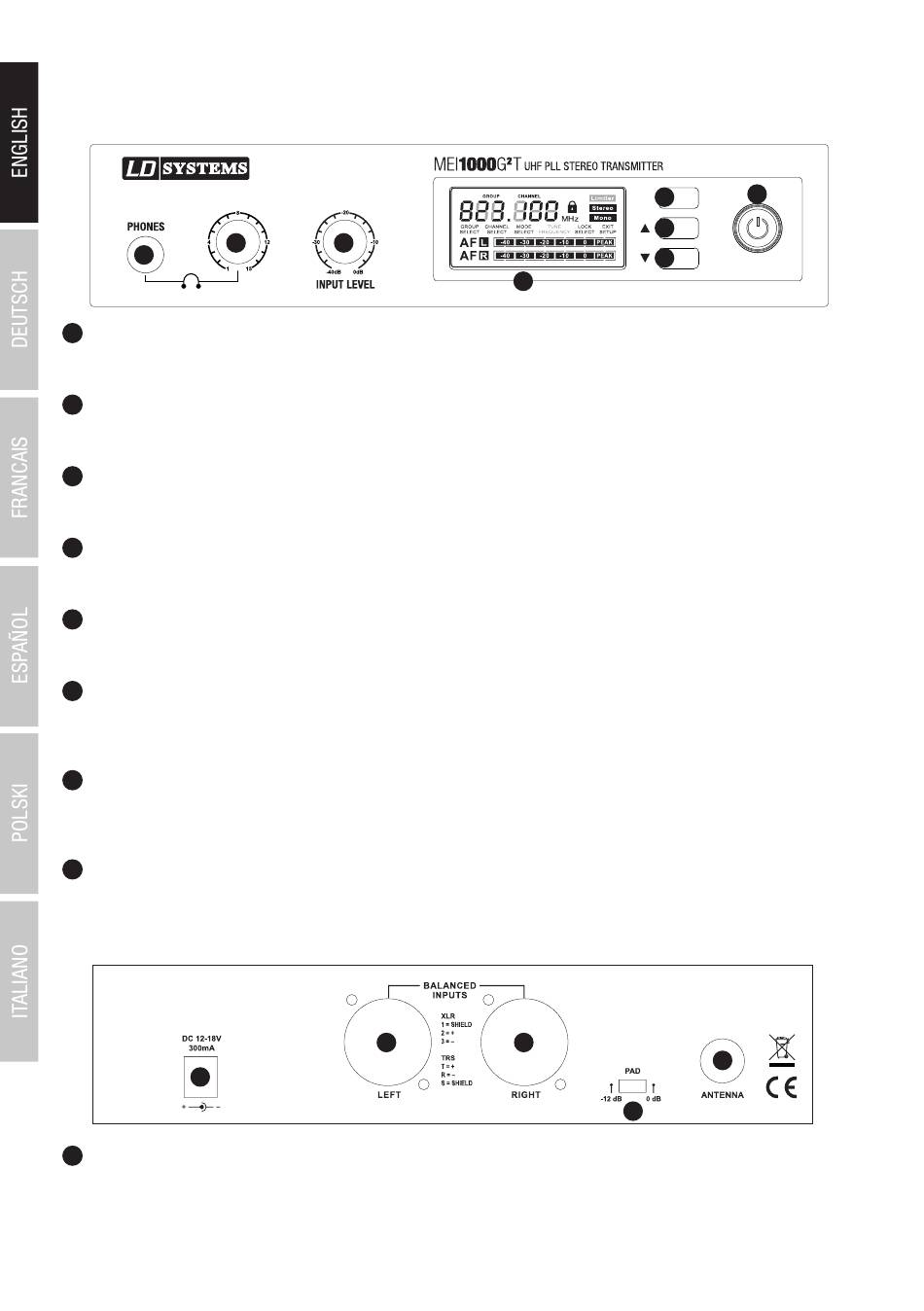

FRONT PANEL TRANSMITTER
8
1
POWER BUTTON
Switch on: Press and hold button for two seconds. Switch off: Press and hold button for two seconds.
2
ARROW UP, INCREASE VALUE
See "System setup".
3
ARROW DOWN, DECREASE VALUE
See "System setup".
4
PROGRAMMING BUTTON (SET)
See "System setup".
5
LC DISPLAY
See "System setup".
6
INPUT LEVEL
Adjust the input sensitivity. In order to achieve an optimal signal to noise ratio, bring the input signal as close as possible to the 0dB indicator (level
indicator AF L and AF R in the display), without exceeding the distortion limit (PEAK segment in the level meter).
7
HEADPHONE VOLUME CONTROL
Turning the knob to the left decreases the volume; turning it to the right increases the volume. To avoid hearing damage, set the volume to minimum
before using the earphones/headphones, then slowly increase the volume. Caution: high volume can cause permanent hearing damage.
8
PHONES
Headphone output connector 6.3 mm stereo jack.
REAR PANEL TRANSMITTER
1
1
LOW VOLTAGE CONNECTOR
Power supply connector for 12 - 18V DC (included).
6
7 6
2
4
SET
3
2
5
SET
2
3
1
POWER
POWER
4
