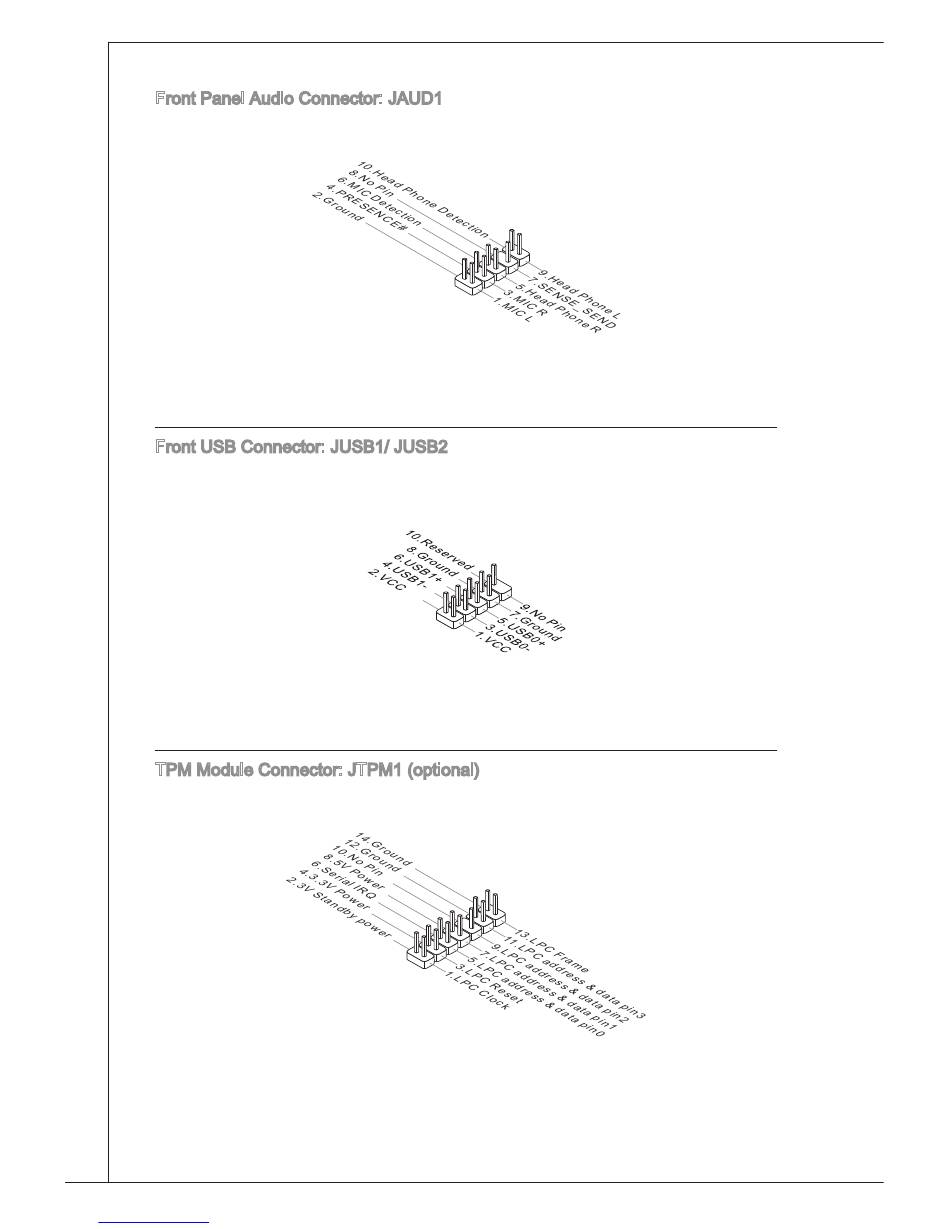

Front Panel audio Connector: Jaud
this connector allows you to connect the front panel audio and is compliant with
intel
Front uSB Connector: JuSB/ JuSB2
this connector, compliant with intel
connecting high-speed uSB interface peripherals such as uSB Hdd, digital cam-
eras, MP3 players, printers, modems and the like.
tPM Module Connector: JtPM (optional)
this connector connects to a tPM (trusted Platform Module) module. Please re-
fer to the tPM security platform manual for more details and usages.
8
