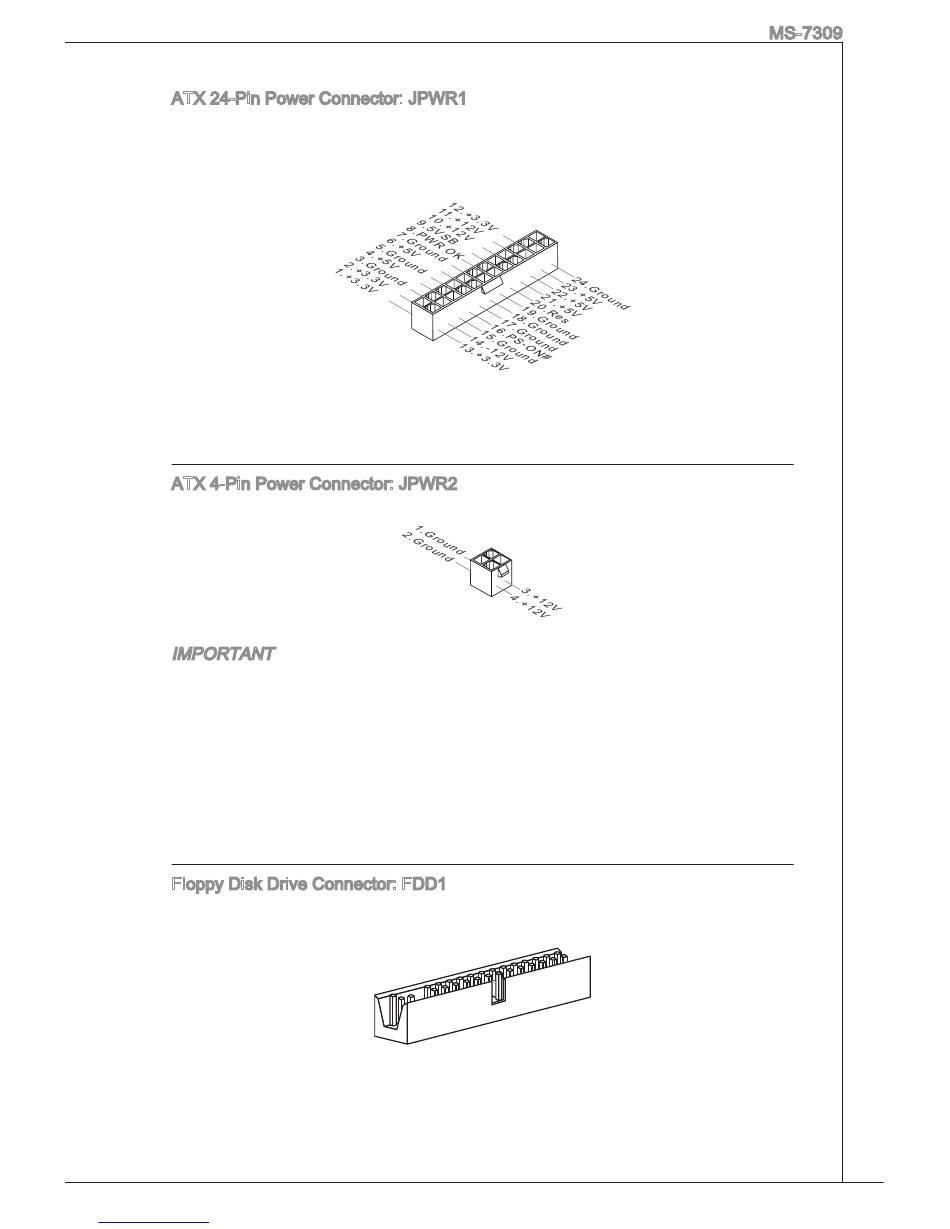

atX 24-Pin Power Connector: JPWR
this connector allows you to connect an atX 24-pin power supply. to connect the
atX 24-pin power supply, make sure the plug of the power supply is inserted in
the proper orientation and the pins are aligned. then push down the power supply
firmly into the connector.
atX 4-Pin Power Connector: JPWR2
this 2V power connector is used to provide power to the CPu.
iMPoRtant
*
*
Floppy disk drive Connector: Fdd
this connector supports 360 kB, 720 kB, .2 MB, .44 MB or 2.88 MB floppy
disk drive.
Downloaded from www.Manualslib.com
Make sure that all the connectors are connected to proper atX power supplies
to ensure stable operation of the mainboard.
Power supply of 350 watts (and above) is highly recommended for system sta-
bility.
