Eizo FlexScan S2233W Benutzerhandbuch Seite 43

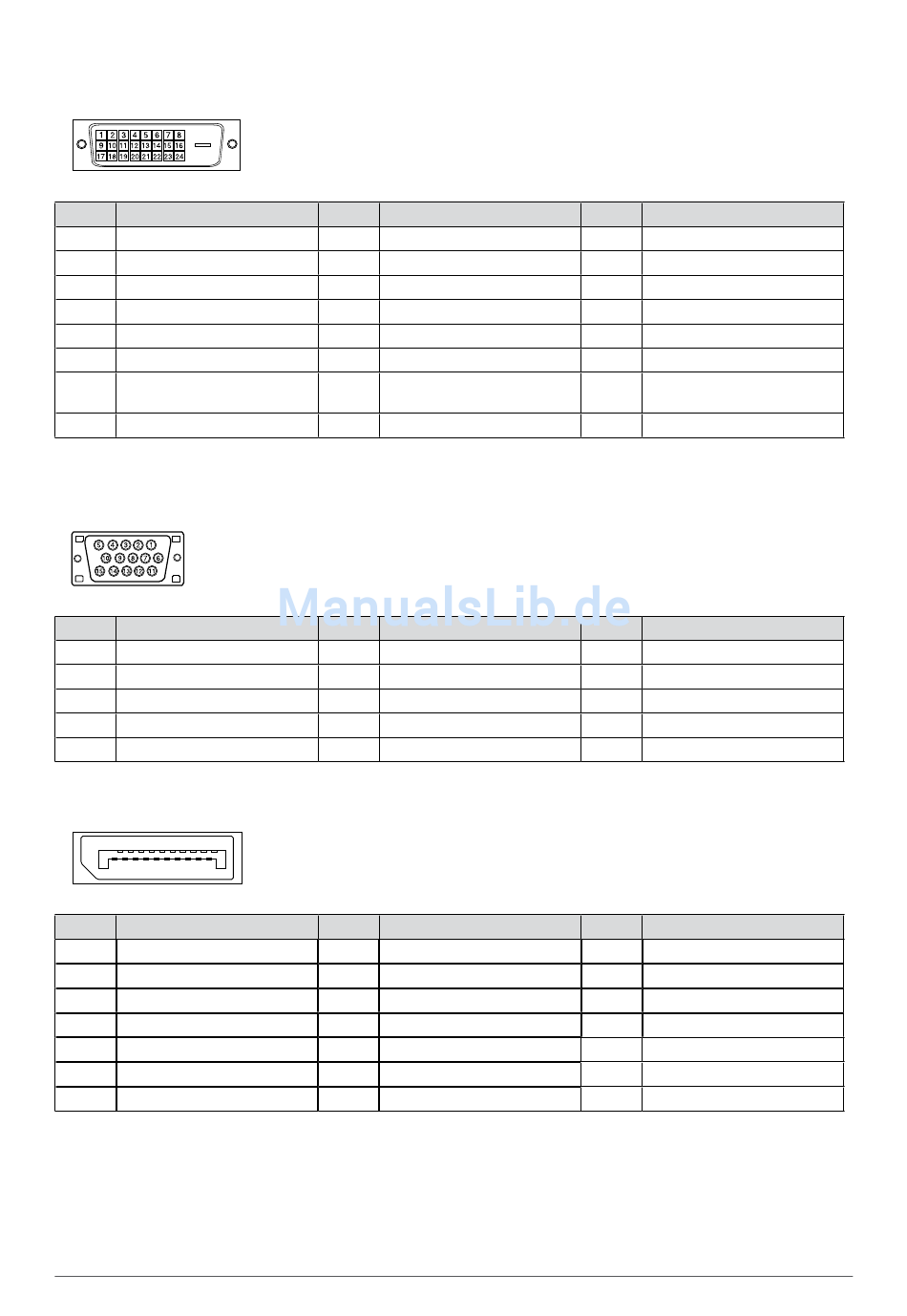

Pin-Belegung
• DVI-D-Anschluss
Pin-Nr. Signal
T.M.D.S. Data 2-
1
T.M.D.S. Data 2+
2
T.M.D.S. Data2/4 Shield
3
4 NC*
5 NC*
6 DDC Clock (SCL)
7 DDC Data (SDA)
8 NC*
• 15-poliger Mini-D-Sub-Anschluss
Pin-Nr. Signal
Red video
1
Green video
2
Blue video
3
4 NC*
5 Ground
• DisplayPort-Anschluss
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
Pin-Nr. Signal
1
ML Lane3-
2
Ground
3
ML Lane3+
4
ML Lane2-
5
Ground
6
ML Lane2+
7
ML Lane1-
Pin-Nr. Signal
T.M.D.S. Data1-
9
T.M.D.S. Data1+
10
T.M.D.S. Data1/3 Shield
11
12 NC*
13 NC*
14 +5V Power
15 Ground (return for +5V,
Hsync, and Vsync)
16 Hot Plug Detect
Pin-Nr. Signal
Red video ground
6
Green video ground
7
Blue video ground
8
9 NC*
10 Ground
Pin-Nr. Signal
8
Ground
9
ML Lane1+
10
ML Lane0-
11
Ground
12
ML Lane0+
CONFIG1
13
CONFIG2
14
Pin-Nr. Signal
T.M.D.S. Data0-
17
T.M.D.S. Data0+
18
T.M.D.S. Data0/5 Shield
19
20 NC*
21 NC*
T.M.D.S. Clock shield
22
T.M.D.S. Clock+
23
T.M.D.S. Clock-
24
(NC*: Keine Verbindung)
Pin-Nr. Signal
11 NC*
12 Data (SDA)
H. Sync
13
V. Sync
14
15 Clock (SCL)
(NC*: Keine Verbindung)
Pin-Nr. Signal
15
AUX CH+
16
Ground
17
AUX CH-
18
Hot Plug Detect
19
Return
20
DP PWR
Kapitel 5 Referenz
