4.2 Overview

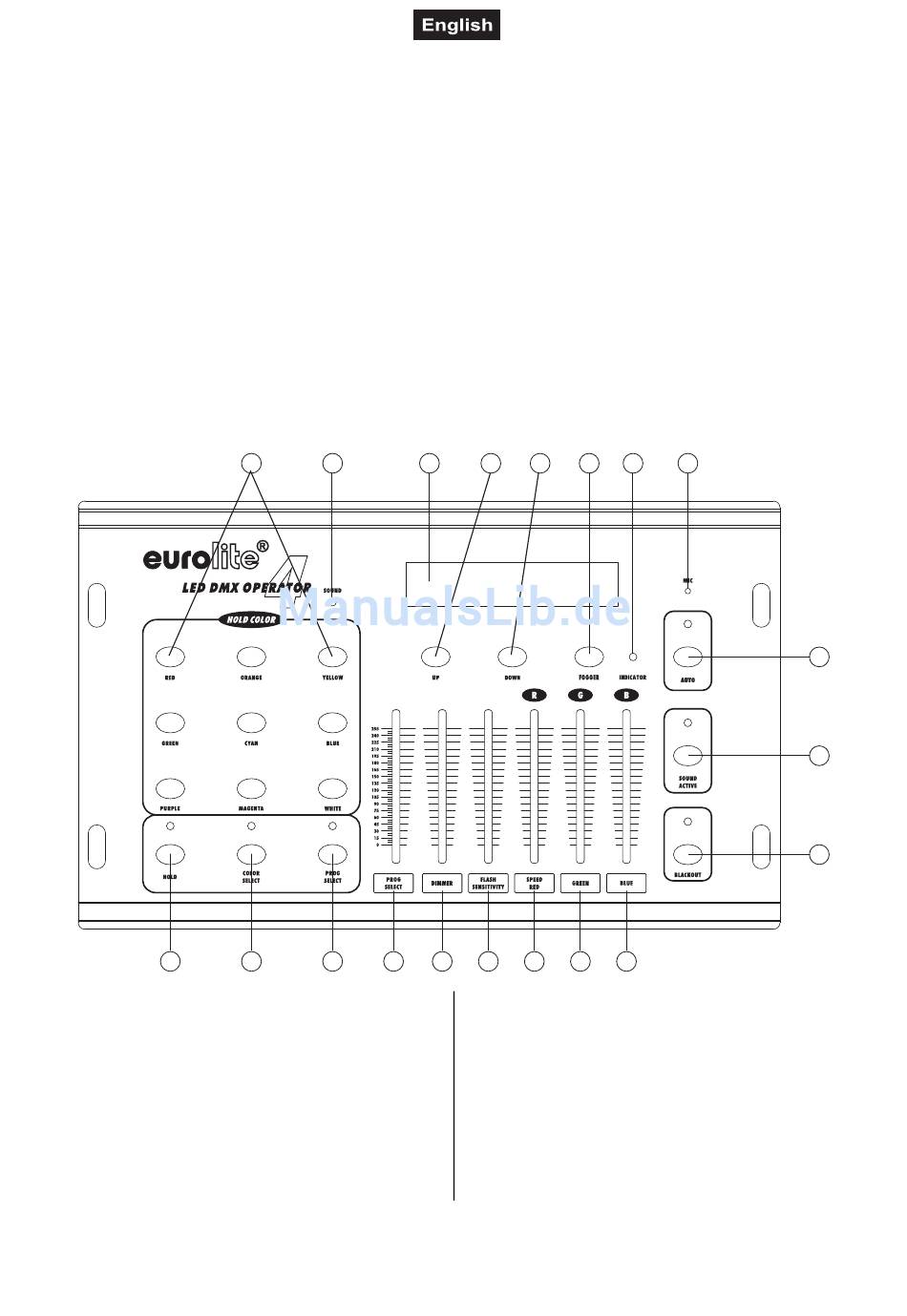

Overview of the control elements
12
1. Color-buttons für SELECT-COLOR MODE
2. Sound LED
3. Display
4. Up button
5. Down button
6. Fogger button
7. Indicator LED
8. Microphone
9. AUTO Button
10. SOUND CONTROL Button
11. BLACKOUT- Button
1 2
13 14 15
3 4 5 6
16 17 18 19
12. HOLD button
13. SELECT-COLOR MODE Button
14. PROGRAM SELECT MODE Button
15. PROGRAM SELECT channel fader
16. Dimmer fader
17. FLASH FREQUENCY/SENSITIVITY channel
fader
18. SPEED / RED channel fader
19. Green fader
20. Blue fader
12/15
7 8
20
