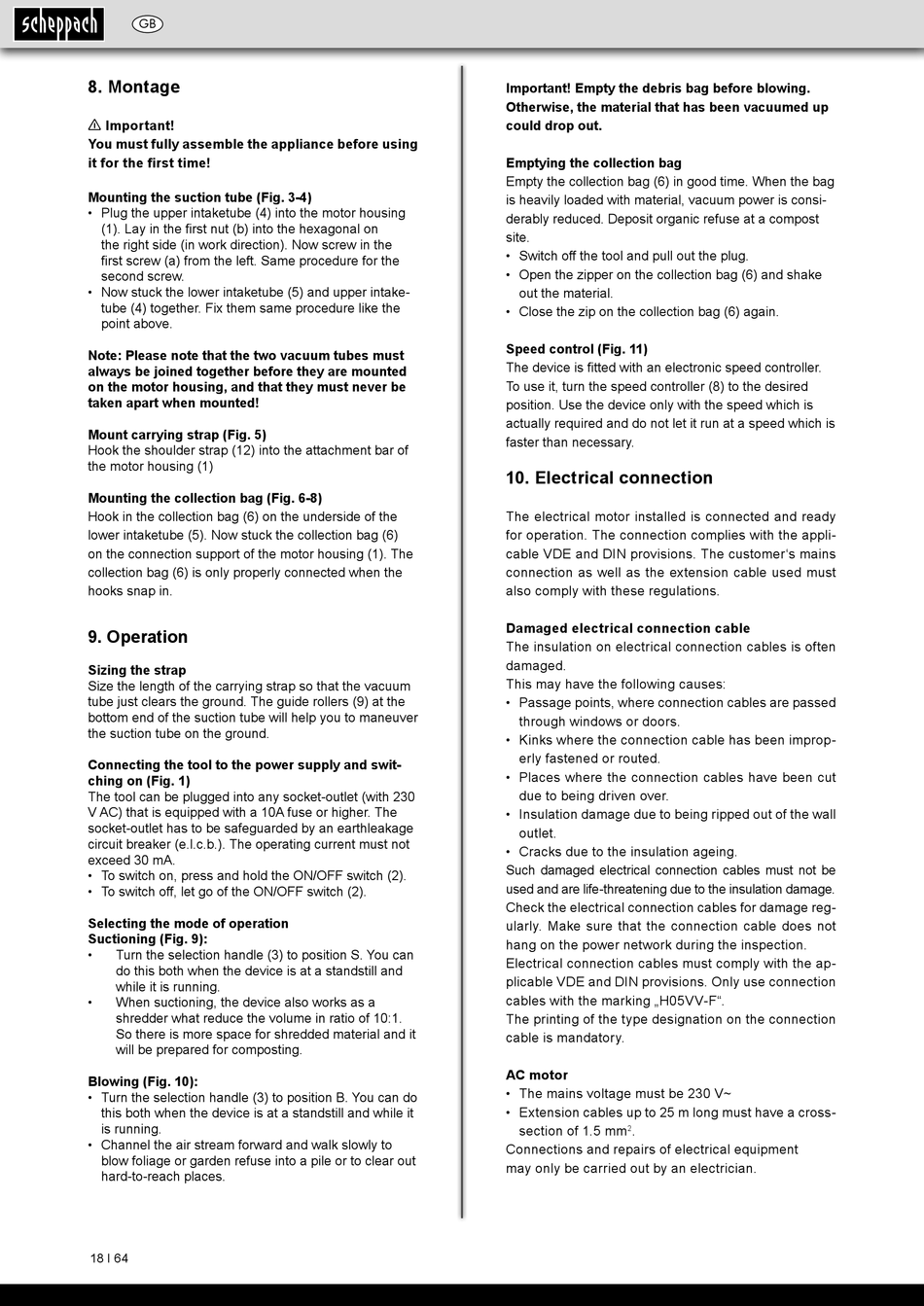

8. Montage

n
Important!
You must fully assemble the appliance before using
it for the first time!
Mounting the suction tube (Fig. 3-4)
• Plug the upper intaketube (4) into the motor housing
(1). Lay in the first nut (b) into the hexagonal on
the right side (in work direction). Now screw in the
first screw (a) from the left. Same procedure for the
second screw.
• Now stuck the lower intaketube (5) and upper intake-
tube (4) together. Fix them same procedure like the
point above.
Note: Please note that the two vacuum tubes must
always be joined together before they are mounted
on the motor housing, and that they must never be
taken apart when mounted!
Mount carrying strap (Fig. 5)
Hook the shoulder strap (12) into the attachment bar of
the motor housing (1)
Mounting the collection bag (Fig. 6-8)
Hook in the collection bag (6) on the underside of the
lower intaketube (5). Now stuck the collection bag (6)
on the connection support of the motor housing (1). The
collection bag (6) is only properly connected when the
hooks snap in.
9. Operation
Sizing the strap
Size the length of the carrying strap so that the vacuum
tube just clears the ground. The guide rollers (9) at the
bottom end of the suction tube will help you to maneuver
the suction tube on the ground.
Connecting the tool to the power supply and swit-
ching on (Fig. 1)
The tool can be plugged into any socket-outlet (with 230
V AC) that is equipped with a 10A fuse or higher. The
socket-outlet has to be safeguarded by an earthleakage
circuit breaker (e.l.c.b.). The operating current must not
exceed 30 mA.
• To switch on, press and hold the ON/OFF switch (2).
• To switch off, let go of the ON/OFF switch (2).
Selecting the mode of operation
Suctioning (Fig. 9):
• Turn the selection handle (3) to position S. You can
do this both when the device is at a standstill and
while it is running.
• When suctioning, the device also works as a
shredder what reduce the volume in ratio of 10:1.
So there is more space for shredded material and it
will be prepared for composting.
Blowing (Fig. 10):
• Turn the selection handle (3) to position B. You can do
this both when the device is at a standstill and while it
is running.
• Channel the air stream forward and walk slowly to
blow foliage or garden refuse into a pile or to clear out
hard-to-reach places.
18 І 64
Important! Empty the debris bag before blowing.
Otherwise, the material that has been vacuumed up
could drop out.
Emptying the collection bag
Empty the collection bag (6) in good time. When the bag
is heavily loaded with material, vacuum power is consi-
derably reduced. Deposit organic refuse at a compost
site.
• Switch off the tool and pull out the plug.
• Open the zipper on the collection bag (6) and shake
out the material.
• Close the zip on the collection bag (6) again.
Speed control (Fig. 11)
The device is fitted with an electronic speed controller.
To use it, turn the speed controller (8) to the desired
position. Use the device only with the speed which is
actually required and do not let it run at a speed which is
faster than necessary.

10. Electrical connection

The electrical motor installed is connected and ready
for operation. The connection complies with the appli-
cable VDE and DIN provisions. The customer's mains
connection as well as the extension cable used must
also comply with these regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Passage points, where connection cables are passed
through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not be
used and are life-threatening due to the insulation damage.
Check the electrical connection cables for damage reg-
ularly. Make sure that the connection cable does not
hang on the power network during the inspection.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the marking „H05VV-F".
The printing of the type designation on the connection
cable is mandatory.
AC motor
• The mains voltage must be 230 V~
• Extension cables up to 25 m long must have a cross-
section of 1.5 mm .
2
Connections and repairs of electrical equipment
may only be carried out by an electrician.
