Quick installation guide IB-183WP-C31
1. Installation / Einbau
1. Connect the IB-183WP-C31 via the delivered cable to the corresponding
port of your host computer.
1. Verbinden Sie die IB-183WP-C31 mittels des beiliegenden Kabels mit dem
entsprechenden Anschluss Ihres Computers.
•

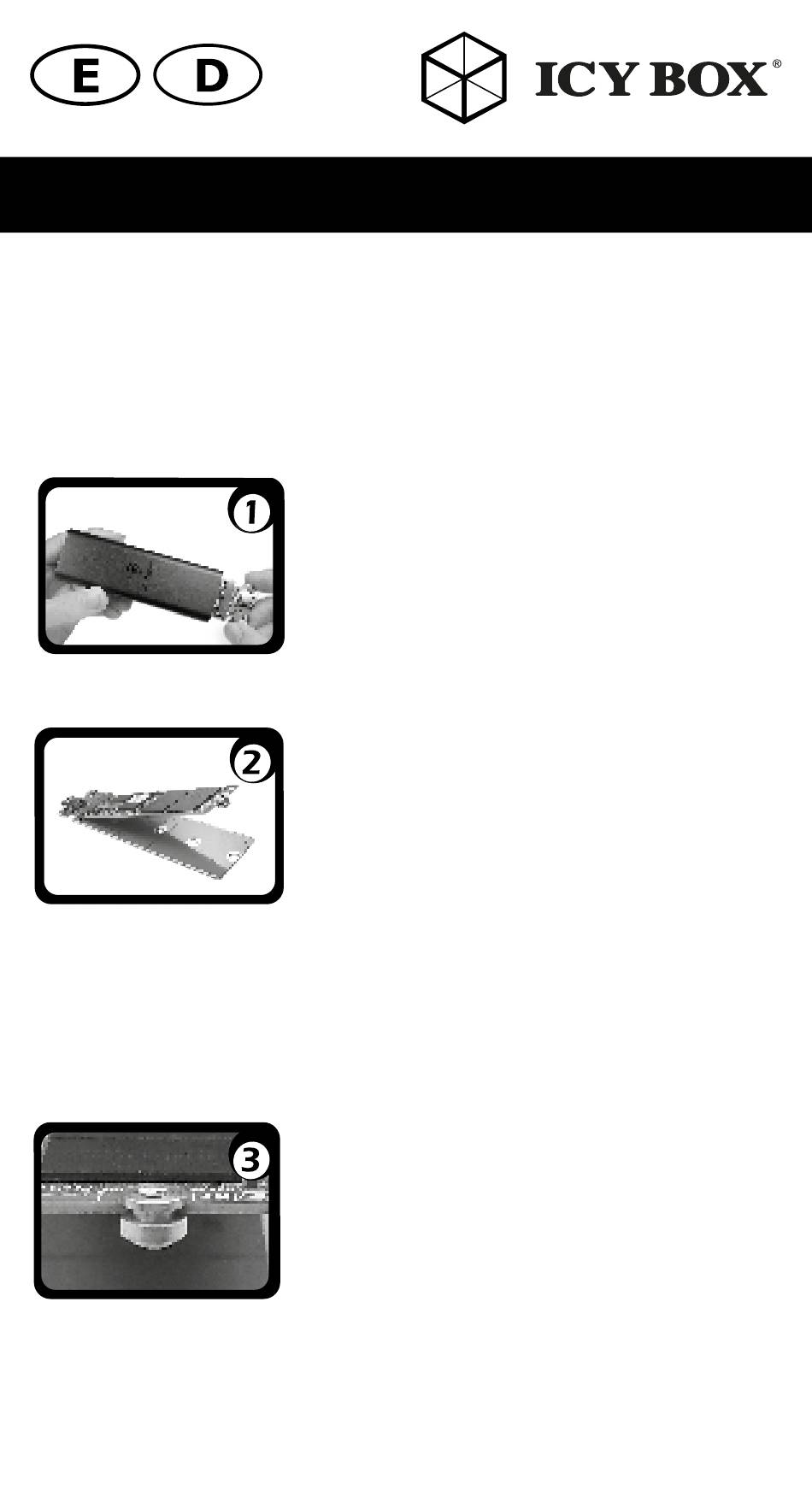

Carefully pull the PCB out of the housing
•
Ziehen Sie die Platine vorsichtig aus dem
Gehäuse.
•
Carefully place your SSD with the
connection side into the M.2 socket at an
angle of approximately 30° so that it fits
without resistance. Then gently push the
SSD down.
•
Platzieren Sie Ihre SSD vorsichtig mit der
Anschlussseite in die M.2-Buchse in einem
Winkel von ca. 30°, so dass sie sich
widerstandslos einfügt. Drücken Sie dann
die SSD vorsichtig nach unten.
•
Combine the circular notch of the round
M.2 holder with the semi-circular notch of
the M.2 SSD and hold it with one finger
(the thinner side upwards).
•
Setzen Sie die runde M.2 Halterung in die
halbkreisförmige Aussparung am Ende der
M.2 SSD ein und halten diese mit einem
Finger fest (dünnere Seite nach oben).
