OPERATION:

The CLCONTROL6 is a 6-channel DMX controller with which one or more DMX spotlights in a group with the
same DMX start address (001) can be operated in 6-channel mode with the same DMX signal. If the DMX
spotlights have a 3-channel mode, then two groups of spotlights can be controlled separately (group 1 = DMX
start address 001, group 2 = DMX start address 004); if they have a 2-channel mode, then three groups of
spotlights can be controlled independently (group 1 = DMX start address 001, group 2 = DMX start address 003,
and group 3 = DMX start address 005).

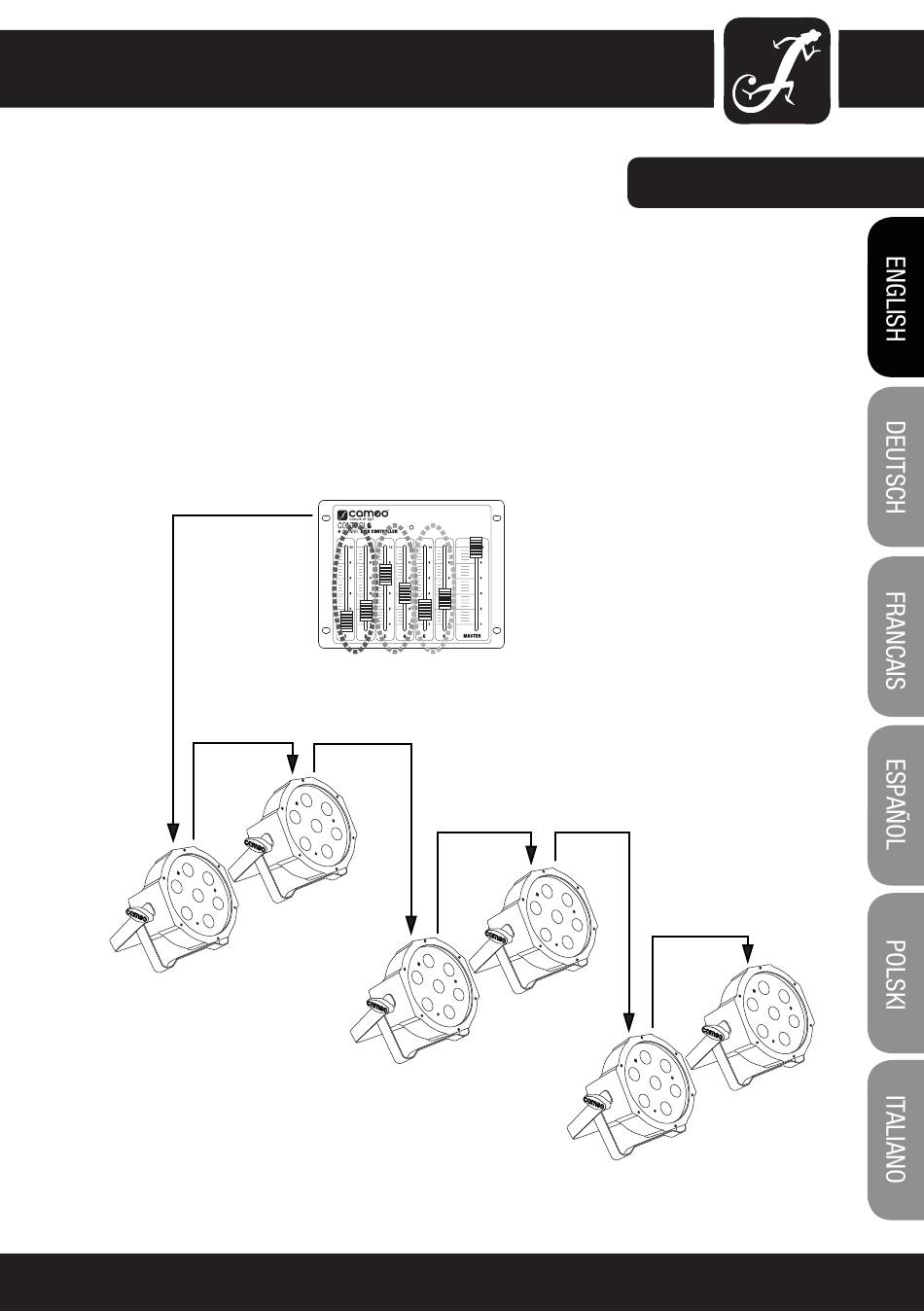

EXAMPLE OF USE:

Controlling 3 x 2 LED lights in 2-channel mode
DMX out
DMX out / DMX in DMX out / DMX in
DMX in
DMX out / DMX in DMX out / DMX in
DMX out / DMX in
DMX start address: 001
LED group 1
Controller channel: 1
and 2
DMX start address: 003
LED group 2
Controller channel: 3 and 4
DMX start address: 005
LED group 3
Controller channel: 5 and 6
