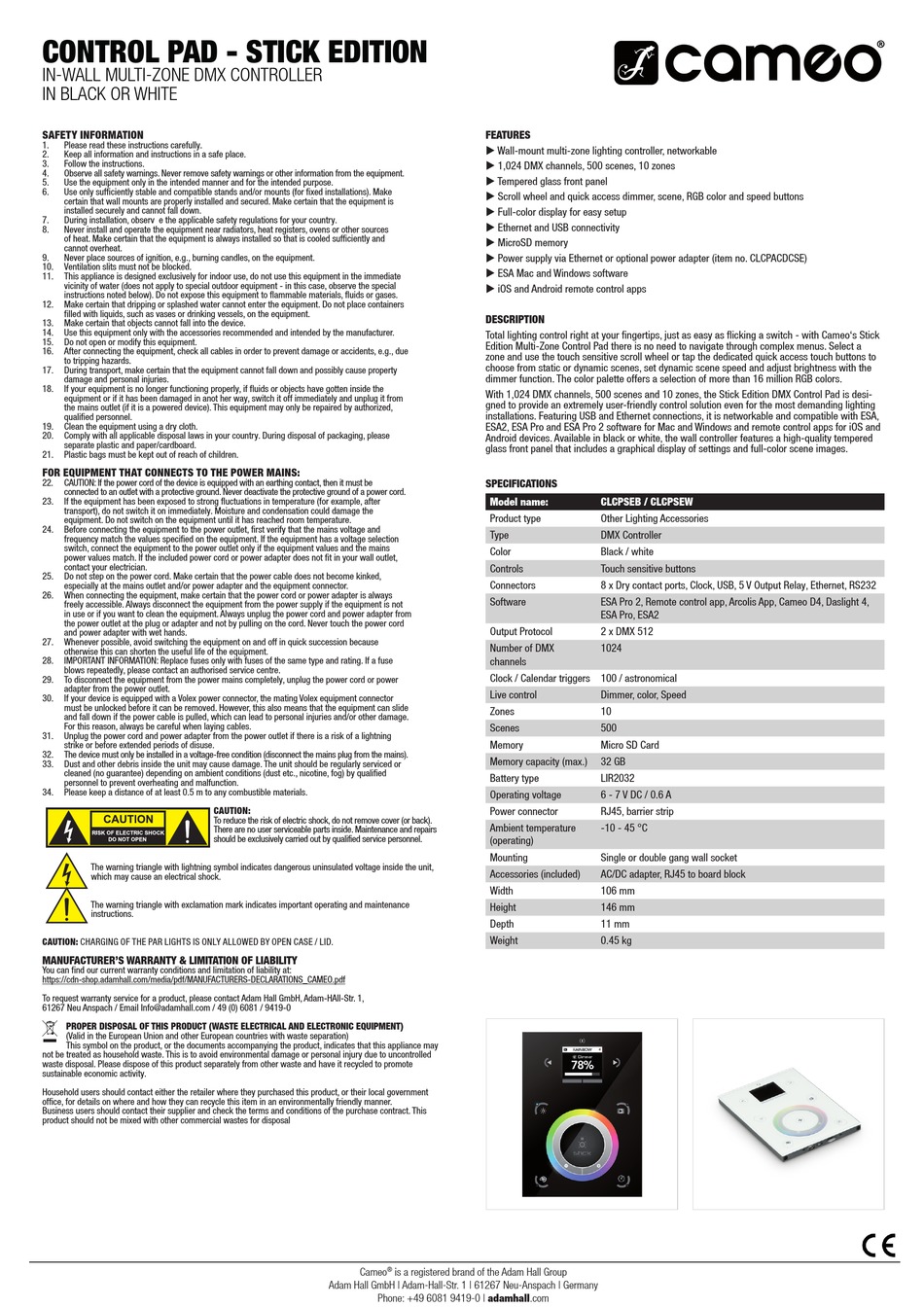

CONTROL PAD - STICK EDITION
IN-WALL MULTI-ZONE DMX CONTROLLER
IN BLACK OR WHITE
SAFETY INFORMATION
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make
certain that wall mounts are properly installed and secured. Make certain that the equipment is
installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources
of heat. Make certain that the equipment is always installed so that is cooled sufficiently and
cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate
vicinity of water (does not apply to special outdoor equipment - in this case, observe the special
instructions noted below). Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers
filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due
to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property
damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the
equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from
the mains outlet (if it is a powered device). This equipment may only be repaired by authorized,
qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please
separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:
22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be
connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
23. If the equipment has been exposed to strong fluctuations in temperature (for example, after
transport), do not switch it on immediately. Moisture and condensation could damage the
equipment. Do not switch on the equipment until it has reached room temperature.
24. Before connecting the equipment to the power outlet, first verify that the mains voltage and
frequency match the values specified on the equipment. If the equipment has a voltage selection
switch, connect the equipment to the power outlet only if the equipment values and the mains
power values match. If the included power cord or power adapter does not fit in your wall outlet,
contact your electrician.
25. Do not step on the power cord. Make certain that the power cable does not become kinked,
especially at the mains outlet and/or power adapter and the equipment connector.
26. When connecting the equipment, make certain that the power cord or power adapter is always
freely accessible. Always disconnect the equipment from the power supply if the equipment is not
in use or if you want to clean the equipment. Always unplug the power cord and power adapter from
the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord
and power adapter with wet hands.
27. Whenever possible, avoid switching the equipment on and off in quick succession because
otherwise this can shorten the useful life of the equipment.
28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse
blows repeatedly, please contact an authorised service centre.
29. To disconnect the equipment from the power mains completely, unplug the power cord or power
adapter from the power outlet.
30. If your device is equipped with a Volex power connector, the mating Volex equipment connector
must be unlocked before it can be removed. However, this also means that the equipment can slide
and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage.
For this reason, always be careful when laying cables.
31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning
strike or before extended periods of disuse.
32. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).
33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or
cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified
personnel to prevent overheating and malfunction.
34. Please keep a distance of at least 0.5 m to any combustible materials.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back).
There are no user serviceable parts inside. Maintenance and repairs
should be exclusively carried out by qualified service personnel.
The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit,
which may cause an electrical shock.
The warning triangle with exclamation mark indicates important operating and maintenance
instructions.
CAUTION: CHARGING OF THE PAR LIGHTS IS ONLY ALLOWED BY OPEN CASE / LID.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_CAMEO.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Adam-HAll-Str. 1,
61267 Neu Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may
not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal
FEATURES
 Wall-mount multi-zone lighting controller, networkable
 1,024 DMX channels, 500 scenes, 10 zones
 Tempered glass front panel
 Scroll wheel and quick access dimmer, scene, RGB color and speed buttons
 Full-color display for easy setup
 Ethernet and USB connectivity
 MicroSD memory
 Power supply via Ethernet or optional power adapter (item no. CLCPACDCSE)
 ESA Mac and Windows software
 iOS and Android remote control apps
DESCRIPTION
Total lighting control right at your fingertips, just as easy as flicking a switch - with Cameo's Stick
Edition Multi-Zone Control Pad there is no need to navigate through complex menus. Select a
zone and use the touch sensitive scroll wheel or tap the dedicated quick access touch buttons to
choose from static or dynamic scenes, set dynamic scene speed and adjust brightness with the
dimmer function. The color palette offers a selection of more than 16 million RGB colors.
With 1,024 DMX channels, 500 scenes and 10 zones, the Stick Edition DMX Control Pad is desi-
gned to provide an extremely user-friendly control solution even for the most demanding lighting
installations. Featuring USB and Ethernet connections, it is networkable and compatible with ESA,
ESA2, ESA Pro and ESA Pro 2 software for Mac and Windows and remote control apps for iOS and
Android devices. Available in black or white, the wall controller features a high-quality tempered
glass front panel that includes a graphical display of settings and full-color scene images.
SPECIFICATIONS
Model name:
Product type
Type
Color
Controls
Connectors
Software
Output Protocol
Number of DMX
channels
Clock / Calendar triggers 100 / astronomical
Live control
Zones
Scenes
Memory
Memory capacity (max.)
Battery type
Operating voltage
Power connector
Ambient temperature
(operating)
Mounting
Accessories (included)
Width
Height
Depth
Weight
Cameo ® is a registered brand of the Adam Hall Group
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Phone: +49 6081 9419-0 | adamhall.com
CLCPSEB / CLCPSEW
Other Lighting Accessories
DMX Controller
Black / white
Touch sensitive buttons
8 x Dry contact ports, Clock, USB, 5 V Output Relay, Ethernet, RS232
ESA Pro 2, Remote control app, Arcolis App, Cameo D4, Daslight 4,
ESA Pro, ESA2
2 x DMX 512
1024
Dimmer, color, Speed
10
500
Micro SD Card
32 GB
LIR2032
6 - 7 V DC / 0.6 A
RJ45, barrier strip
-10 - 45 °C
Single or double gang wall socket
AC/DC adapter, RJ45 to board block
106 mm
146 mm
11 mm
0.45 kg
