Outdoor

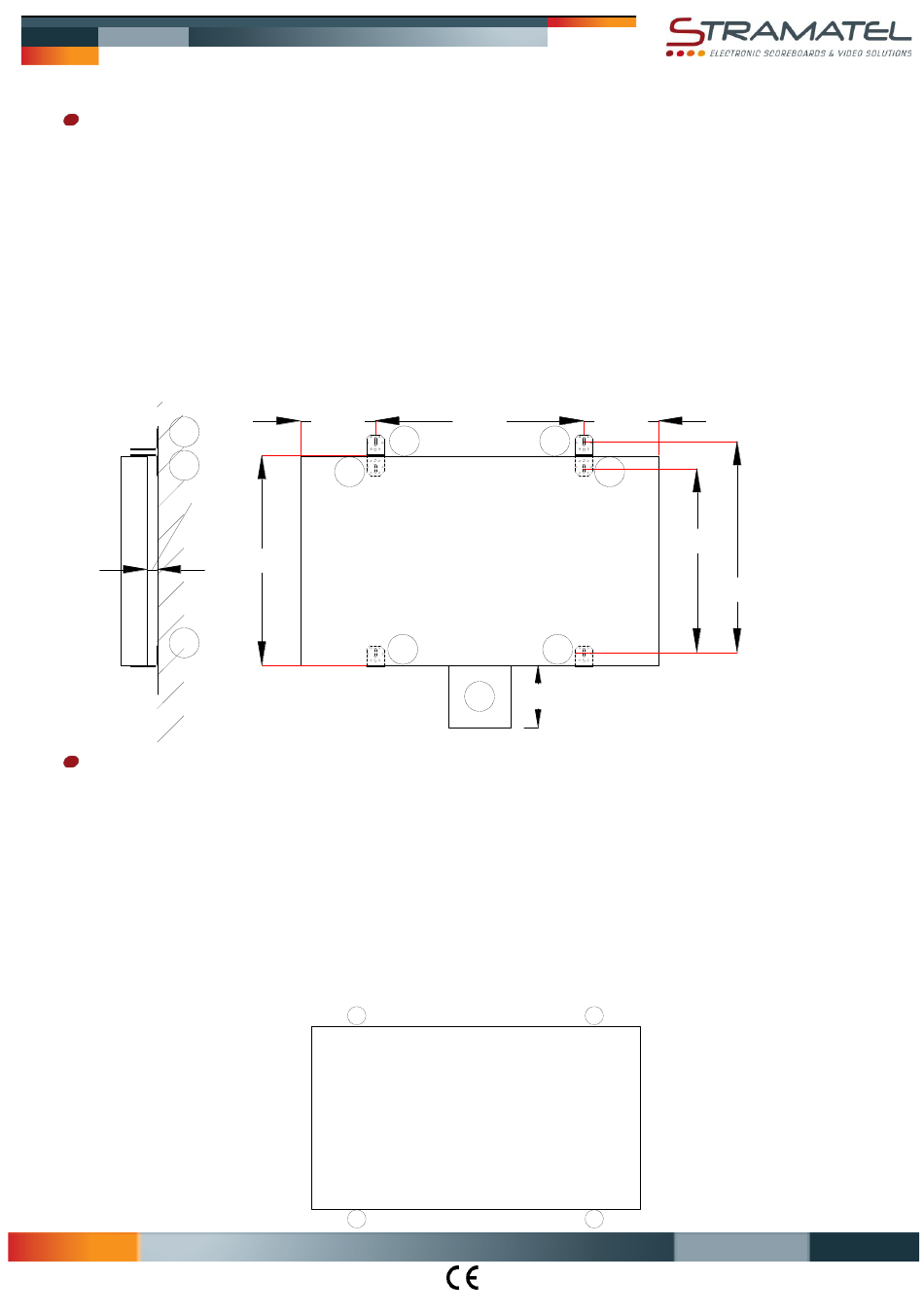

Installation on on a wall or on a support frame - Before installation (for each
display unit)
The electronic elements controlling the luminous display are mounted on extractable racks (R). In order to be able to carry out
any maintenance, a clear space of at least 30 cm is necessary for the extraction of the racks. Attention: installation must be
performed by qualified staff.
4 angle brackets are supplied to install the scoreboard (on a wall or on a support frame).
For aesthetic reasons, it is preferable to install the 2 top angle brackets with angle behind the scoreboard, see setting (F).
But to make the installation easier, the top angle brackets can also be installed with angle above the scoreboard, see setting
(F').
Draw the position of the mounting points (F) or (F') onto the wall or onto the support frame according the dimensions of the
diagram.
Fix the angle brackets with 4 Ø8mm screws onto the wall or onto the support frame.
F'
F
30
704
F
Installation on on a wall or on a support frame - Scoreboard installation (for each
display unit)
In order to make installation easier, anchor points (I) are available on the top side of the scoreboard (insert holes in aluminium
frame). Screw-rings, type M6x40 (not supplied) can be screwed into place in each hole.
Lift the scoreboard near the brackets.
If the pre-installed (electrical) supply is behind the scoreboard: turn off the electrical power, then connect the mains cable
with the pre-installed (electrical) supply (see chapter "Electrical installation" – "Mains cable"). The scoreboard must not be
connected to mains until the installation has been fully completed.
Place the scoreboard between the brackets, as close to the wall as possible.
Fix the scoreboard with the brackets by using the supplied stainless steel screws & washers Ø6mm (anchor points (I)).
ZI de Bel Air 44850 LE CELLIER FRANCE
IASCX40A-IM_F - Installation SCX40A
250 700
F'
F
F
R
I
I
stramatel@stramatel.com Tél. +33 (0)2 40 25 46 90
250
F'
F
616
F
300
I
I
707
Dimensions en mm
